- Page 1 HEX70CS-KIT User Manual RevA3 HEX70CS-KIT User Manual...
- Page 2 Do not substitute or use any other power supply other than the enclosed unit, or a Blustream approved replacement. Do not disassemble either the Transmission or Receiver units for any reason. Doing so will void the...
- Page 3 HEX70CS-KIT USER MANUAL Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ Introduction extender set offers market leading features and outstanding value utilising CSC technology. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC (PoE) up to lengths of 70m (4K 40m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

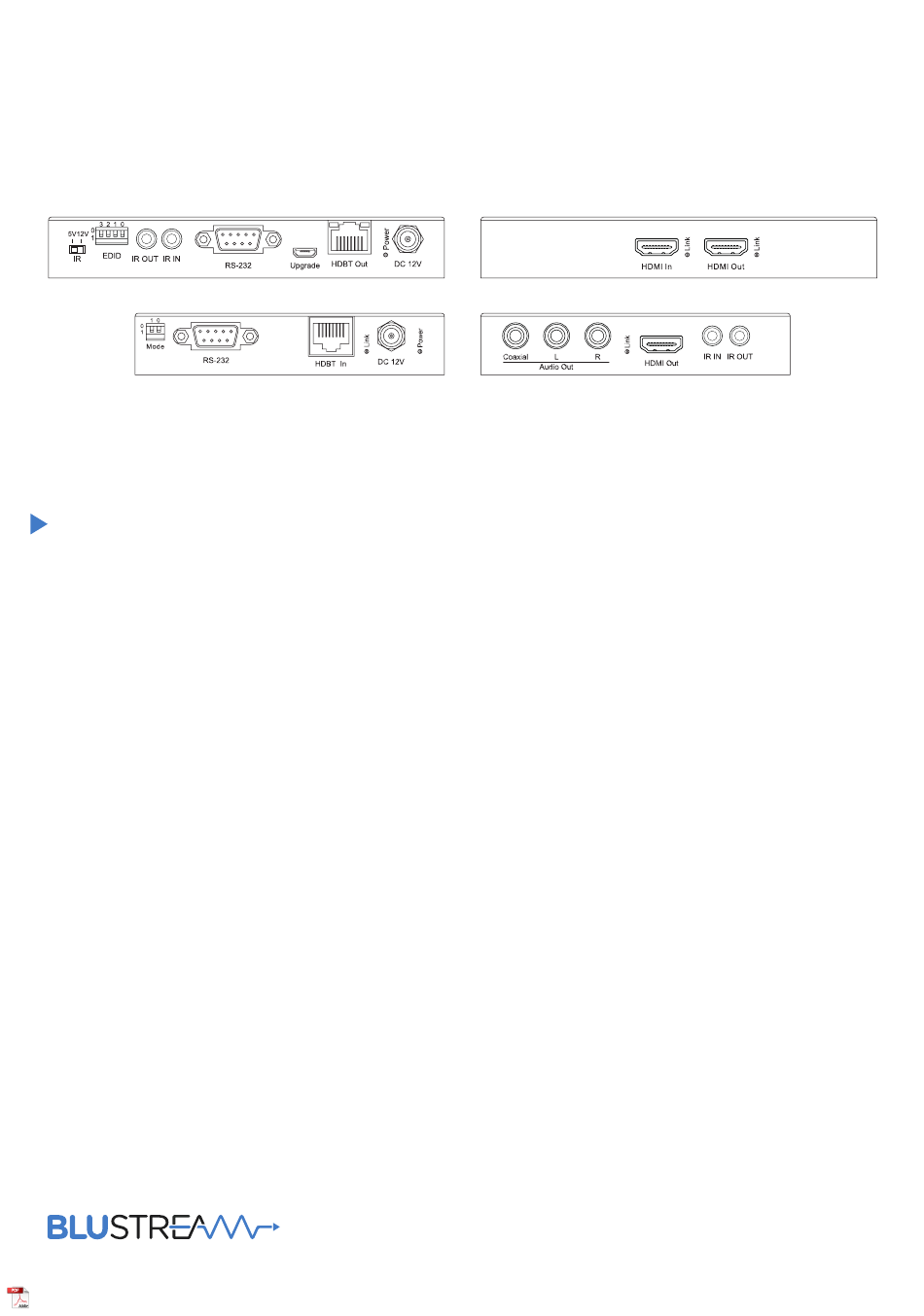

- Page 4 HDMI signal link indicator HDBaseT™ signal link indicator HDMI Output DC 12V screw type connector IR IN (to Blustream 5V 3.5mm IR receiver) Power status indicator IR OUT (to Blustream 5V 3.5mm IR emitter) Panel Description HEX70CS-TX EDID DIP switch (UP=0, DOWN=1) HDMI input IR OUT (to Blustream 5V 3.5mm IR emitter)
- Page 5 When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for your installations, especially when running over longer distances, in areas of high EMI, or with 4K signal distribution.
- Page 6 HEX70CS-KIT USER MANUAL EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display. By pre-determining the video resolution and audio format of the source and display device you can reduce the time needed for EDID hand shaking thus making switching quicker and more reliable.
- Page 7 The Blustream range of HDBaseT™ products include multiple options for control and routing of IR. IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use the optional Blustream IRCAB cable for IR conversion.
- Page 8 1 x 4K SOURCE Example Schematic HEX70CS-KIT 4K LOCAL DISPLAY 4K DISPLAY Control Processor HDMI RS232 HDMI In HDMI Out IR In IR Out 3 2 1 0 EDID IR Out IR In Upgrade RS-232 HDBT Out DC 12V Mode...
- Page 9 HEX70CS-KIT USER MANUAL Specifications HEX70CS-TX HEX70CS-RX • Video input: 1 x HDMI Type A, female • Video input: 1 x HDBaseT™ RJ45 connector • Video output: 1 x HDBaseT™ RJ45 connector • Video output: 1 x HDMI Type A, female •...
