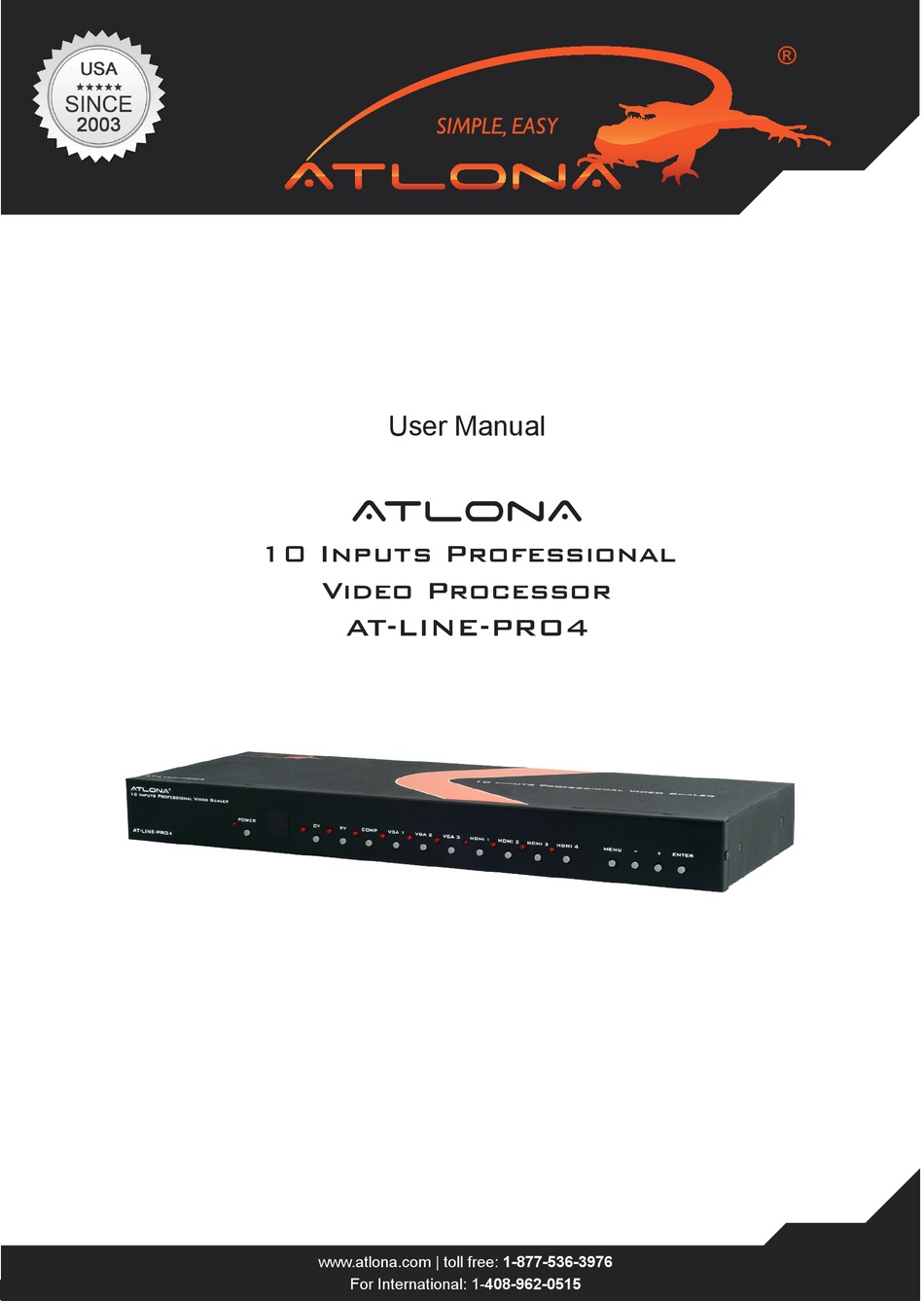

- Page 1 User Manual AtlonA 10 Inputs Professional Video Processor AT-LINE-PRO4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
8. Connection and Installation ..........9. RS232 Control ..........9.1. Set Command ..........9.2. Status Command ..........9.3. Key Command ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction

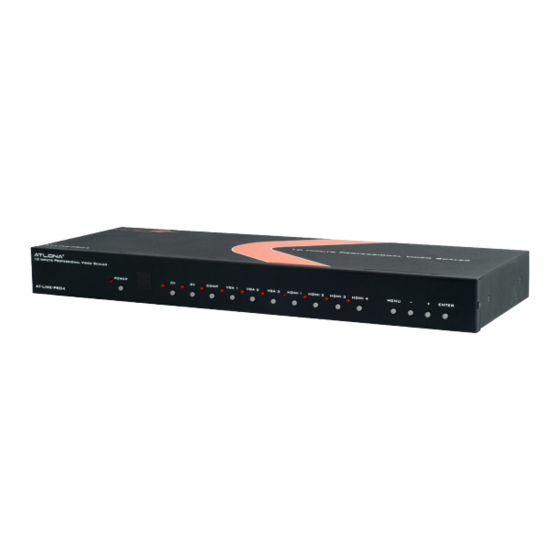

INTRODUCTION The Atlona AT-LINE-PRO4 is a professional quality 10-input video scaler/processor that allows four HDMI or DVI, three VGA, one component, one S-Video and one composite video input to be scaled to a single HDMI output. The LINE-PRO4 also gives you the flexibility to add PAL or NTSC that may not be native to your display. -
Page 4: Specification
8. MENU: Press this button to bring up the On-Screen-Display selection. 9. -/+: Press -/+ buttons for OSD selection bar of down/up. Once the selection is made press “enter” button. 10. ENTER: Press this button after each selection. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
• RESET: Press this button to reset the unit’s settings to the factory default value. • AUTO ADJUST: Press this button to optimize the position of the picture (picture centering) on the screen. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: On-Screen-Display
OFF / 40MS / 110MS / 150 MS - SOUND ON / MUTE - EXIT Back to the 1 Tier INFORMATION SOURCE (Input interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close the OSD Menu www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Connection And Installation
CONNECTION AND INSTALLATION Blu-ray Notebook Blu-ray Amplifier HDTV www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 8: Rs232 Control
S OUTPUT 3 > OUTPUT XGA XGA(1024X768@60)) OUTPUT S OUTPUT 4 > OUTPUT SXGA SXGA(1280X1024@60) OUTPUT S OUTPUT 5 > OUTPUT UXGA UXGA(1600X1200@60) OUTPUT S OUTPUT 6 > OUTPUT 480i 480i OUTPUT www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 9 COLOR ”RED” ADJUST S GREEN 0~100 > GREEN 0~100 COLOR “GREEN“ ADJUST S BLUE 0~100 > BLUE 0~100 COLOR “BLUE“ ADJUST S OSDHPOSITION 0~100 > OSDHPOSITION 0~100 OSD H POSITION 0~100 ADJUST www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 10: Status Command
> OSDTIMEOUT 0~100 SHOW OSD TIMEOUT VALUE R OSDBACKGROUND > OSDBACKGROUND 0~8 SHOW OSD BACKGROUND STATUS R AUDIOMUTE > AUDIOMUTE OFF~ON SHOW AUDIO MUTE STATUS R AUDIODELAY > AUDIODELAY OFF~150ms SHOW AUDIO DELAY STATUS www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 11: Key Command
K RIGHT > RIGHT REMOTE CONTROL KEY RIGHT K EXIT > EXIT REMOTE CONTROL KEY EXIT K AUTO > AUTO REMOTE CONTROL KEY AUTO K RESET > RESET REMOTE CONTROL KEY RESET www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 13: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 14: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
