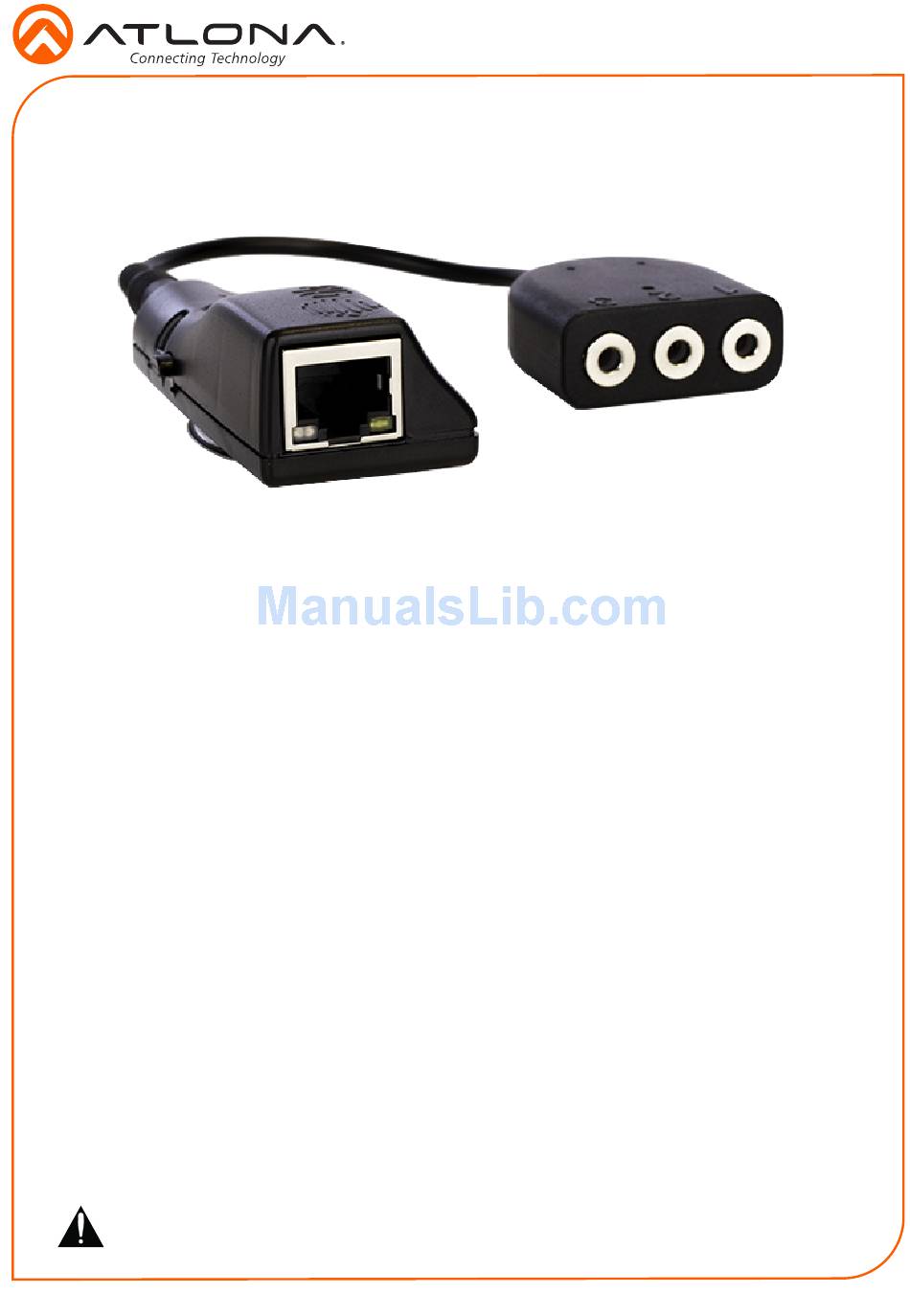

IP to IR Command Converter for Velocity Control System
AT-VCC-IR-KIT

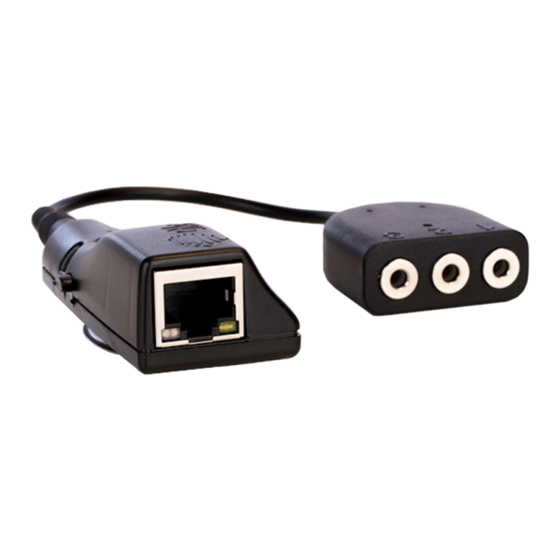

The Atlona AT-VCC-IR-KIT is an accessory for the Atlona Velocity™ Control System that provides
conversion from IP control commands to IR. This Velocity Control Converter is very compact
and can be placed anywhere a device requires IR control. The VCC-IR-KIT is remotely powered
through Power over Ethernet (PoE), or locally from a USB power source. The primary unit installs
onto any surface via a convenient mounting dock. A simple "click" locks it into place for a secure,
reliable installation. The IR adapter module includes three 3.5 mm ports for connecting the AT-
VCC-IR-EMT emitters. Each port is independently addressable, allowing discrete IR control of
three different AV devices.
Package Contents
1 x AT-VCC
1 x AT-VCC-IR
Operating Notes
•
The Velocity Command Converter must be on the same network as the Velocity Gateway
(AT-VGW-250) or it will be unable to sync for control.
•
The AT-VCC-IR-KIT is PoE, to power the unit, simply plug it into a PoE compatible network
switch. If the network switch is not PoE capable, a PoE injector
can be used.
•
All devices (AT-VCC, Velocity, AT-VTP, switchers, etc) should be set to static IPs or the
DHCP IP address reserved for each individual device.
IMPORTANT: Velocity Gateway (AT-VGW-250) must be set up before the AT-VCC-IR-KIT
is fully functional.
(purchased separately)
1
Installation Guide
AT-VCC-IR-KIT
or USB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-VCC-IR-KIT
Summary of Contents for Atlona AT-VCC-IR-KIT
-
Page 1: Installation Guide
(AT-VGW-250) or it will be unable to sync for control. • The AT-VCC-IR-KIT is PoE, to power the unit, simply plug it into a PoE compatible network switch. If the network switch is not PoE capable, a PoE injector or USB (purchased separately) can be used. -
Page 2: Panel Description
Connect the AT-VCC to a network switch (PoE is best if a PoE switch is not available, a power injector or mini USB to USB cable may be used). Download VHelp from the resource tab of http://atlona.com/AT-VCC-IR-KIT. Unzip the file to the local PC Double-click the VHelp executable to open the program. - Page 3 Installation Guide AT-VCC-IR-KIT Double click on the VCC (to determine the correct one, look on the bottom of the VCC for the MAC address). The PC default browser will open to the AT-VCC webGUI. NOTE: It is best to use the webGUI to set up the static IP only, as set up in Velocity will override any settings selected in the VCC page of the webGUI.
-
Page 4: Installation And Setup
Installation Guide AT-VCC-IR-KIT Installation and Set Up NOTE: Installation of the Velocity Command Converter can only be done after the VGW-250 has been set up. View the AT-VGW-250 Installation Guide and Velocity Manual for instructions. Connect the IR tri-port or IR emitter into the 3.5mm port on the unit. - Page 5 Installation Guide AT-VCC-IR-KIT Press the scan network button. All Atlona devices found will appear in the unassigned list. Select the Add button next to the VCC. A new pop up will appear. Select the correct mode for the VCC. NOTE: AT-VCC-IR has two modes to select from: VCC IR and VCC IR Triport. Select...
- Page 6 Installation Guide AT-VCC-IR-KIT IR Learning The VCC IR has the ability to learn IR codes from a device’s IR remote. Create equipment with IR control easier and without manually entering a list of IR command using the IR remote control with the VCC IR.
- Page 7 Installation Guide AT-VCC-IR-KIT Select the IP of the VCC IR from the Learn Device drop down menu. Press the NEW COMMAND button. A new line will appear above the button. NOTE: If a device was duplicated, remove all the previous commands using the delete link.
- Page 8 Installation Guide AT-VCC-IR-KIT Select the learn link. An information pop up will appear. Press OK. Point the device’s IR remote at the IR learn window located halfway down the VCC and press the button to be learned. NOTE: Use quick button presses to learn, do not hold the button down.
-
Page 9: Connection Diagram
Installation Guide AT-VCC-IR-KIT Connection Diagram P OU AT-VGW-250 (redundancy) P OU AT-VGW-250 Display AT-VCC-IR AV LAN AT-VTP-550-BL AT-VCC AT-VCC-RS232 AT-VCC AT-VTP-800-WH AT-VCC-RELAY Projector AT-VCC Screen AT-VTP-800-BL AT-VCC-IR Display AT-VCC... - Page 10 Installation Guide AT-VCC-IR-KIT Notes:...
- Page 11 Installation Guide AT-VCC-IR-KIT Notes:...
- Page 12 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images,...
