Atlona AT-VCC-RELAY-KIT Installation Manual

IP to Relay Command Converter for Velocity Control System
AT-VCC-RELAY-KIT

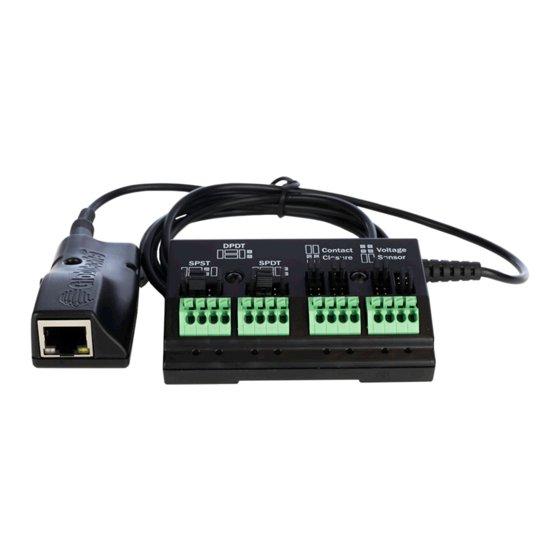

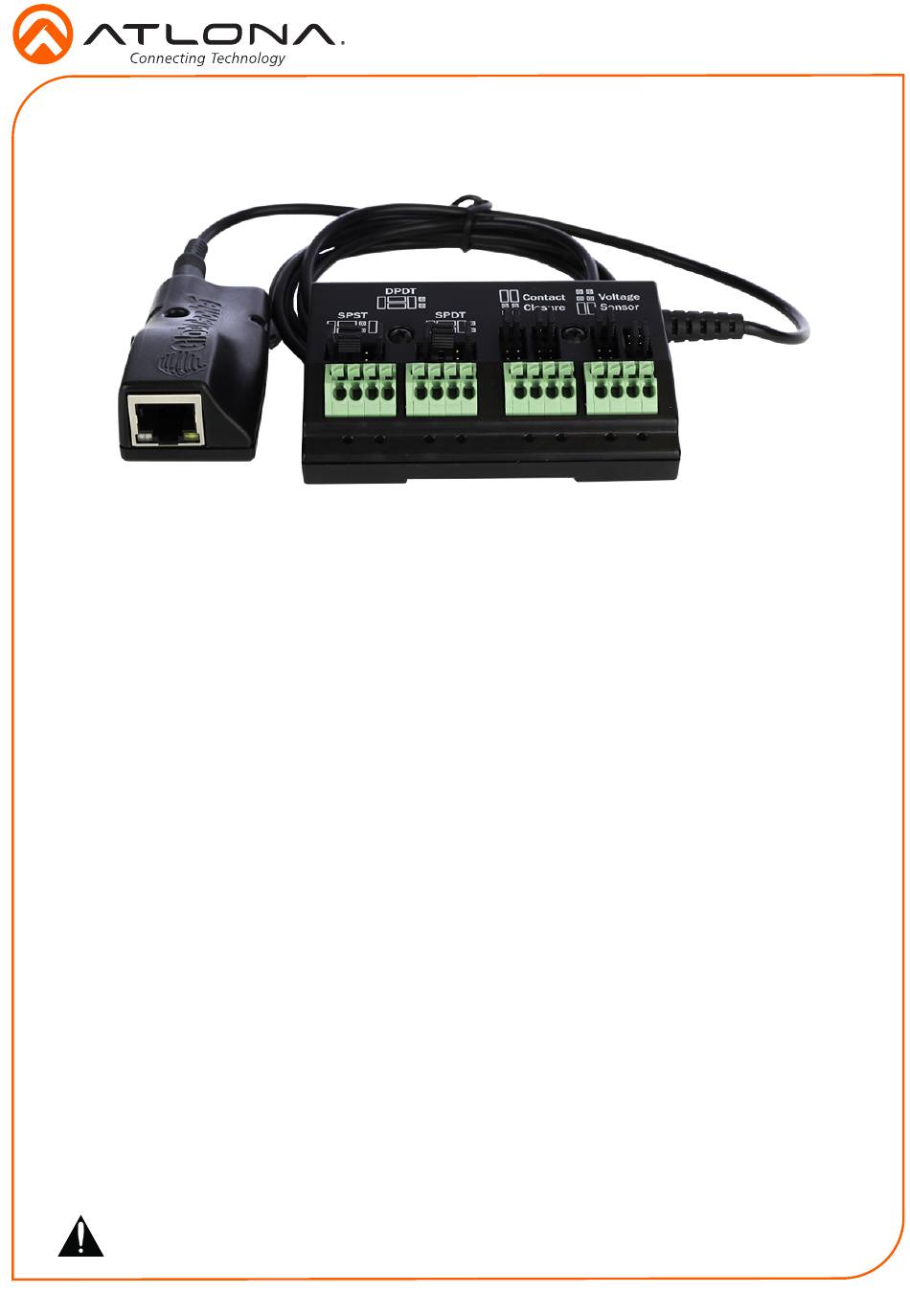

The Atlona AT-VCC-RELAY-KIT is an accessory for the Atlona Velocity™ Control System that
provides conversion between IP control commands and relay / sensor signals. This Velocity
Control Converter is very compact and can be placed anywhere a device requires control and
is not IP-capable. The VCC-RELAY-KIT is remotely powered through Power over Ethernet (PoE),
or locally from a USB power source. The primary unit installs onto any surface via a convenient
mounting dock. A simple "click" locks it into place for a secure, reliable installation. The control
port module supports DIN rail installation, and features four relay outputs plus four sensor inputs.
The inputs and outputs are both configurable for various operating modes.
Package Contents
1 x AT-VCC
1 x AT-VCC-RELAY
Operating Notes
• The Velocity Command Converter must be on the same network as the Velocity Gateway
(AT-VGW-250) or it will be unable to sync for control.
• The AT-VCC-RELAY-KIT is PoE, to power the unit, simply plug it into a PoE compatible
network switch. If the network switch is not PoE capable, a PoE injector
or USB can be used.
• All devices (AT-VCC, Velocity, AT-VTP, switchers, etc) should be set to static IPs or the
DHCP IP address reserved for each individual device.
IMPORTANT: Velocity Gateway (AT-VGW-250) must be set up before the AT-VCC-RELAY-
KIT is fully functional.
1
Installation Guide
AT-VCC-RELAY-KIT
(purchased separately)
