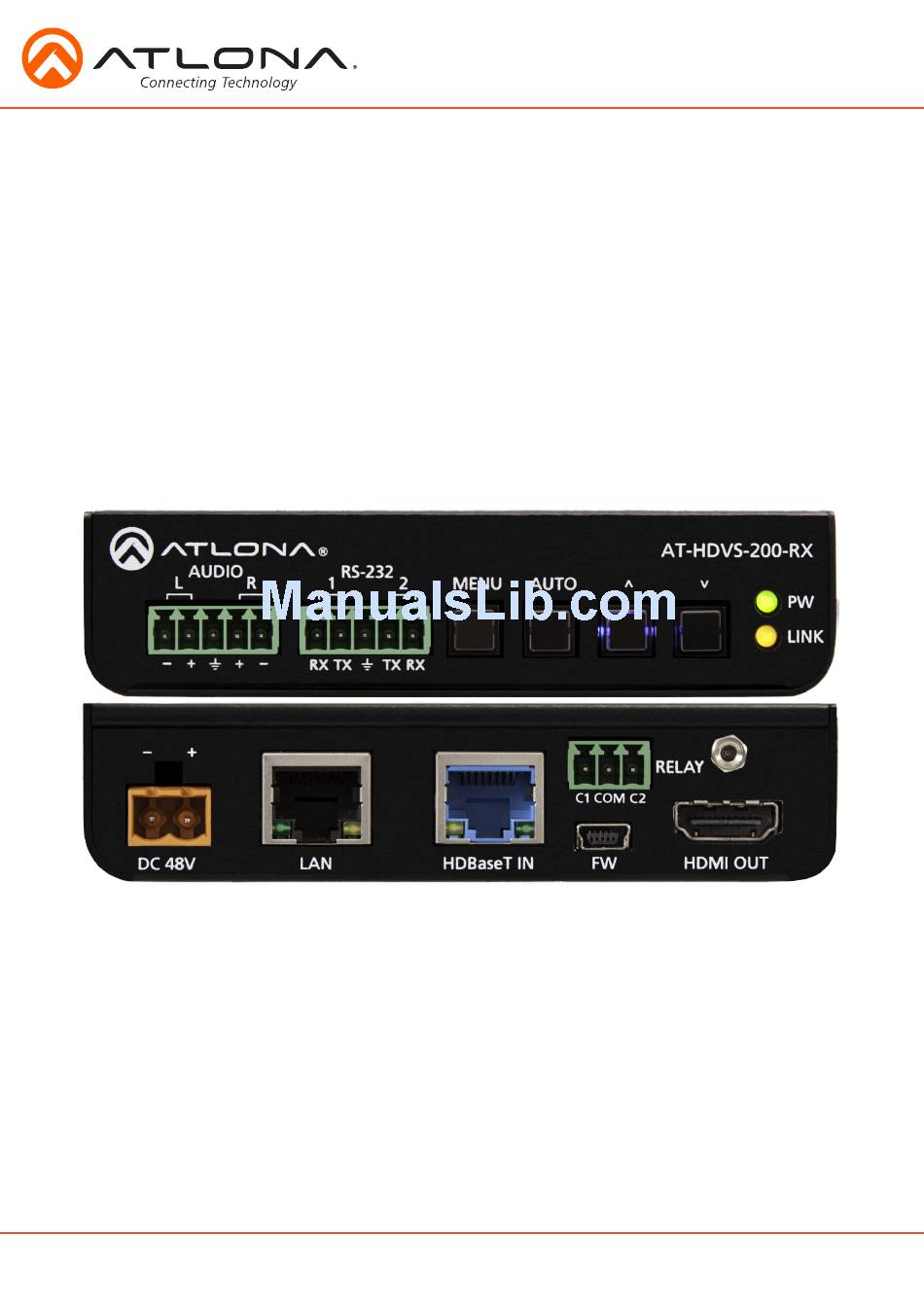

- Page 1 Ethernet-enabled HDBaseT Scaler with HDMI and Analog Audio Outputs AT-HDVS-200-RX User Manual Please check http://www.atlona. com/products/AT-HDVS-200-RX for the most recent firmware update or manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
10. Warranty .................. 21-22 11. Atlona Product Registration .................. 22 Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com... -
Page 3: Introduction
Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays. -

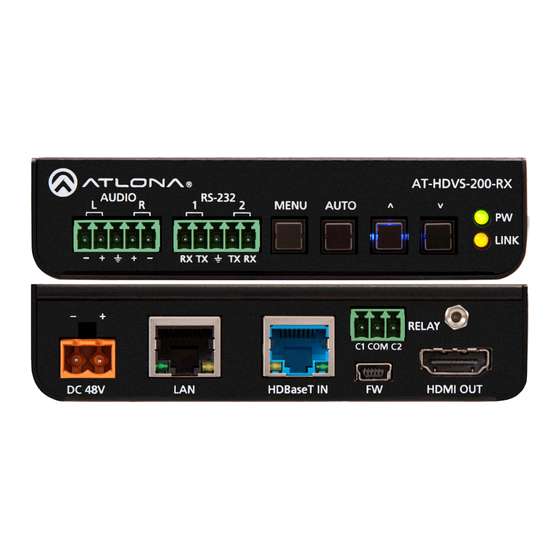

Page 4: Panel Descriptions
(e.g. AT-UHD-CLSO-601) 5. FW port: Firmware update port, connect a mini USB to USB A cable to a computer Note: Firmware is downloadable through http://www.atlona.com/products/AT-HDVS-200-RX/ 6. HDMI OUT port: Connect to a display Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. - Page 5 Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 6: Osd Menu
Menu Back Audio HDMI Audio Enable or Disable L/R Audio Enable or Disable Hot Keys None Mute On or Off Volume 0 to -80 dB Treble -12 to +15 Bass -12 to +15 Menu Back Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 7 FIFO HDBT V. XX V. XX Identify Next Page Menu Back System Setup Factory Reset No or Yes MCU F/W Update No or Yes HDBT F/W Update No or Yes Menu Back Menu Exit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 8: Webgui
To find the switcher IP: use RS-232 command “IPCFG”. Note: IP addresses may also be found using common free IP scanner software such as “Advanced IP Scanner” *Atlona does not assume responsibility for damage caused by other programs installed onto a computer, verify programs before installing* Important: If any stability issues are experienced, disable any anti-virus or firewall that may interfere with network communication to the switcher. -
Page 9: Webgui
Note: Keep ratio maintains the aspect ratio of the source, even if it does not match connected display’s aspect ratio Overscan Enable - Toggle on/off to enable horizontal and vertical sizing H Size - Adjusts the width of the video V Size - Adjusts the height of the video Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 10 The Picture Page provides output adjustment for brightness, contrast, saturation, hue, and sharpness. Note: Calibrate the display before using these settings to adjust the picture Reset Picture - Resets the picture settings of the unit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 11: Rs-232
Adjust the RS-232 parameters of the HDVS-200-RX RS-232 port 2 to make it compatible with control systems. Save - Once the RS-232 parameters are changed, press the save button to make it live on the unit. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 12 Admin password can also be changed. Be sure to write this information down as admin is the only profile allowed to add/remove users. Note: Default username= “root” and password= “Atlona” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 13 Reset to Default - Reset the device to factory settings Firmware Update - Use this feature to find and load the MCU firmware to the switcher Note: Firmware can be found and downloaded from http://www.atlona.com/products/AT-HDVS-200-RX/ page under the firmware tab...
-
Page 14: Connection
HDVS-200-RX default settings of: Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any terminal program may be used to control the HDVS-200-RX now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 15: Commands
25 1920x1080p59 26 1920x1080p60 27 Input 28 Native Aspect Ratio - 1 Full 2 16:9 3 16:10 4 4:3 5 Keep Ratio Note: Incorrect aspect ratio will display with horizontal or vertical bars to fill the excess space Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 16: Parameters
Add a user for TCP/IP control. X=User Y=Password e.g. IPAddUser Atlona 1234 (User=Atlona 1234=Password) IPDelUser X TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP e.g. IPDHCP on... -
Page 17: Relay
A dual low-voltage signal relay is built into the HDVS-200-RX for control of devices such as electric screens and display lifts. AT-HDVS-200-RX There are 3 connections for the relay: C1, COM, and C2 (Circuit 1, Common, and Circuit 2 - pictured... -
Page 18: Connection Diagram
INPUT HDMI DISPLAY HDMI IN 1 VGA IN AUDIO IN RS-232 HDMI IN 2 HDBaseT OUT Media Player AT-HDVS-200-TX AT-PA100-G2 AT-HDVS-200-RX AUDIO RS-232 MENU AUTO Drop down projector screen LINK (contact closure controlled) RELAY DC 48V HDBaseT IN HDMI OUT... -
Page 19: Connection Diagram
HDMI 5 VOLUME Router AT-UHD-SW-52ED AUDIO RS-232 S/PDIF OUT Media Player HDMI IN HDMI OUT HDBaseT OUT DC 48V AT-PA100-G2 AT-HDVS-200-RX AUDIO RS-232 MENU AUTO Drop down projector screen LINK (contact closure controlled) RELAY DC 48V HDBaseT IN HDMI OUT AT-HDVS-200-RX... -
Page 20: Specifications
Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 21: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 22: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 23: Warranty
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
