Scan For Network - Cognisys STACKSHOT 3X Owner's Manual

when your device looks for wireless networks. After the StackShot ID you will see a "/" followed
by a sequence of numbers. These numbers are the password for connecting to StackShot. In
the above example the name you will see when looking for wireless access points would be
"StackShot996184", and the wireless Password/Passphrase is "1252354433".
As you can see "Scan for network" is grayed out since that is only available when in client mode.
The last box is usually for information on a connection. This is also grayed out since it is
configured for an access point.
8.10.1.2 Wireless Mode: Client
"Client" indicates that you plan on connecting up to another network. Initially you will have to
scan for a network to "find" a router or access point to connect with. Once successfully
connected your connection will be saved for future use under the "Saved Connections" button.
Note: StackShot 3X does not automatically connect to saved networks. This is done to conserve
battery power. You will have to select the desired network each time you wish to connect to it.

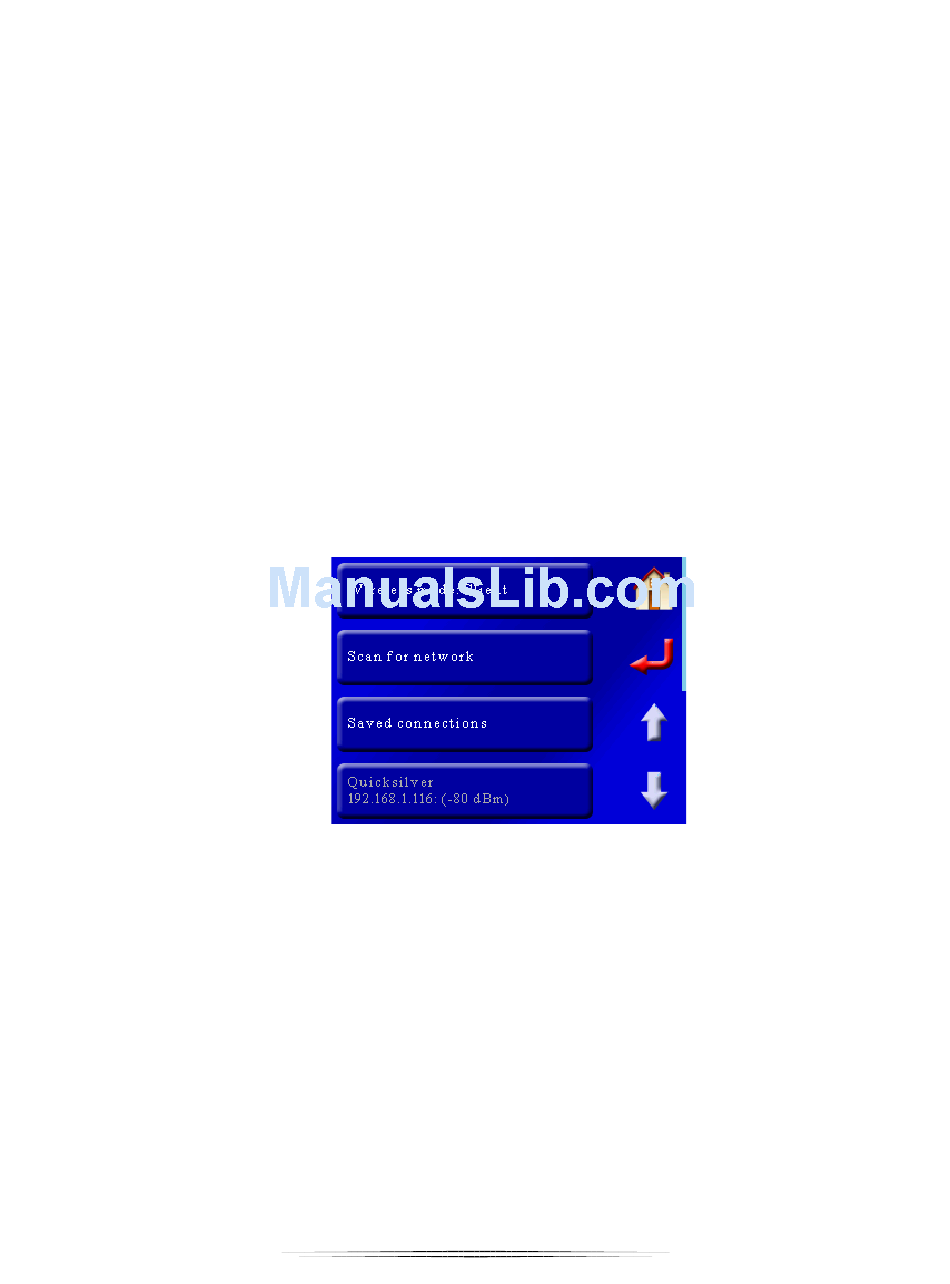

Once connected to a network you will see the bottom button of the display grayed out. It will
indicate the name of the router/access point you are connected to along with StackShot's local
IP address:
In this case StackShot 3X is connected to a router called "Quicksilver", and the controller's IP
address is 192.168.1.116.

8.10.2 Scan for network

This button will start scanning for new wireless networks. It is only available when the "Wireless
Mode" is set to "Client". The scan will take approximately 10 seconds to complete and will bring
up a list of available networks:
97
