Cognisys STACKSHOT 3X Owner's Manual page 86

7.12.2.3 Slider Retrofit

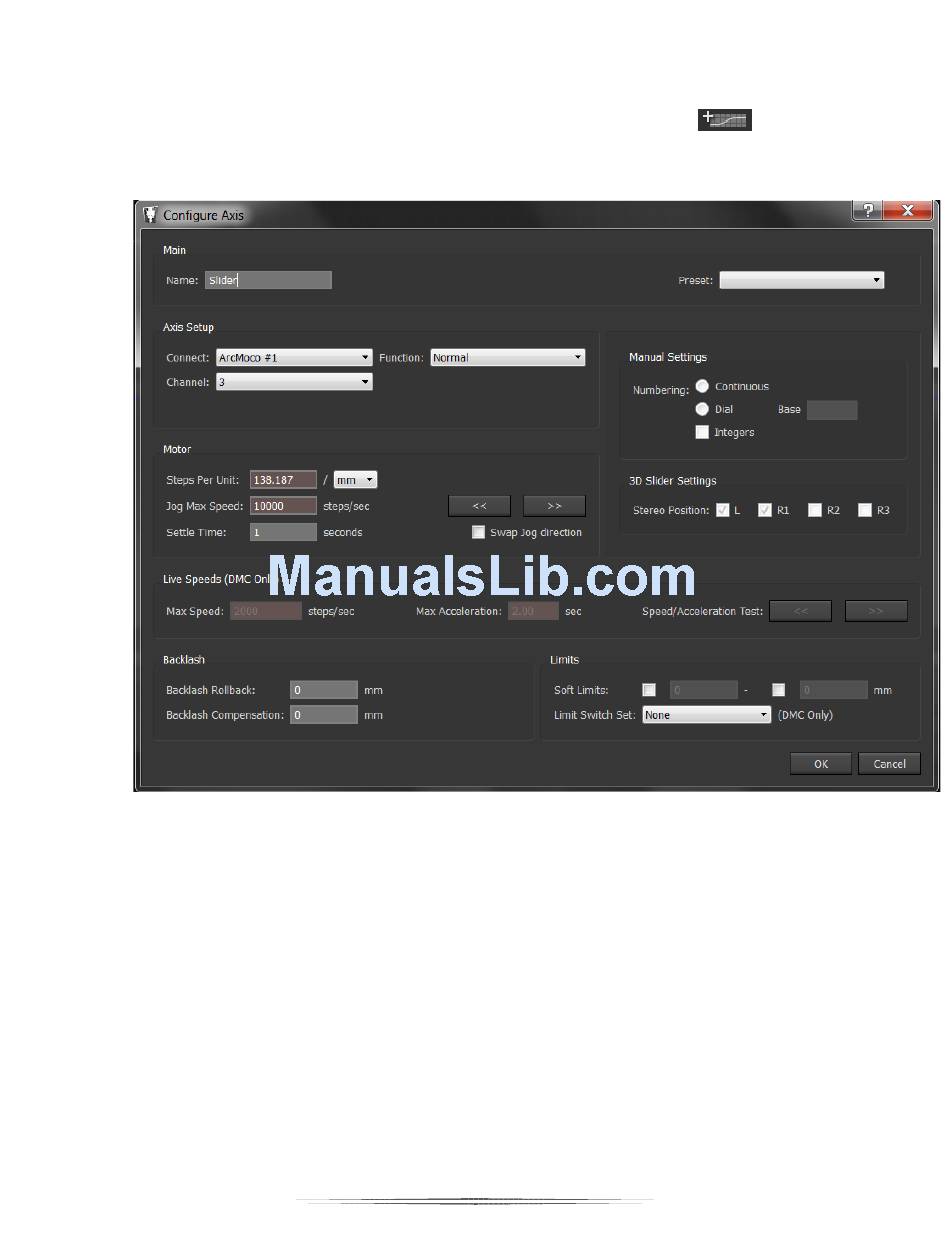

Now we will add a third axis for the slider by clicking the "Add Axis" icon:
Here are the parameters that need to be changed:
Name: Slider
Connect: Leave at ArcMoco #1
Channel: 3 (This is the Z-axis, the third motor available)
Steps Per Unit: 138.187296 / mm
Settle Time: Whatever your application requires
Swap Jog direction: NOT Checked
Backlash Compensation: 0.0 mm
Press OK!
86
