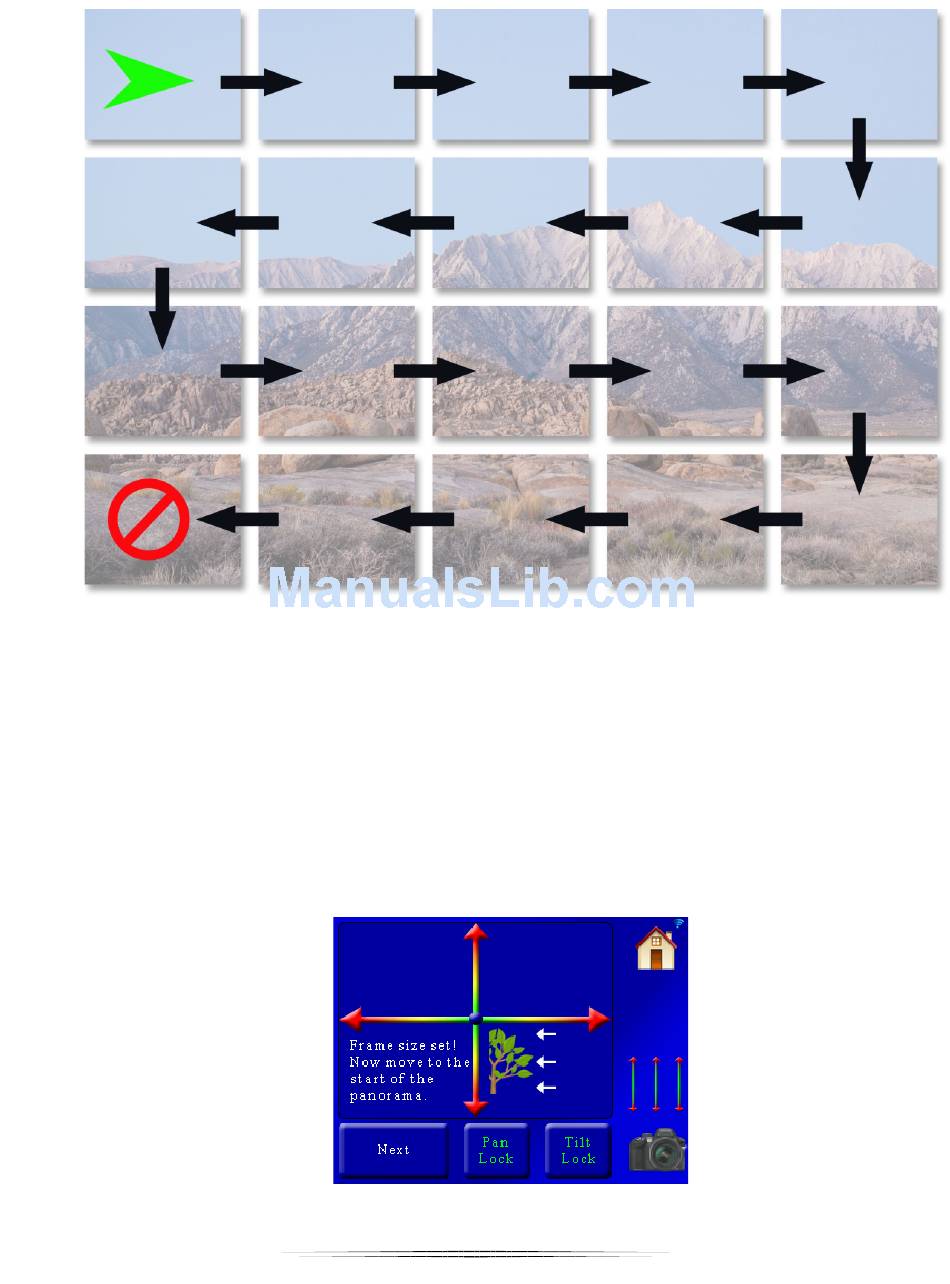

The series of photographs collected can then be stitched together using programs such as
Photoshop. The above order of the photographs may be required for the stitching program to
process the images correctly. As you can see, even though the starting point for the panorama
was in the upper-left and the end in the bottom-right, StackShot 3X ended in the bottom-left. It
still captured the bottom-right frame but the optimum motor path was to end in the bottom-
left.
The field of view (FOV) setup is identical to the other panoramic modes and is discussed in
section 6.1.4. You can use a previously set up FOV or set a new one. Once your FOV is set you
will see the following screen:
