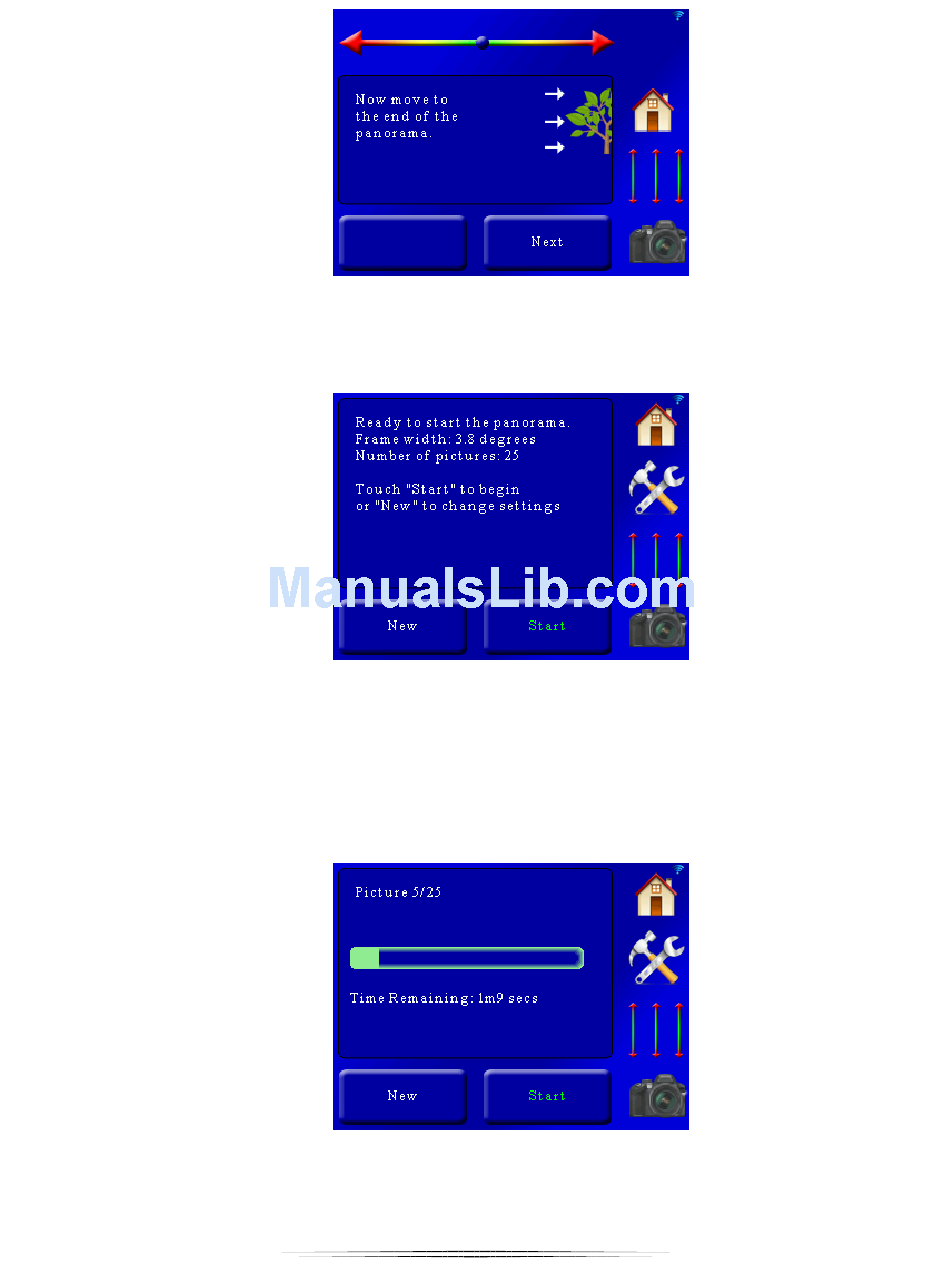

Use the slider at the top to adjust the rotary table to the end position of the panorama and then
press the "Next" button. You will then see a summary of the panorama before it begins:
For this example, during the FOV setup the rotary table was rotated about five degrees, and the
panorama was over roughly 90 degrees of rotation. So why does the frame width say "3.8
degrees"? That is because of the 30% overlap. The rotary table will move the 3.8 degrees every
time. You are prompted to either start over with a new panorama (which will take you back to
the beginning) or start the panorama. Once you press "Start" the panorama will begin and
show the current progress:
You can abort the panorama at any time by touching the screen.
