8.5.2 Final Off Time
Each "activation" of the shutter output consists of the time it is on and the time it is off. If you
have more than one "Pics Per Move", you might not want to wait that final off time.
The default is to wait the final off time.

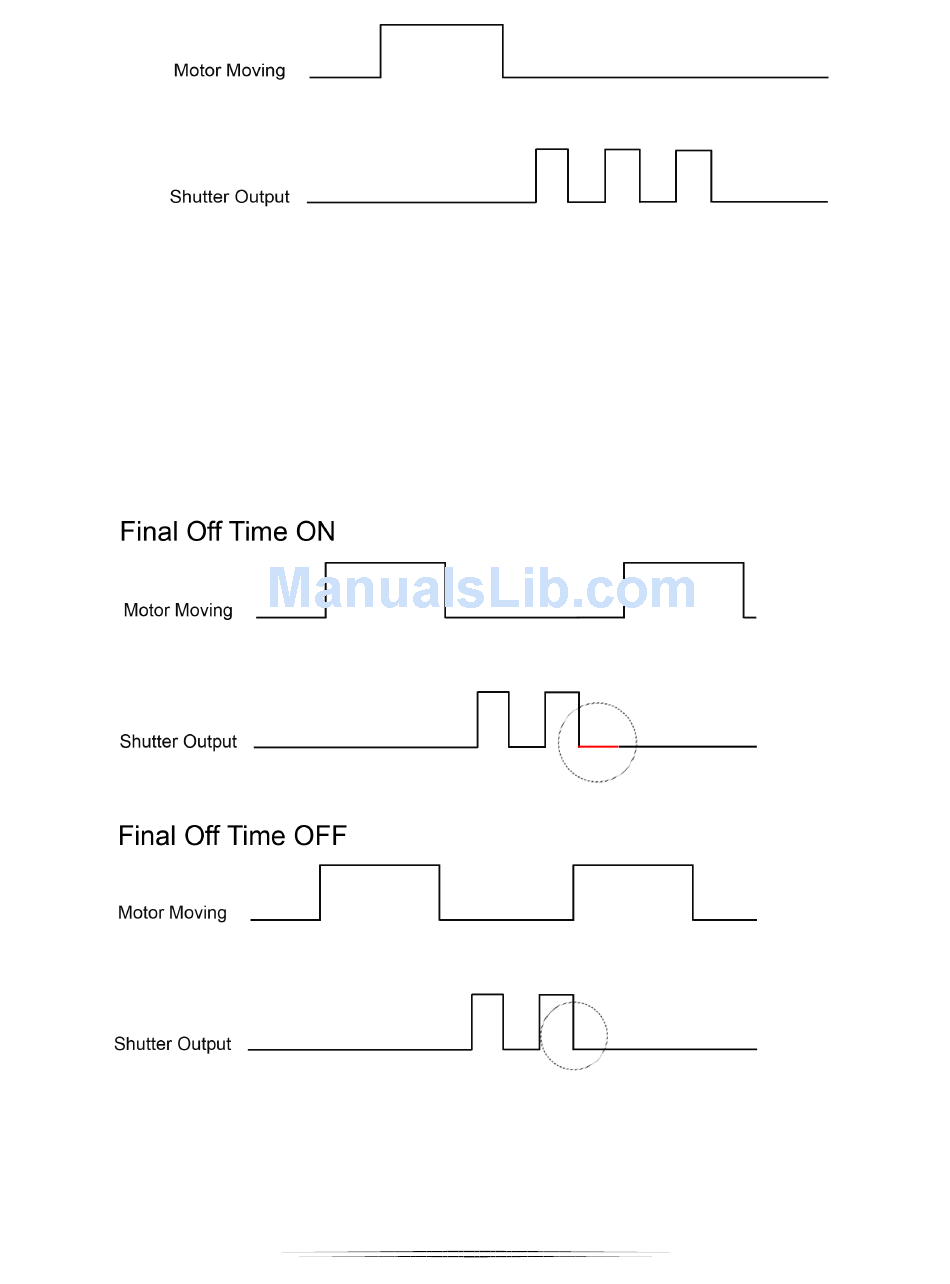

Below is an example with "Pics Per Move" set to "2", and showing the difference with "Final Off
Time" set to "Yes" and "No".
8.5.3 Shutter I/O
Typically the shutter outputs are connected to cameras and set as an output to control when
the cameras should take a photograph. Shutter 1 has the ability to be used as an input. It
91
