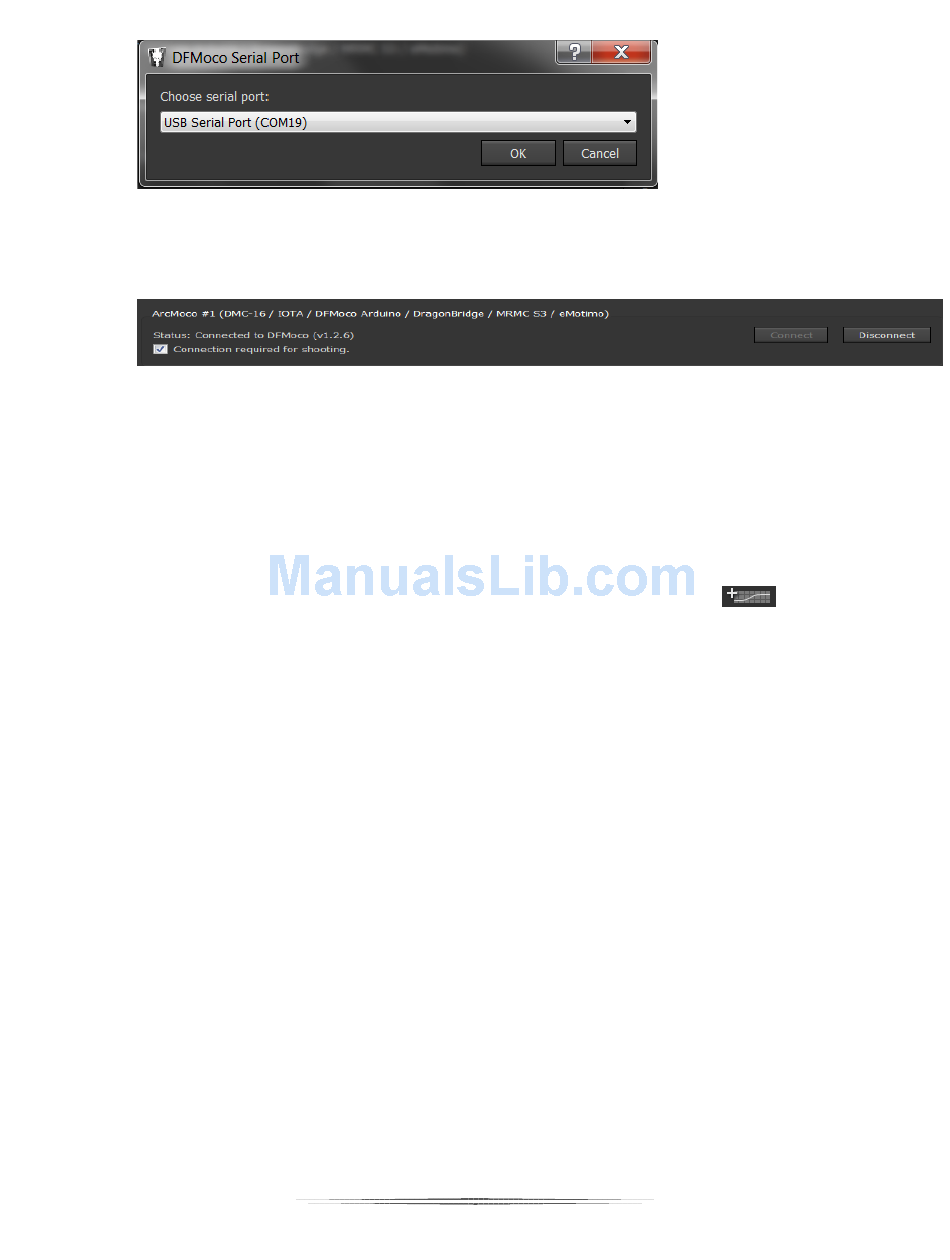

This will depend on other devices connected to your computer. In this case StackShot 3X shows
up as serial port 19. Select the correct serial port and press OK.
You will then see ArcMoco #1 show:
Once connected click the "OK" button at the bottom to close this window.

7.12.2 Configuring the axes

Now that we have Dragon Frame connected to StackShot 3X we need to configure Dragon
Frame for using the Cognisys motorized gear (rotary, rail, and slider).
We will set up one of each in this example. First, click the "add axis" button:
That will bring up the "Configure Axis" screen. We will start with a rotary table.
83
