7.11.3 Add Key frame

StackShot 3X supports up to five key frames per axis.

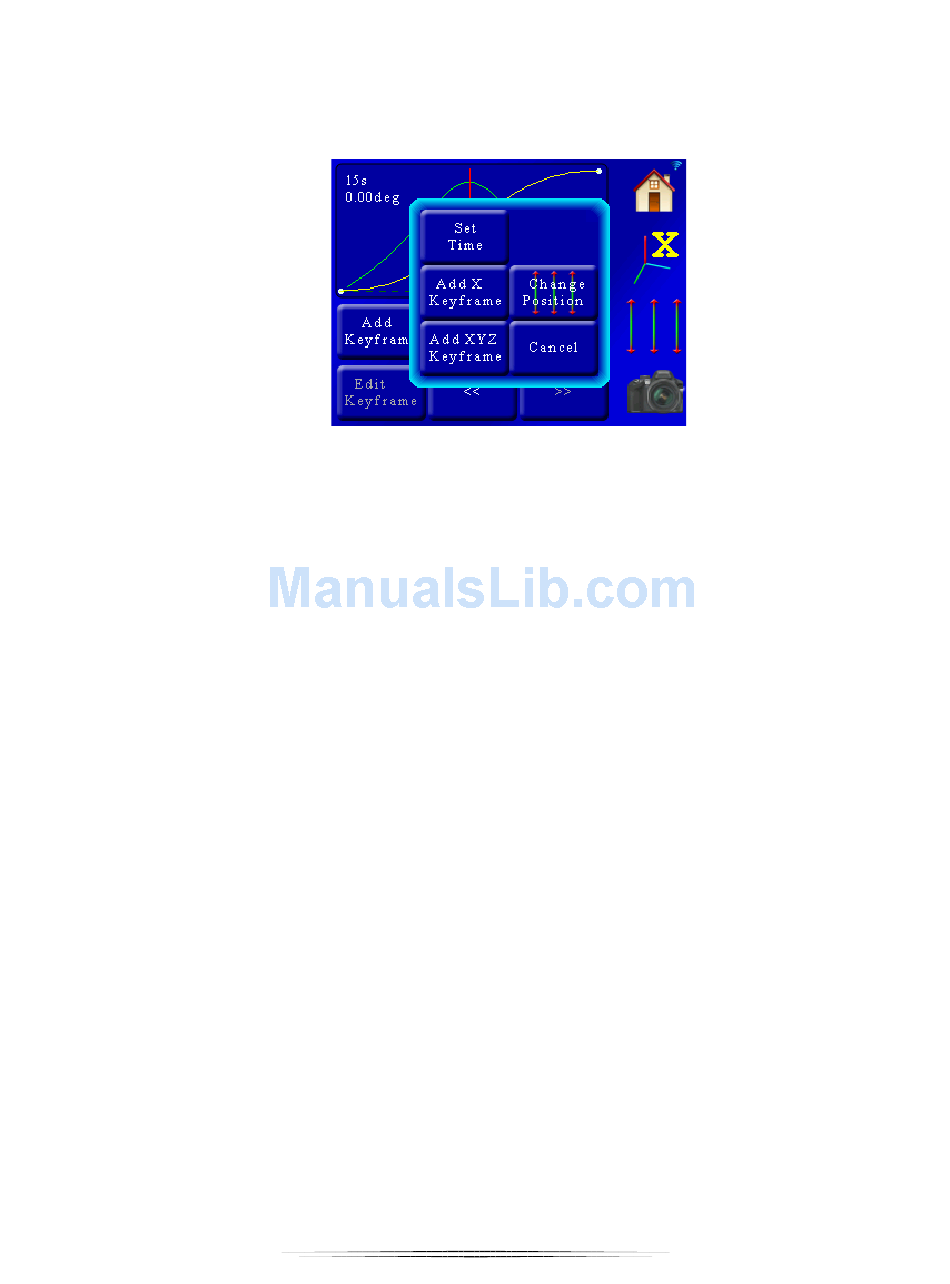

Pressing the "Add keyframe" button brings up a pop-up window asking for some additional
information:
Here we have a few additional buttons:
7.11.3.1
Set Time / Set Frame
This is an optional setting. In the previous example of using the "Move to..." to move us to a
specific time, the indicator shows we're already at 15 seconds. If, however, you want to add a
key frame at a different time (or frame number) you would press the "Set Time" (or "Set
Frame") button. The controller would then ask you for the time or frame for this new key
frame.
7.11.3.2
Add X / Y / Z key frame
This will add a key frame at the current motor position for just the current axis. If you want to
add a key frame at a different position then you will need to press the "Change Position" button
within this pop-up window, adjust the motor position as necessary, and then press the "Add X
keyframe" button.
7.11.3.3
Add XYZ Key frame
This button will add a key frame for all three axes at the current time/frame setting. Make sure
that all the other axes are at your desired position before pressing this button. If the position is
not correct, use the "Change Position" button within the pop-up to make adjustments.
7.11.3.4
Change Position
This will bring up the 3-axis slider to adjust the motor positions as necessary. Don't press the 3-
axis slider outside the pop-up window on the right-hand side of the screen – it will dismiss the
pop-up.
77
