IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE APPLIANCE INSTRUCTIONS
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should
be kept together. Refer to the Installation and Operating
Instructions for proper gas supply, safety requirements and
operating instructions
091009-12
OPTIONAL
VERTICAL OR
HORIZONTAL
POWER VENT KIT
Power Vent Terminal
(TCVT.502461)
5 x 8 Pipe
(Simpson Duravent)
(Secure Vent)
(Selkirk Direct-temp)
NOT SUPPLIED
TCVT.WSPVB1
INSTALLATION AND
OPERATING
INSTRUCTIONS
TCVT.WSPVB1
Simpson
Vent Adaptor
Duravent #1247
(5096.814)
wall thimble
NOT SUPPLIED
5056.425213
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCVT.WSPVB1
Summary of Contents for Town & Country Fireplaces TCVT.WSPVB1
-
Page 1: Operating Instructions

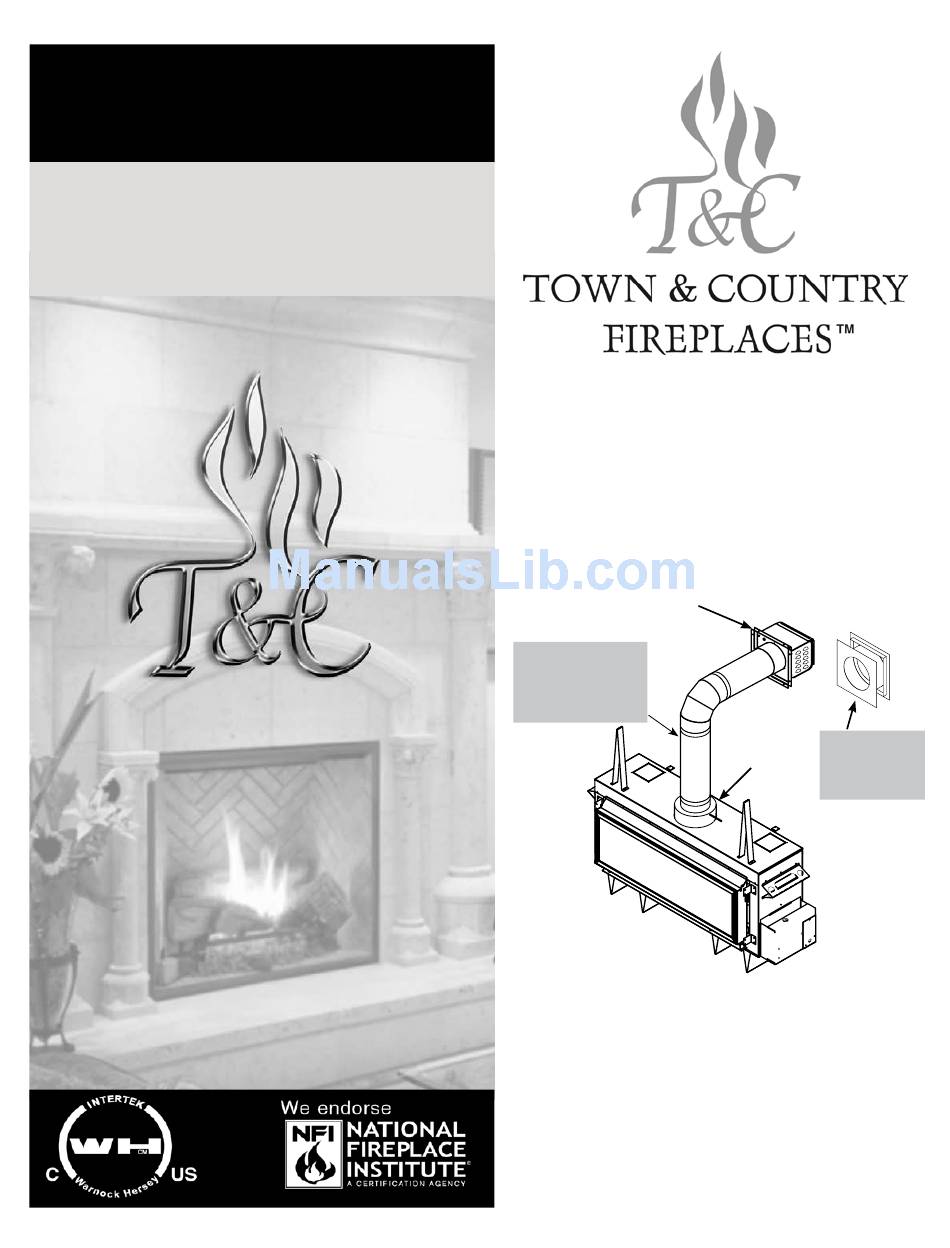

VERTICAL OR HORIZONTAL POWER VENT KIT Power Vent Terminal (TCVT.502461) 5 x 8 Pipe (Simpson Duravent) (Secure Vent) (Selkirk Direct-temp) NOT SUPPLIED Simpson Vent Adaptor Duravent #1247 (5096.814) wall thimble NOT SUPPLIED TCVT.WSPVB1 INSTALLATION AND OPERATING INSTRUCTIONS 091009-12 TCVT.WSPVB1 5056.425213... -
Page 2: Power Vent Installation
49” 0” 110 feet 4 feet Sides 1.5 in. (38mm) 57” 12” 109 feet 3 feet Bottom 1.5 in. (38mm) 65” 24” 108 feet 2 foot All other clearances are as per the fireplace installation instructions. Fig. #1a TCVT.WSPVB1 091009-12... -
Page 3: Vent Terminal Minimum Clearances
** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the floor* * as specified in CGA B149 Installation Codes, Note: local Codes or Regulation may require different clearances * for U.S.A. Installations follow the current National Fuel Gas Code, ANSI Z223.1 091009-12 TCVT.WSPVB1... -
Page 4: Horizontal (Side Wall) Venting
/ Selkirk Direct-temp pipe from the adaptor to the terminal assembly. Assemble as per the vent pipe manufacturer’s instructions. Fig.#4 PRESSURE Power Vent Adaptor. Part # 5096.814 MUST BE INSTALLED AT THE UNIT Secure with three screws Seal not required TCVT.WSPVB1 091009-12... -
Page 5: Vertical (Through Roof) Venting
Assemble as per the vent pipe manufacturer’s instructions. 9. Apply a bead of silicone on the bottom flange of the power vent terminal (TCVT.WSPVB1) 10. Slide the vent through the drip shield and at the same CAUTION: The vent restrictor must be fully time thread the electrical lead through the hole in the open for proper operation. - Page 6 - DISCARD - Part C Drip Shield 14-2 Wire w/ Ground #8 x 1-1/2" S.S. (8 REQUIRED) Part B Vertical Standoff SILICONE ALL Part A CONNECTING FACES Flashing 18.000 11.000 18.000 11.000 Site Fabricated Chase Final Installation Height: 21" TCVT.WSPVB1 091009-12...
-
Page 7: Control System Connections
Pg. 9) Fig. #13 SUPPLIED WIRES TO CONNECT TO BLACK WIRE ON MODULE SPADE CONNECTORS IN BLACK Fig. #11 WIRE LOOP ORANGE WIRE FROM MODULE Fig. #12 TO VALVE HOT WIRE HOT WIRE FROM FROM BLOWER 120V SUPPLY 091009-12 TCVT.WSPVB1... - Page 8 WARNING: Both the control box shield and access panel must be reinstalled after conversion\ installation or servicing has been completed. Failure to do so will overheat and cause premature failure of the control system. TCVT.WSPVB1 091009-12...
-
Page 9: Wiring Diagram
Wiring Diagram 091009-12 TCVT.WSPVB1... -
Page 10: Replacement Parts
PV MODULE SWITCH WIRE SIDE COVER, RIGHT SIDE COVER, LEFT * NOT SHOWN ITEM 35 AND 36 ARE USED WITH SERIES “C” FIREPLACES ONLY ITEMS NOT SOLD SEPARATELY ITEMS 37 AMD 38 ARE UED ON SERIES “B” FIREPLACES ONLY TCVT.WSPVB1 091009-12... -
Page 11: Venting Components
Cieling Support / Firestop 1605500 Firestop spacer TM-OS Offset Support 1605460B Wall thimble (blk) TM-SR Roof Support 1605430 Wall support band TM-WS Adjustable Wall Support TM-5WT Insulated Wall Thimble TM-5TR Trim Ring, Black TM-5AS Attic Radiation Shield / Firestop 091009-12 TCVT.WSPVB1... - Page 12 TECHNICAL SUPPORT: 1-250-748-1184 www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
