INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fi replace and should be kept
together. Refer to the Installation and Operating Instructions for proper
gas supply, safety requirements and operating instructions
180411.-16
TC30
HEARTWOOD
BURNER INSTALLATION
INSTRUCTIONS
PART#
TC30.NG05C
FOR TC30
Series C
TC30.NG05C
5056.42906

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC30 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC30

Summary of Contents for Town & Country Fireplaces TC30

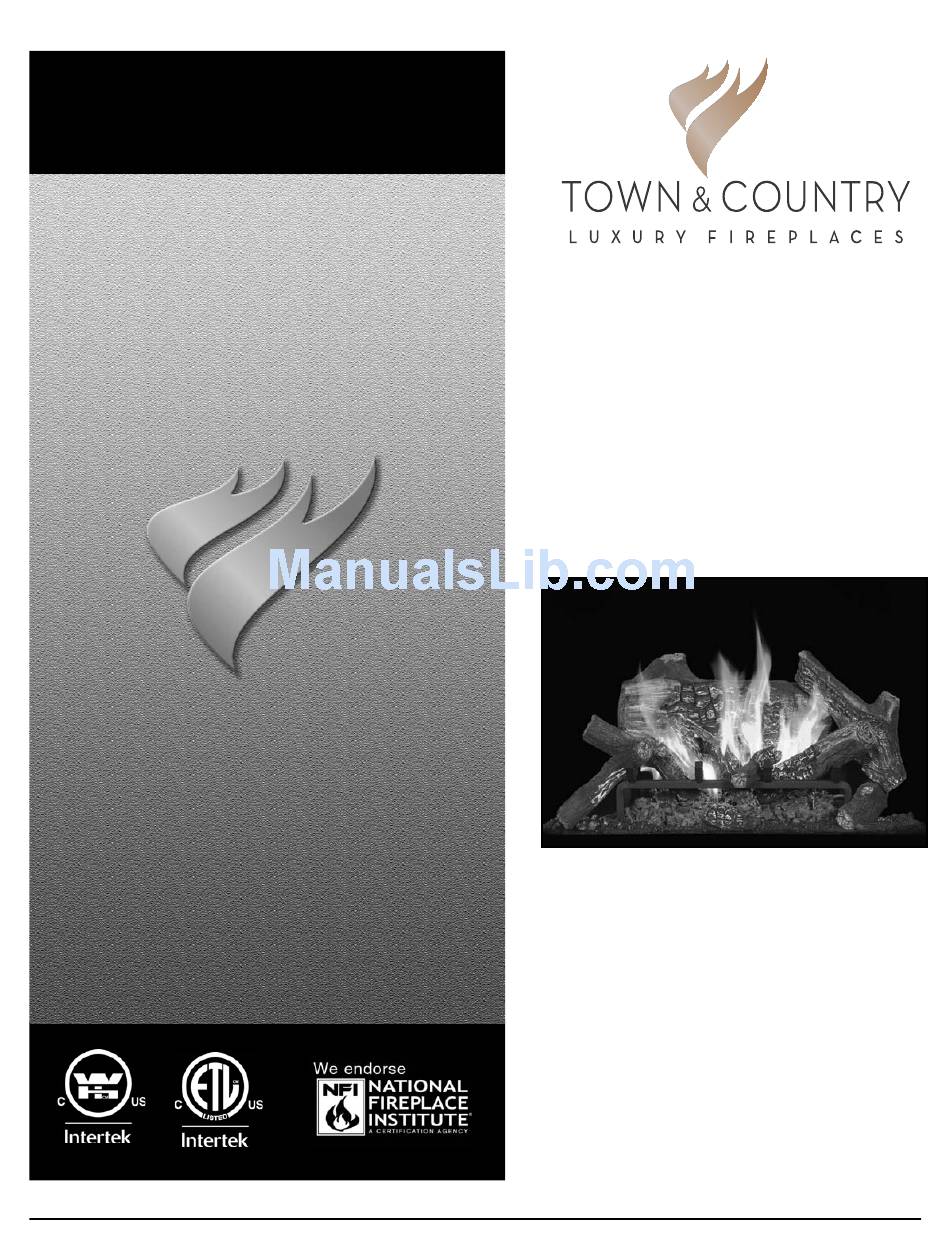

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC30 HEARTWOOD BURNER INSTALLATION INSTRUCTIONS PART# TC30.NG05C FOR TC30 Series C 180411.-16 TC30.NG05C 5056.42906...

  • Page 2: Contents Of Package

    Contents of Package • BURNER ASSEMBLY (including pilot and manifold) • LOG GRATE • TC30 HEARTWOOD LOGS • EMBER MATERIAL • HARDWARE PACKAGE • AIR DEFLECTOR • COAL CHUNKS • VERMICULITE Burner Installation Fig. # 1a Place the keyhole slots in the burner...
  • Page 3 Red end to the connector marked by the red dot, white end to the connector marked 2 SCREWS by the white dot Fig.#2 & Fig.#3 BULKHEAD PLATE Fig. # 3 WHITE END TO RED END TO MODULE WHITE DOT RED DOT TC30.NG05C 110310-16...
  • Page 4 PILOT SUPPLY TUBE MAIN GAS SUPPLY TUBE 6. Position the slots of the grate securing Fig. # 4 brackets over the holes in the fl oor shield and secure with the two screws (Fig. # 4). TC30.NG05C 110310-16...

  • Page 5: Ember Material

    Reduce the amount used on Propane models, as too much will create soot Embers only in this area. Embers only in this area. Fig. #6 Embers, coal chunks and lava rock. Embers, coal chunks and lava rock. TC30.NG05C 110310-16...

  • Page 6: Log Placement

    (fi g. # 7-15) Note: Improper placement of logs will cause sooting on internal parts and glass. The logs may need to be repositioned slightly to avoid excessive fl ame impingement. Fig. # 8 LEFT CENTER LOG, #2 TC30.NG05C 110310-16...
  • Page 7 Fig. #9 LEFT FRONT LOG, #3 Fig. #10 LOG WITH HOLE, #4 TC30.NG05C 110310-16...
  • Page 8 Fig. #11 RIGHT CENTER LOG, #5 Fig. #12 FRONT RIGHT LOG, #6 TC30.NG05C 110310-16...
  • Page 9 Fig. #13 RIGHT BASE LOG, #7 Fig. #14 CENTER TWIG, #8 Fig. #15 CENTER BASE CHUNK, #9 TC30.NG05C 110310-16...

  • Page 10: Propane Conversion

    (#48) (our part # 5021.3407) converted appliance is (Fig. #18) checked as specifi ed in the manufacturer's instructions Fully open the primary air shutter. supplied with the kit. Reinstall the manifold assembly and air defl ector. TC30.NG05C 110310-16...
  • Page 11 (Fig. #20 shows NG position, Fig. # 21 shows LP position) Adjustment Fig. #21 Band HOLE Fig. # 22 Remove the minimum rate screw located in the valve. (Fig. #22) Minimum rate screw TC30.NG05C 110310-16...
  • Page 12 Fig #26 14. Attach the access panel to the side of the fi rebox with the previously removed screws. (Fig. #26) Note: Gasket must be installed with access panel. TC30.NG05C 110310-16...

  • Page 13: Gas Pressure Check

    Correct gas pressure requirement: Supply Pressure Natural Gas Propane (For purpose of input adjustment) Minimum 5.0" WC 12.5" WC Maximum 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11.0w" WC Minimum 2.1" WC 5.5" WC TC30.NG05C 110310-16...

  • Page 14: Flame Adjustment

    3. Loosen the screw in the Primary Air Shut- ter. 4. Rotate the shutter to increase or decrease the amount of primary air. Fully closed for natural gas and fully open for propane gas. Fig. # 30 5. Reassemble in reverse order. PRIMARY AIR SHUTTER TC30.NG05C 110310-16...

  • Page 15: Replacement Parts

    (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #4..PILOT ASSEMBLY......TCRP.5005025 #1..TC30.NG05 BURNER ASSEMBLY ..TC30.NG05C #5..MAIN SUPPLY TUBE (FLEX) .....5019.223 #2..9 PCS LOG SET ........5098.746131 #6..PROPANE CONVERSION KIT ... TC30.LPCE01 #3..
