PACKAGE CONTENTS:
•
BURNER ASSEMBLY
•
LOG GRATE
•
TC42 LOGS
•
EMBER MATERIAL
•
HARDWARE PACKAGE
These instructions are supplementary to the Installation and Operating
Instructions supplied with the fi replace and should be kept together. Refer
to the Installation and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
110505-8
CHALET BURNER KIT
PART #
PART #
PART #
PART #
PART #
IMPORTANT: THESE INSTRUCTIONS
ARE TO REMAIN WITH THE
APPLIANCE INSTRUCTIONS
TC42.NG01
TC42.NG01
TC42.908501
TC42.9081
5098.31061
5096.981.B
TC36.NGHDWR
5056.426.1
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TC42.NG01
Summary of Contents for Town & Country Fireplaces TC42.NG01

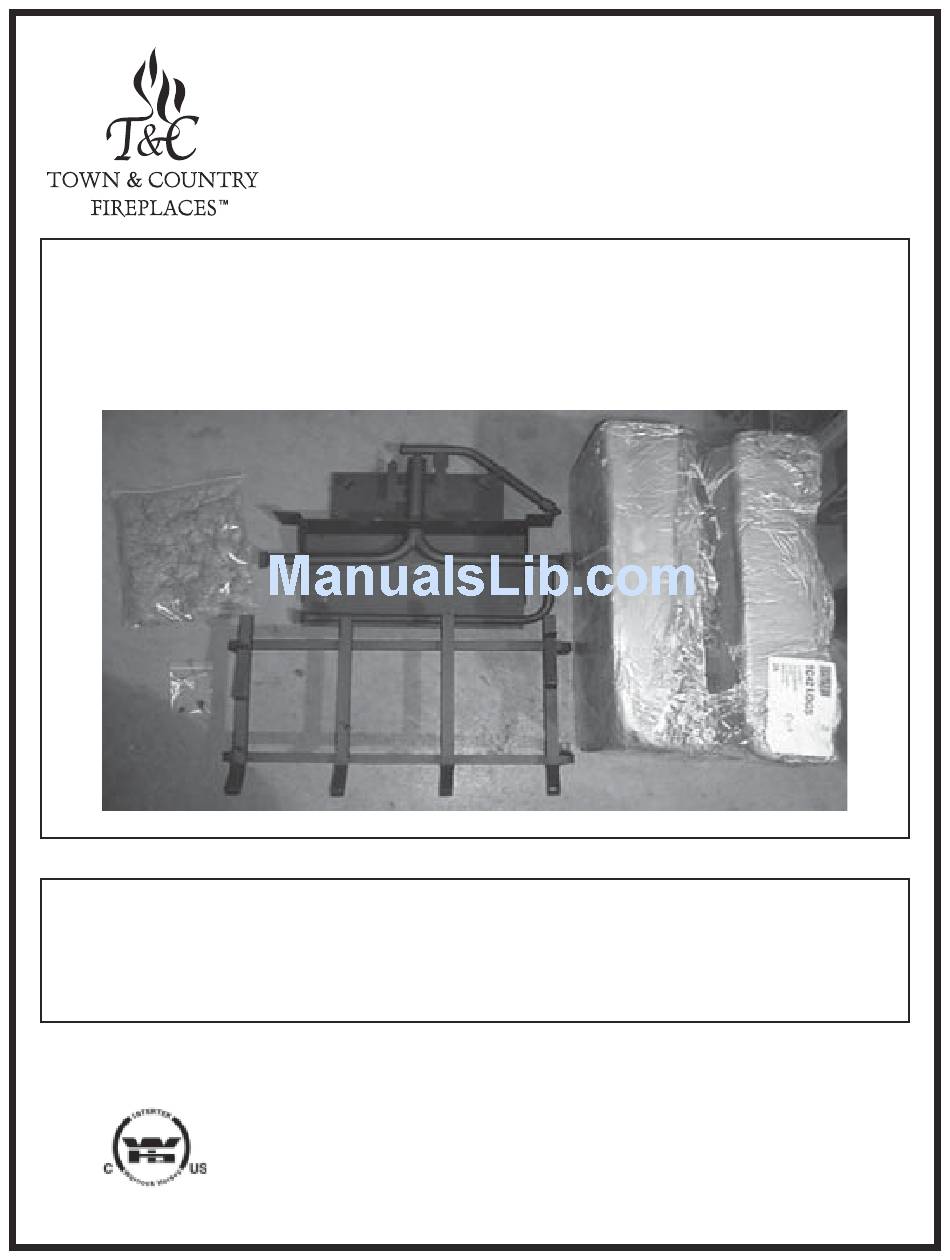

- Page 1 CHALET BURNER KIT TC42.NG01 PACKAGE CONTENTS: • BURNER ASSEMBLY PART # TC42.908501 • LOG GRATE PART # TC42.9081 • TC42 LOGS PART # 5098.31061 • EMBER MATERIAL PART # 5096.981.B • HARDWARE PACKAGE PART # TC36.NGHDWR These instructions are supplementary to the Installation and Operating Instructions supplied with the fi replace and should be kept together.
-
Page 2: Control Box Relocation
3) Install Panel Set (Refer to “Firebox Panels Installation” in the burner/grate assembly. See Installation and Operating the Installation and Operating Instructions manual) Instructions manual for details. INLET BOX Fig. # 1 Fig. # 3 REPOSITION MANIFOLD INSERT CONTROL ASSEMBLY TC42.NG01 110505-8... -
Page 3: Burner Tray Installation
See Fig. # 6. MILLIVOLT PILOT ATTACH PILOT BRACKET TO Fig. # 4 BURNER ASSEMBLY Fig. # 6 BURNER TRAY INSTALLATION GRATE INSTALLATION 110505-8 TC42.NG01... -
Page 4: Glowing Embers
Install the middle log into the space between the left log and the front of the grate as shown. Place the two remaining small logs on the fl oor of the fi rebox as shown. TC42.NG01 110505-8... - Page 5 Right Log Placement Step 5 Bottom Left Log Placement Note: Improper placement of logs may cause sooting on in- ternal parts and glass. The logs may need to be repositioned slightly to avoid excessive fl ame impingement. Fig. #11 110505-8 TC42.NG01...
-
Page 6: Burner Flame Adjustment
3) Loosen the screw in the Primary Air Shutter. be set to create sooting on internal parts and glass. 4) Rotate the shutter to increase or decrease the amount of primary air. Fig. # 13 HERRINGBONE PANEL SET WITH OPTIONAL ANDIRONS SHOWN TC42.NG01 110505-8... -
Page 7: Replacement Parts
5.... PILOT SHIELD ........... 9085.8 ..BOTTOM LEFT, #5 (shown in fig.#11) ..5098.3105 6.... BURNER TRAY SUPPORT SHIELD ..9089.01 ..BOTTOM CENTRE, #6 (shown in fig.#11) . 5098.3106 7.... BURNER TRAY SHIELD GASKET ....9047 Fig. # 14 IDENTIFICATION NUMBER 110505-8 TC42.NG01... - Page 8 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Phone: 1-888-223-0088 Printed in Canada...
