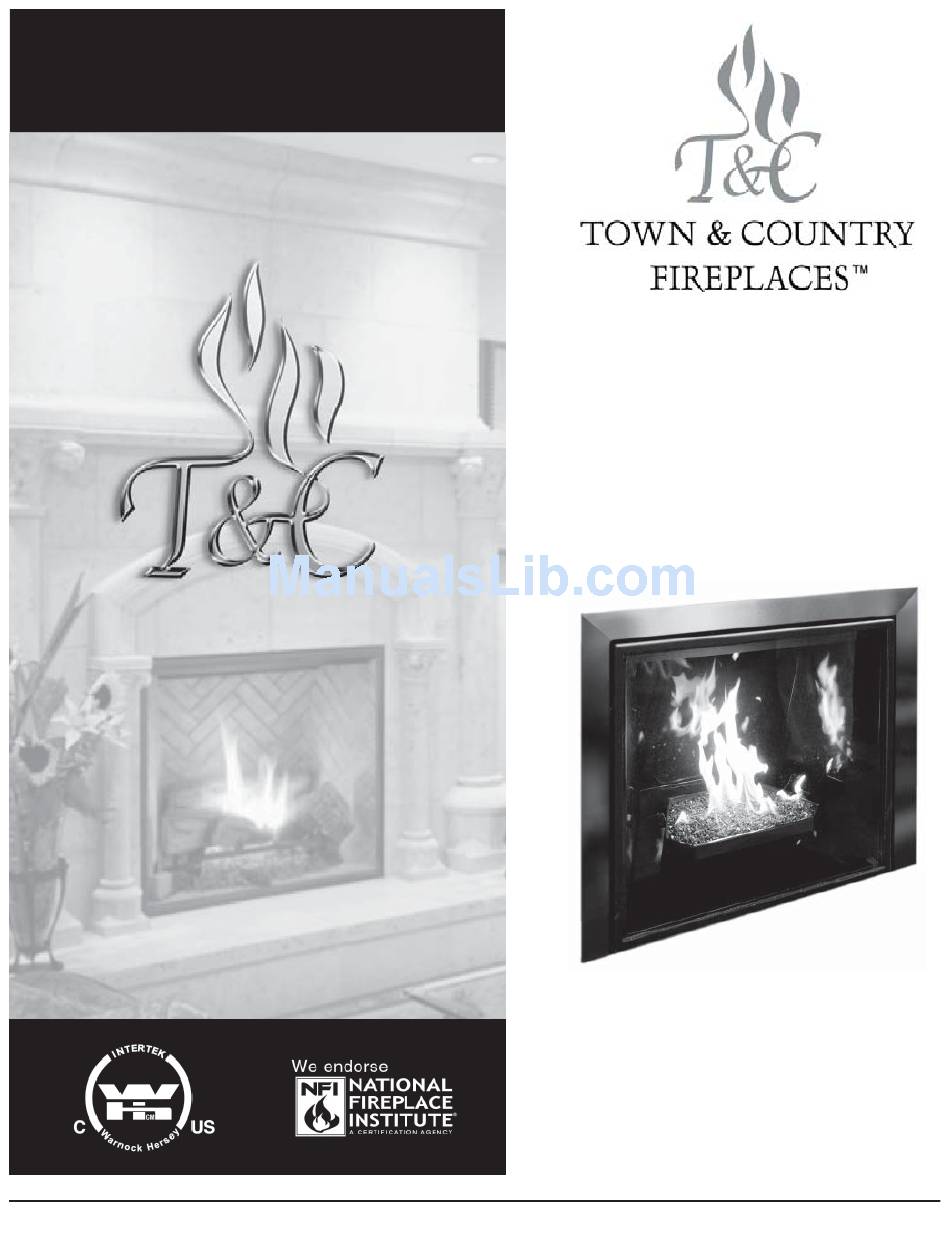

Town & Country Fireplaces TC36 Instruction Manual

Tc36 black diamond burner kit
Hide thumbs Also See for TC36:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, Instruction and Installation Manual
IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
080706-12
TC36
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
PART#
TC36.NG03.C.
FOR TC 36
TC36.NG03.C
5056.427.C3

Advertisement

Table of Contents
loading

Related Manuals for Town & Country Fireplaces TC36

Summary of Contents for Town & Country Fireplaces TC36

  • Page 1 These instructions are supplementary to the Installation and Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TC36 BLACK DIAMOND BURNER KIT INSTRUCTIONS PART# TC36.NG03.C.
  • Page 2 PACKAGE CONTENTS: NOTE: MUST BE USED WITH PORCELAIN PANEL SET PART# TC36.PNLPBKB • BURNER TUBE • MEDIA SPACER, Rear • BURNER TRAY ASSY • MEDIA SPACER, Front • 5 lbs. TUMBLED GLASS • MEDIA SPACER, Center • BURNER SHIELD •...
  • Page 3 This must be done at the same time as installing the porcelain side panels. Fig. # 1 ATTACH SPARK ELECTRODE AND SENSOR LEADS INSTALL MANIFOLD ASSEMBLY Fig. # 5 Fig. # 2 POSITIONING PANEL CLIPS ATTACH MANIFOLD SUPPLY TUBE 080706-12 TC36.NG03.C...
  • Page 4 6) Attach pilot shield to burner tray with two screws. (Fig. # 9) Fig. # 6 Fig. # 8 INSTALLING BURNER SHIELD BURNER TRAY PLACEMENT Fig. # 9 Fig. # 7 INSTALLING BURNER SHIELD SPRING NUTS PILOT SHIELD ATTACHMENT TC36.NG03.C 080706-12...

  • Page 5: Burner Installation

    Natural gas. 9) Install the center media spacer. (Fig # 14) Fig. # 10 BURNER INSTALLATION Fig. # 13 REAR MEDIA SPACER BURNER INSTALLATION Fig. # 11 Fig. # 14 FRONT MEDIA SPACER CENTER MEDIA SPACER 080706-12 TC36.NG03.C...
  • Page 6 11) Apply just enough tumbled glass to cover the burner assembly. (Fig # 16) NOTE: Too much tumbled glass over the burner will cause sooting with the use of propane gas Fig. # 15 LOWER REAR PANEL Fig. # 16 TUMBLED GLASS PLACEMENT TC36.NG03.C 080706-12...

  • Page 7: Propane Conversion

    3) Apply a small amount of pipe joint compound to the threads of the propane burner orifi ce (marked #45) to ensure a good seal, before screwing it into the fi tting. 4) Open primary air shutter fully. 080706-12 TC36.NG03.C...
  • Page 8 Insert a thin tool (knife blade or fi ne screwdriver blade) into the groove and gently pry the screw up. It helps to rotate the screw while lifting on it. TC36.NG03.C 080706-12...

  • Page 9: Gas Pressure Check

    (Fig. # 26) CORRECT GAS PRESSURE REQUIREMENT: Supply Pressure Natural Gas Propane (For purpose of input adjustment) Minimum 5.0” wc 12.5” wc Maximum 13.9” wc 13.9” wc Manifold Pressure Maximum 3.8” wc 11.0” wc Minimum 2.1” wc 5.5” wc 080706-12 TC36.NG03.C...
  • Page 10 4) Rotate the shutter to increase or decrease the amount of primary air. The fl ame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. Fig. # 28 TC36.NG03.C 080706-12...

  • Page 11: Replacement Parts

    LOCATED IN THE APPLIANCE INSTRUCTIONS ITEM..DESCRIPTION ........PART NO. ITEM ..DESCRIPTION ........PART NO. 11 ...PILOT SUPPORT ........9625 1.... BURNER TUBE ......TC36.5011835 12 ...TRIM, FRONT ..........9633 2.... ORIFICE, NG ........... 5022.13 13 ...SHIELD LEG ..........9620 ....ORIFICE, LP ..........5021.34 14 ...PANEL CLIP ..........
  • Page 12 TECHNICAL SUPPORT: 1-877-715-2664 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
