3.2 System Assembly 2

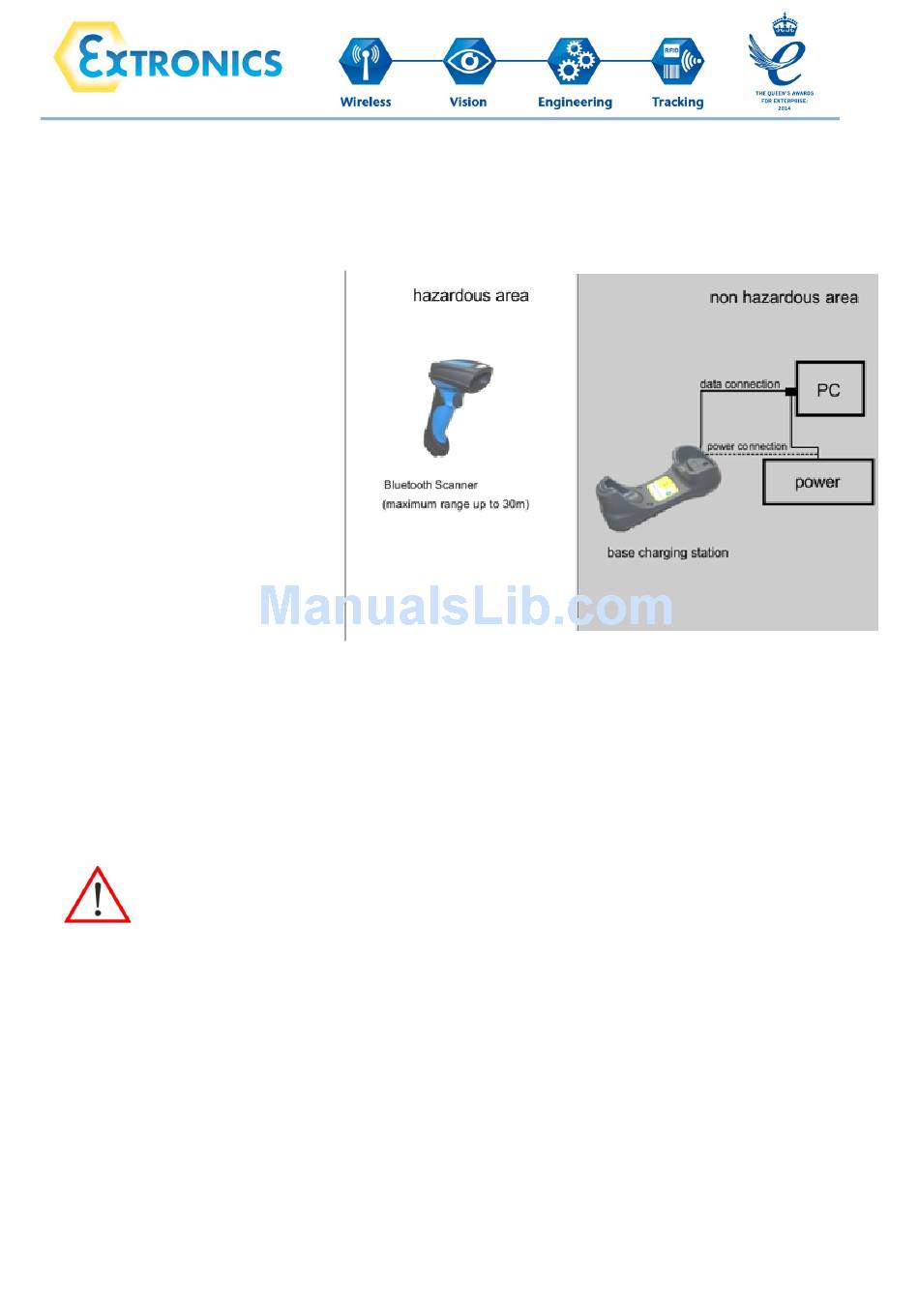

Overview of the complete
system assembly 2,
Bluetooth handheld scanner
iSCAN201
Assembly with base charging
station in non-hazardous areas
Description:
The Bluetooth handheld iSCAN201 scanner can also be used separately in the hazardous area.
The base charging station is then operated in the non-hazardous area.
Use an RS232 cable or a USB cable to connect the station directly to a power supply and a PC.
The warnings and notes of caution contained in these operating instructions and in the
manual issued by SICK AG (www.SICK.com) must be adhered to.
Operating Instructions_iSCAN201_001 10
