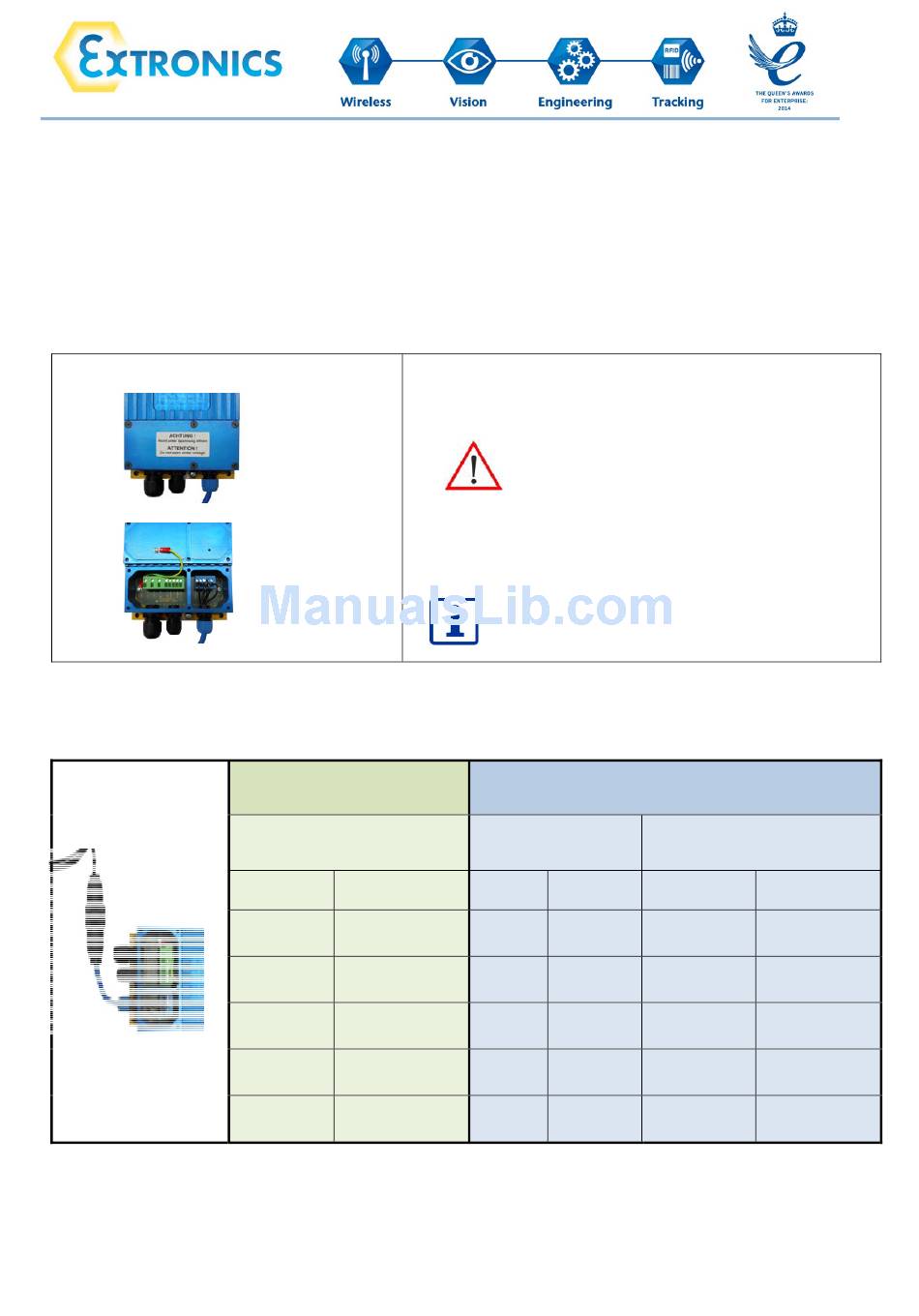

4.4 Pin assignment power supply with RS232 interface

Supply of the base charging station according to system assembly 1 with plug connection
Connection of base charging station to the RS232 power supply with plug connection
Operating Instructions_iSCAN201_001
Base connection cable RS232
Typ.: ISCAN201CAB5 or 6
Pin assignment connection
coupling
Pin
Definition
3
TxD
2
GND
1
+UB
The pin assignment is located underneath the removable cover at the
front of the power supply.
Caution! Do not open enclosure in the hazardous
area!
Before operating the device in a hazardous area you have to ensure
that the enclosure has been closed fully and all screws have been
tightened.
Any changes to the terminal assignment may only be
carried out by trained staff.
Power Supply
Typ.: ISCANPS1 or 3
Pre-assembled
Connecting coupling
Pin
Wire
3
3
2
2
1
1
Connection box
Definition
Number
RxD
X9
GND
X10
PE
X11
GND
X12
+UB
X13
16
