extronics iSCAN201 User Manual page 18

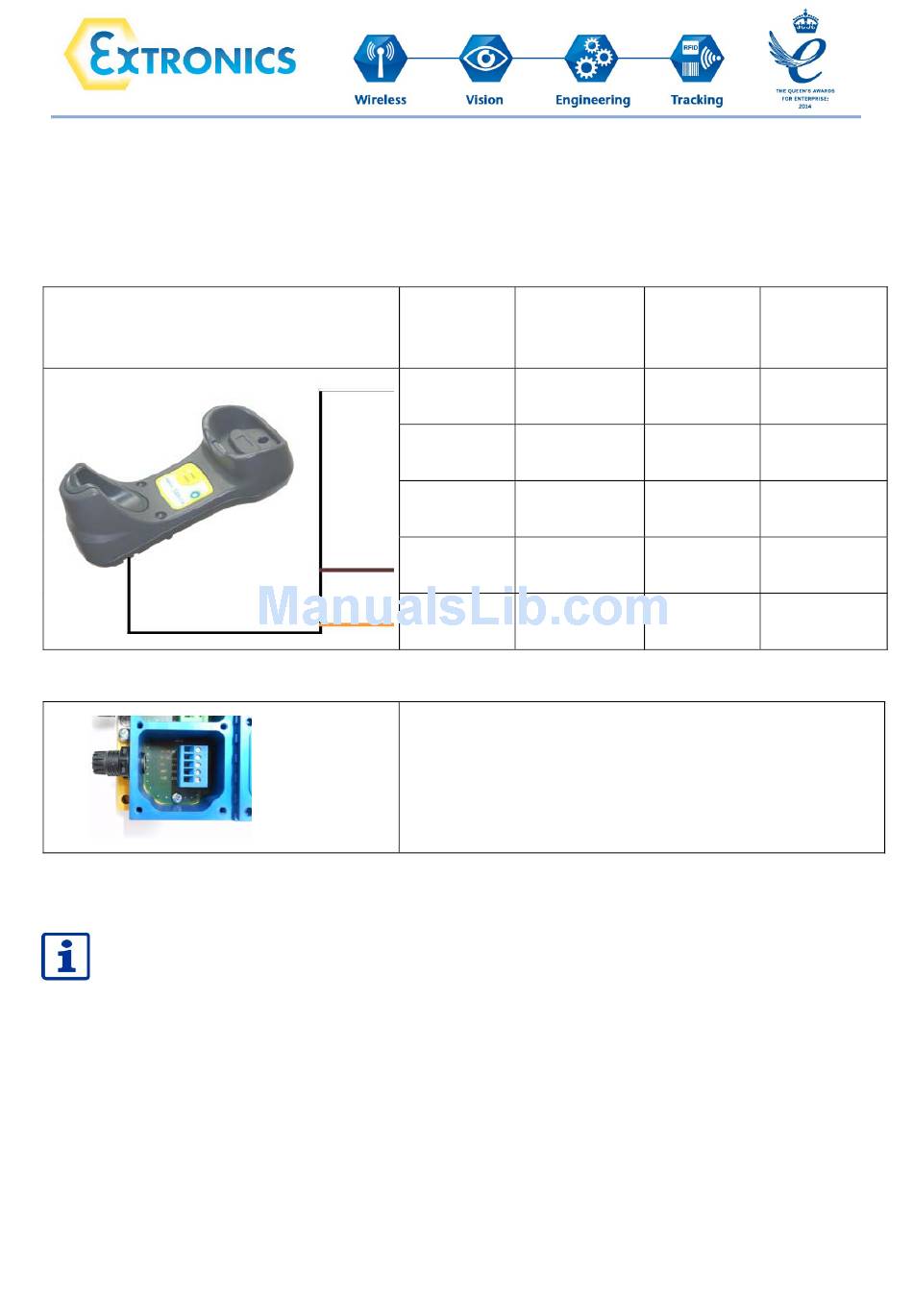

Direct connection of the base charging station (ISCAN201EXB) without plug connection to the power
supply with RS232 interface (ISCANPS1 or 3)
Connection of base charging station RS232 ISCAN201CAB5 or 6 - Connection with cable end sleeves
Base charging station ISCAN201 RS232
To fully operate the handheld ISCAN201 scanner you will require the programming information contained in
the manual published by SICK AG (www.SICK.com).
RJ 45
Pin Wire colours
assignment
6 White
7 Brown
3 Yellow
intrinsically safe connection box
of the ISCANPS1 or 3 power supply
after removal of the wires of the plug connection
Definition Assignment
TXD X9
X10
X11
GND X12
+UB X13
