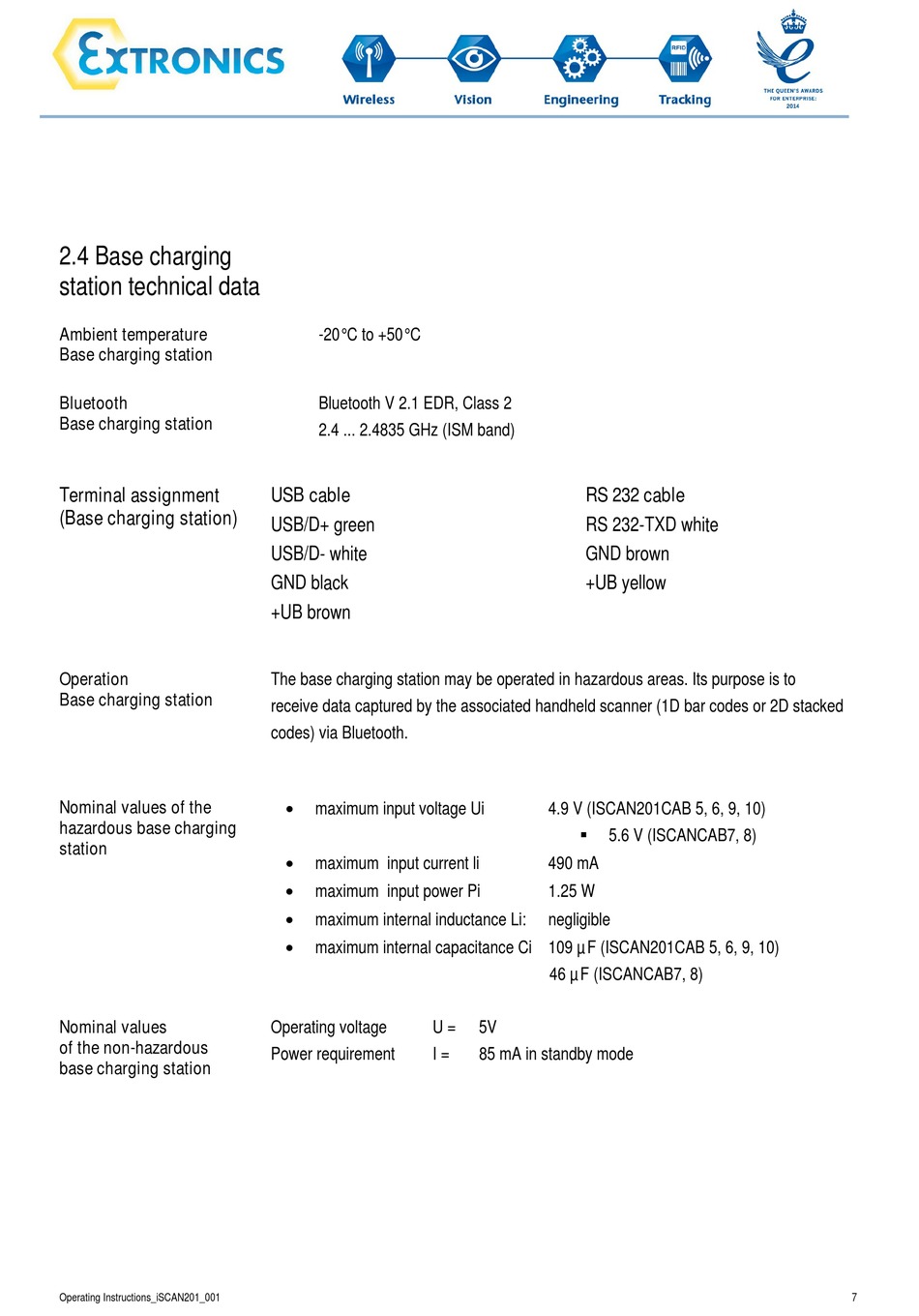

2.4 Base charging
station technical data
Ambient temperature
Base charging station
Bluetooth
Base charging station
Terminal assignment
(Base charging station)
Operation
Base charging station
Nominal values of the
hazardous base charging
station
Nominal values
of the non-hazardous
base charging station
Operating Instructions_iSCAN201_001
-20°C to +50°C
Bluetooth V 2.1 EDR, Class 2
2.4 ... 2.4835 GHz (ISM band)
USB cable
USB/D+ green
USB/D- white
GND black
+UB brown
The base charging station may be operated in hazardous areas. Its purpose is to
receive data captured by the associated handheld scanner (1D bar codes or 2D stacked
codes) via Bluetooth.

maximum input voltage Ui

maximum input current li

maximum input power Pi

maximum internal inductance Li:

maximum internal capacitance Ci 109 µF (ISCAN201CAB 5, 6, 9, 10)
Operating voltage U =
Power requirement I =
RS 232 cable
RS 232-TXD white
GND brown
+UB yellow
4.9 V (ISCAN201CAB 5, 6, 9, 10)
5.6 V (ISCANCAB7, 8)

490 mA
1.25 W
negligible
46 µF (ISCANCAB7, 8)
5V
85 mA in standby mode
