4.3 Using the base charging station for system assembly 2 (non-hazardous areas)

Operating Instructions_iSCAN201_001

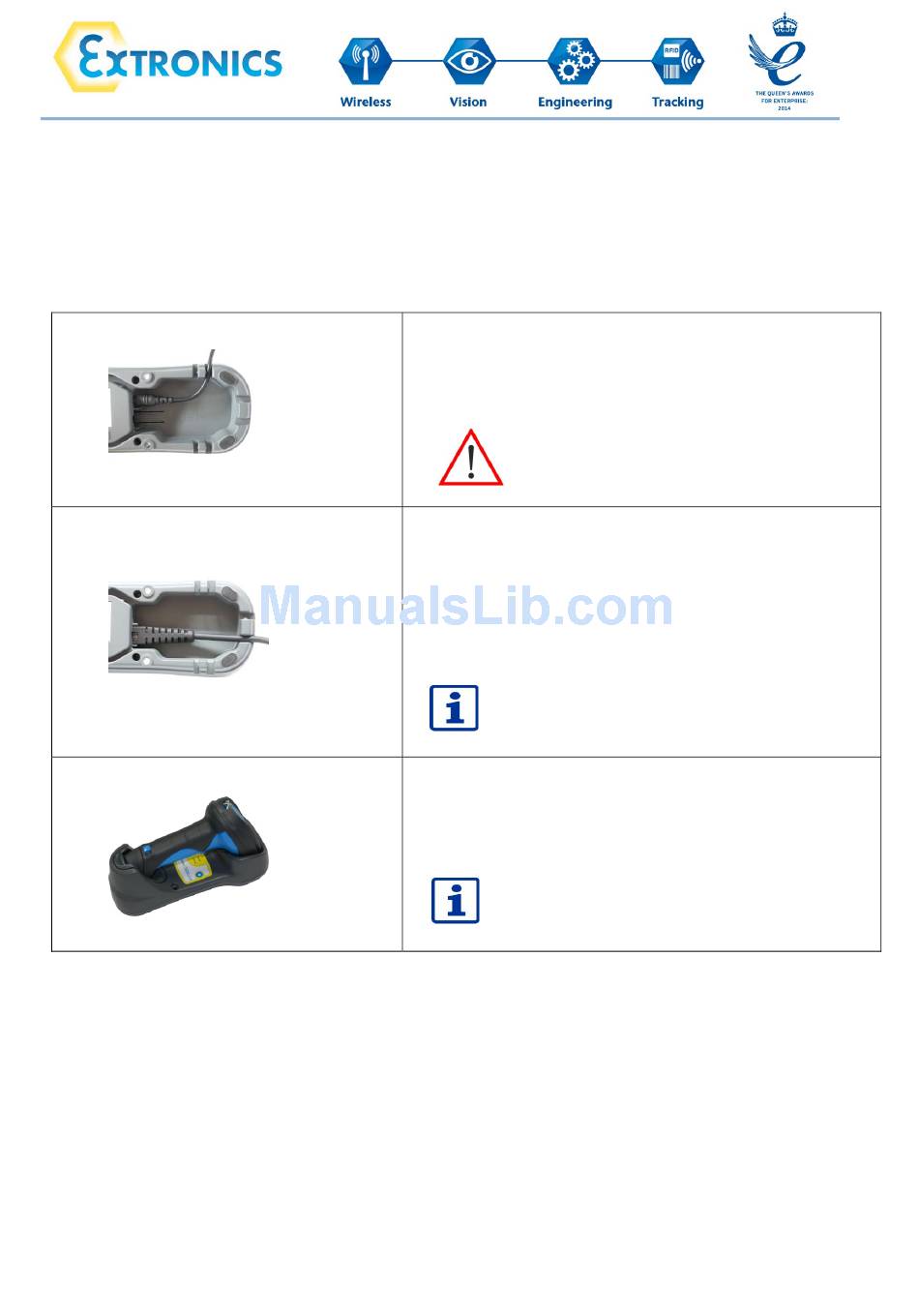

Use power supply iSCAN201BL to load the scanner with a non-
explosion-protected base charging station in a non-hazardous area.
This connection is closed ex-factory for a base
charging station for hazardous areas.
To connect the base charging station in a non-hazardous area, the
connection cable for the power supply and the PC is inserted in the
opening at the bottom of the base charging station. Use
ISCAN201CAB1 or 2 as a RS232 cable, and ISCAN201CAB 3 or 4
as a USB cable.
If the cable has been inserted fully you can hear a
"click". Check that the cable fits firmly.
Place the ISCAN201 handheld scanner onto the charging station.
Insert the lower part of the handle to ensure that the contacts for
charging are connected properly.
The LED at the head of the scanner will come on to
indicate successful charging.
