4. System assembly

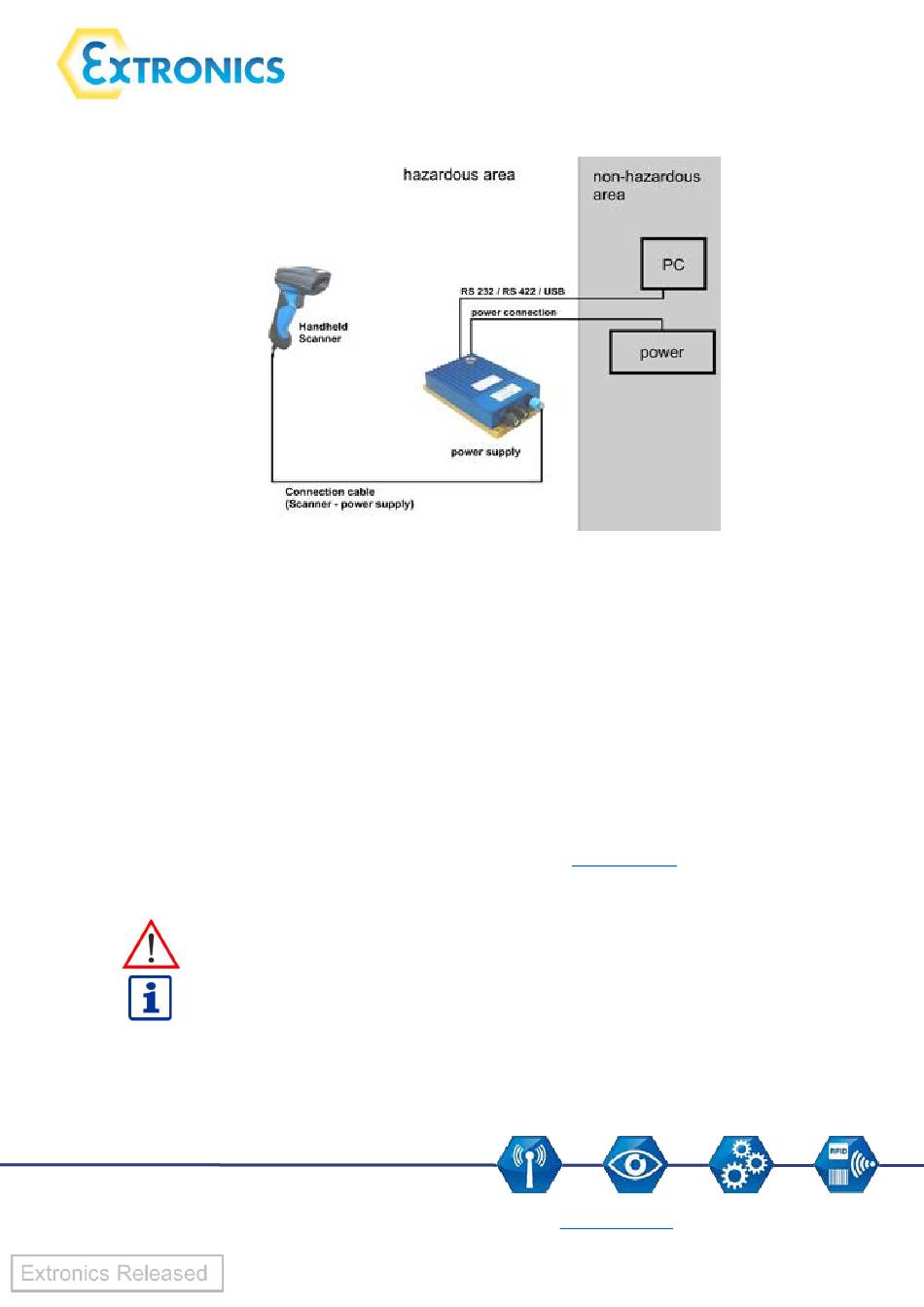

4.1 Assembly description

The wired handheld scanner was designed for use in hazardous areas. Normal operation requires a
power supply, a connection cable between power supply and scanner, and connection cable(s)
between power supply and a PC.
External connection cables:
Data cable:
Power cable:
The handheld scanner and the power supply can be connected and operated in the hazardous area.
For safe installation please refer to the manual issued by SICK AG (www.SICK.com)
The warnings and notes of caution contained in these operating instructions and in the
manual issued by SICK AG (www.SICK.com) must be adhered to.
For the professional use of the power supply iSCANPSX the operating instructions of
the manual of the power supply are necessary.
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
USB 0.2 - 2.5 mm², 4-wire
RS232 0.2 - 2.5 mm², 3-wire
0.2 - 2.5 mm², 3-wire
