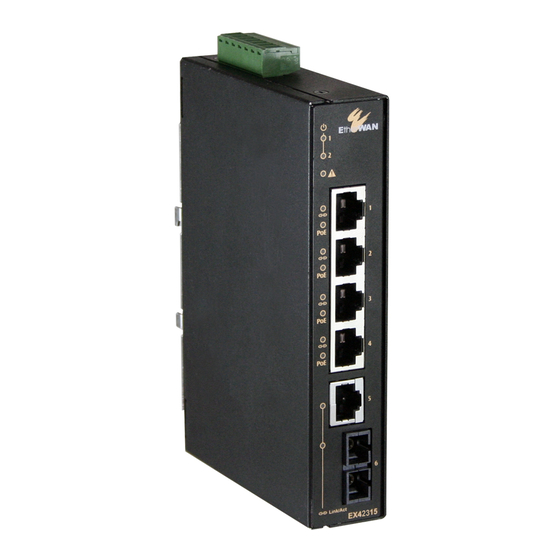

EX42300 series
www.etherwan.com

Quick Start Guide

This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch. Capable of operating at
temperature extremes of -40°C to +75°C, this is the switch of
choice for harsh environments constrained by space.

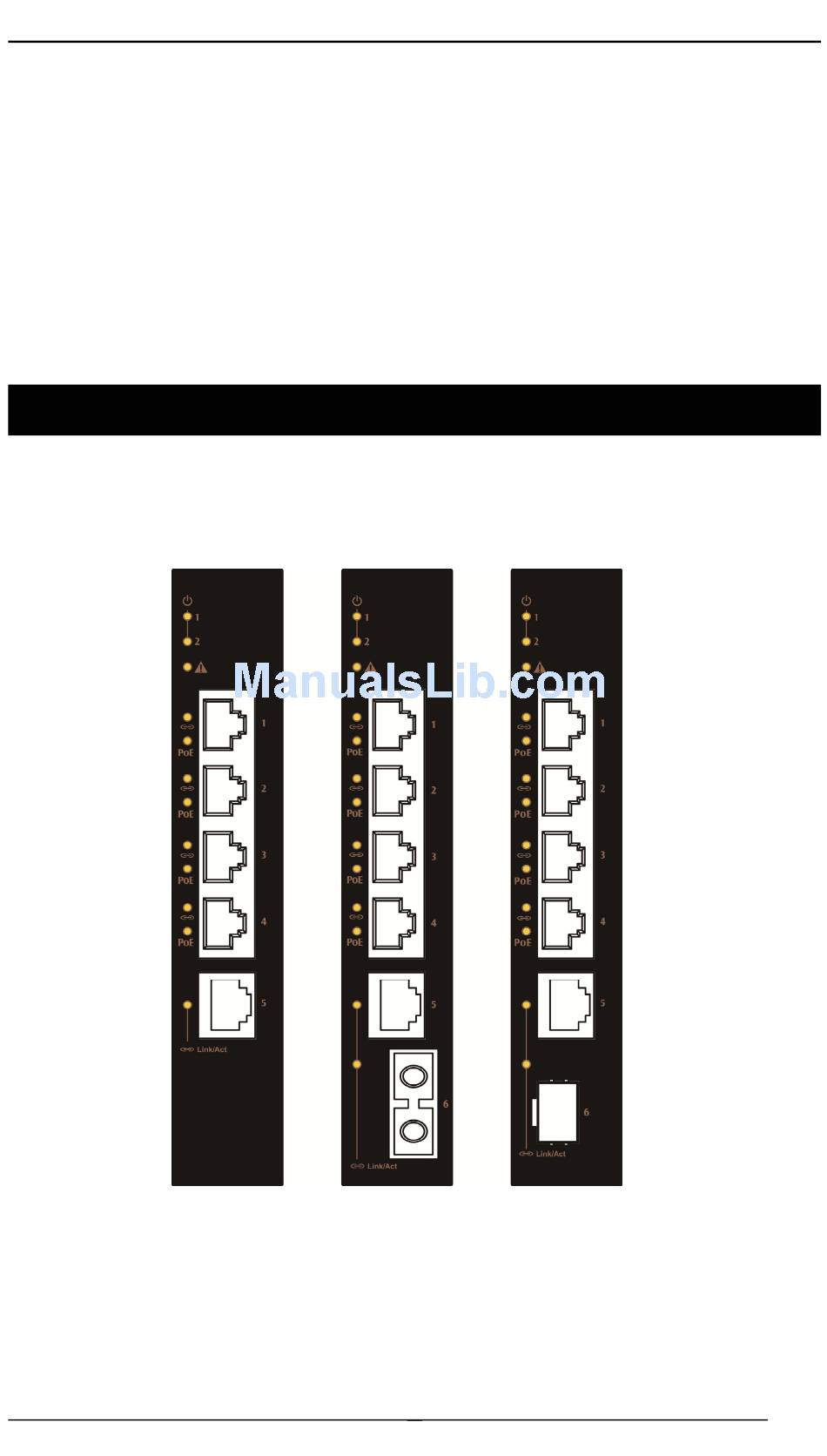

Physical Description
The Port Status LEDs
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX42300 series and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN EX42300 series

Summary of Contents for EtherWAN EX42300 series

  • Page 1: Quick Start Guide

    EX42300 series www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Hardened PoE Ethernet Switch. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space.

  • Page 2: The Terminal Block And Power Inputs

    EX42300 series www.etherwan.com State Indication Steady Power on. Power (Green) Power off. Steady Relay starts alarm. Fault (Red) Relay non-alarm. 10/100TX Ports Steady A valid network connection established. Transmitting or receiving data. Link/Act (Green) Blinking Act stands for Activity. No link.

  • Page 3: Dip Switch Settings

    EX42300 series www.etherwan.com Power Input Assignment 24/48VDC ＋ Power1 Power Ground － Terminal Block 24/48VDC ＋ Power2 Power Ground － Earth Ground Relay Output Rating 1A @ 250VAC DC Terminal Block Power Input: The DC Terminal Block power input can be used to power up this Switch.
  • Page 4 EX42300 series www.etherwan.com The 10/100Base-TX (PoE) and Gigabit Ethernet Connectors 1. The 10/100Base-TX Connections The following lists the pinouts of 10/100Base-TX ports. Pin Signal Name Signal Definition TD＋ Output Transmit Data ＋ TD－ Output Transmit Data － RD＋ Input Receive Data ＋...
  • Page 5 EX42300 series www.etherwan.com Regular Ports Uplink port TP0＋ Transmit and Receive Data 0 ＋ TP0－ Transmit and Receive Data 0 － TP1＋ Transmit and Receive Data 1 ＋ TP2＋ Transmit and Receive Data 2 ＋ TP2－ Transmit and Receive Data 2 －...
  • Page 6 EX42300 series www.etherwan.com Functional Description  Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment.  Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX.  1000Base-SX/LX: Multi mode SC or ST type, Single mode SC type. 1000Base-BX: WDM Single mode SC type.
  • Page 7 EX42300 series www.etherwan.com Assembly, Startup, and Dismantling  Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place.  Startup: Connect the supply voltage to start up the switch via the terminal block.

  • Page 8: Preface

    EX42300 series www.etherwan.com Preface This manual describes how to install and use the Hardened PoE Ethernet Switch. This switch introduced here is capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space.

  • Page 9: Table Of Contents

    EX42300 series www.etherwan.com Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Port Status LEDs The Terminal Block and Power Inputs DIP Switch Settings The 10/100Base-TX (PoE) and Gigabit Ethernet Connectors UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS...

  • Page 10: Product Overview

    EX42300 series www.etherwan.com Product Overview Hardened PoE Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

  • Page 11: Basic Features

    EX42300 series www.etherwan.com Product Highlights Basic Features  Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment.  Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX.  1000Base-SX/LX: Multi mode SC or ST type, Single mode SC type. 1000Base-BX: WDM Single mode SC type.

  • Page 12: Port Status Leds

    EX42300 series www.etherwan.com  Power Supply: Redundant 24/48VDC Terminal Block power inputs.  Operating temperature ranges from -40°C 75°C (-40°F to 167°F).  Slim design with DIN-Rail mount installation. Front Panel Display 　Power Status (PWR) This LED comes on when the switch is properly connected to power and turned on.
  • Page 13 EX42300 series www.etherwan.com State Indication Steady Power on. Power (Green) Power off. Steady Relay starts alarm. Fault (Red) Relay non-alarm. 10/100TX Ports Steady A valid network connection established. Transmitting or receiving data. Link/Act (Green) Blinking Act stands for Activity. No link.

  • Page 14: Installation

    EX42300 series www.etherwan.com Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.

  • Page 15: Din Rail

    EX42300 series www.etherwan.com DIN Rail Mounting Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the switch...

  • Page 16: Dc Terminal Block Power Inputs

    EX42300 series www.etherwan.com Connecting to Power DC Terminal Block Power Inputs Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet. Step 2: Disconnect the power cord if you want to shut down the switch.

  • Page 17: Cable Type & Length

    EX42300 series www.etherwan.com Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed...
  • Page 18 EX42300 series www.etherwan.com Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use.

  • Page 19: Specifications

    EX42300 series www.etherwan.com Specifications Hardened PoE 4 x 10/100Base-TX ports (PoE) + 1-port Ethernet Switch 10/100/1000Base-TX + 1-port 1000Base-SX/LX/BX/SFP Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX IEEE 802.1x Full-duplex Flow Control IEEE 802.1az Energy Efficient Ethernet IEEE 802.1p Quality of Service (QoS)
  • Page 20 EX42300 series www.etherwan.com EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test IEC60068-2-6 Fc (Vibration) Compliance IEC60068-2-27 Ea (Shock) FED STD 101C Method 5007.1 (Free Fall w/...
