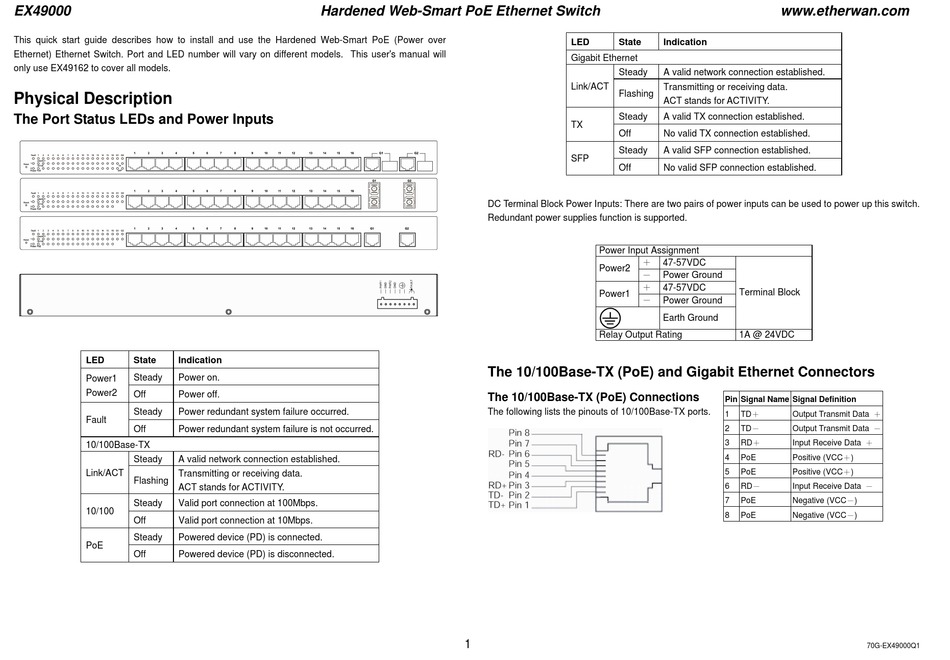

EtherWAN EX49000 Quick Start Manual

EX49000
This quick start guide describes how to install and use the Hardened Web-Smart PoE (Power over
Ethernet) Ethernet Switch. Port and LED number will vary on different models. This user's manual will
only use EX49162 to cover all models.

Physical Description

The Port Status LEDs and Power Inputs
LED State Indication
Steady Power on.
Power1
Power2
Off Power off.
Steady Power redundant system failure occurred.
Fault
Off Power redundant system failure is not occurred.
10/100Base-TX
Steady A valid network connection established.
Link/ACT Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
Steady Valid port connection at 100Mbps.
10/100
Off Valid port connection at 10Mbps.
Steady Powered device (PD) is connected.
PoE
Off Powered device (PD) is disconnected.
Hardened Web-Smart PoE Ethernet Switch
DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this switch.
Redundant power supplies function is supported.
The 10/100Base-TX (PoE) and Gigabit Ethernet Connectors
The 10/100Base-TX (PoE) Connections
The following lists the pinouts of 10/100Base-TX ports.
1
LED State Indication
Gigabit Ethernet
Steady A valid network connection established.
Link/ACT
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
Steady A valid TX connection established.
TX
Off No valid TX connection established.
Steady A valid SFP connection established.
SFP
Off No valid SFP connection established.
Power Input Assignment
＋
47-57VDC
Power2
－
Power Ground
＋
47-57VDC
Terminal Block
Power1
－
Power Ground
Earth Ground
Relay Output Rating 1A @ 24VDC
Pin Signal Name Signal Definition
1 TD＋
2 TD－
3 RD＋
4 PoE
5 PoE
6 RD－
7 PoE
8 PoE
www.etherwan.com
Output Transmit Data ＋
Output Transmit Data －
Input Receive Data ＋
Positive (VCC＋)
Positive (VCC＋)
Input Receive Data －
Negative (VCC－)
Negative (VCC－)
70G-EX49000Q1
