Quick Start Guide
This quick start guide describes how to install and use the
Hardened Ethernet Switch. This is the switch of choice for
harsh environments constrained by space.

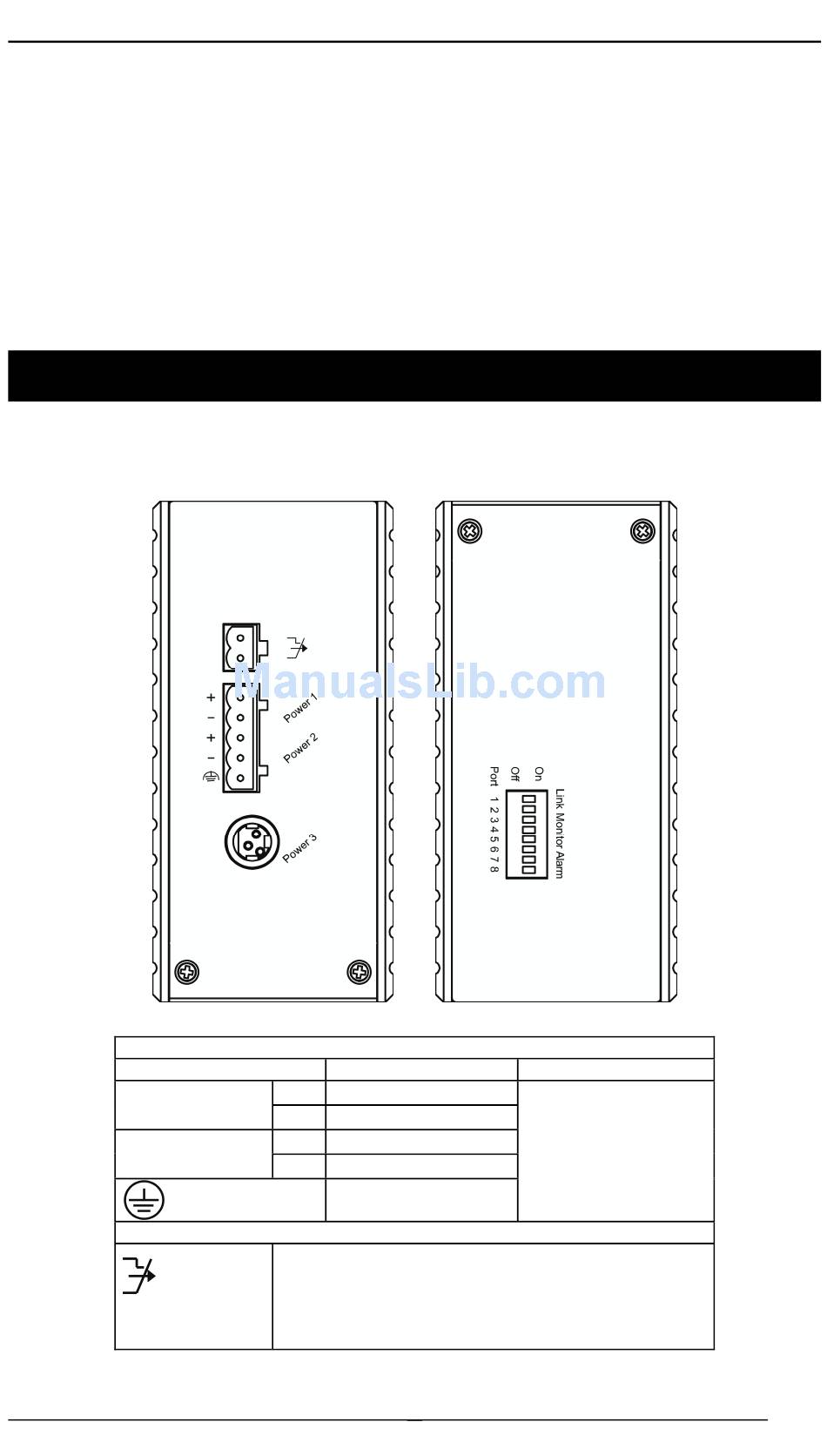

Physical Description
The Terminal Block and Power inputs
Power Input Assignment
Power3
Power2
Power1
Relay Alarm Assignment
FAULT

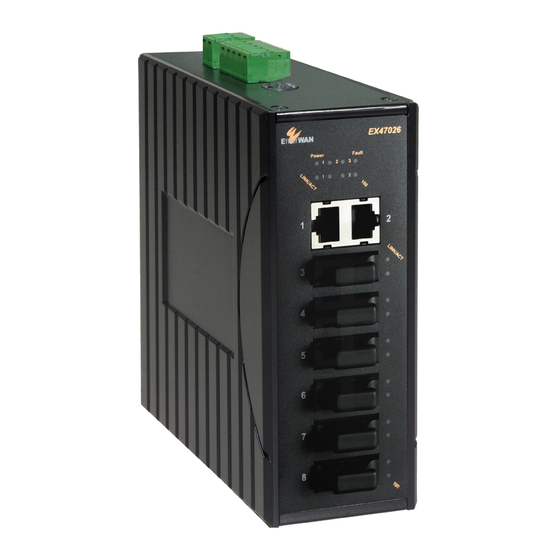

Hardened Ethernet Switch
12VDC
12-48VDC
＋
Power Ground
－
12-48VDC
＋
Power Ground
－
Earth Ground
*Relay warning signal disable for following:
•
The relay contact closes if Power1 and
Power2 are both failed but Power3 on.
•
The relay contact closes if Power3 is failed
but Power1 and Power2 are both on.
1
DC Jack
Terminal Block
Advertisement
Table of Contents
Related Manuals for EtherWAN EX47026-10B
Summary of Contents for EtherWAN EX47026-10B
-
Page 1: Quick Start Guide
Hardened Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the Hardened Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Terminal Block and Power inputs Power Input Assignment Power3 12VDC... -
Page 2: The 10/100Base-Tx And 100Base-Fx/Bx Connectors
Hardened Ethernet Switch DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this switch. Redundant power supplies function is supported. The 10/100Base-TX and 100Base-FX/BX Connectors The 10/100Base-TX Connections The following lists the pinouts of 10/100Base-TX ports. Regular Ports Uplink port Output Transmit Data +... - Page 3 Hardened Ethernet Switch required to transmit and receive data. The Port Status LEDs...
- Page 4 Hardened Ethernet Switch State Indication Power Switch is properly connected to power and turned Power 1 Steady Power 2 Switch is not connected to power and is turned Power 3 off. Fault • Power redundant system failure occurred. Steady • Port failure occurred (when link monitor alarm dip switch is enabled).
- Page 5 Hardened Ethernet Switch Functional Description • Complies with IEC61850-3 IEEE1613 environmental requirements for power substation automation systems. • Complies with EN50121-4 environmental requirements for railway applications. • Meets NEMA TS1 & TS2 environmental requirements for traffic control equipments. • Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.
- Page 6 Hardened Ethernet Switch Assembly, Startup, and Dismantling • Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. • Startup: Connect the supply voltage to start up the switch via the terminal block (or DC JACK).
-
Page 7: Preface
Hardened Ethernet Switch Preface A member of the growing family of rugged switches, this switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications. -
Page 8: Table Of Contents
Hardened Ethernet Switch Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Terminal Block and Power inputs The 10/100Base-TX and 100Base-FX/BX Connectors The Port Status LEDs UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED THERNET WITCH ACKAGE ONTENTS RODUCT... -
Page 9: Product Overview
Hardened Ethernet Switch Product Overview Hardened Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. This Switch User’s Manual External power adapter &... -
Page 10: Basic Features
Hardened Ethernet Switch Product Highlights Basic Features • Complies with IEC61850-3 IEEE1613 environmental requirements for power substation automation systems. • Complies with EN50121-4 environmental requirements for railway applications. • Meets NEMA TS1 & TS2 environmental requirements for traffic control equipments. •... -
Page 11: Status Leds
Hardened Ethernet Switch Front Panel Display Status LEDs... -
Page 12: Ports
Hardened Ethernet Switch State Indication Power Switch is properly connected to power and turned Power 1 Steady Power 2 Switch is not connected to power and is turned Power 3 off. Fault • Power redundant system failure occurred. Steady • Port failure occurred (when link monitor alarm dip switch is enabled). -
Page 13: Installation
Hardened Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. - Page 14 Hardened Ethernet Switch DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the switch. Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place.
-
Page 15: Redundant Dc Terminal Block Power Inputs
Hardened Ethernet Switch Connecting to Power Redundant DC Terminal Block Power Inputs and 12VDC DC Jack: Redundant DC Terminal Block Power Inputs There are two pairs of power inputs can be used to power up this device. You only need to have one power input connected to run the switch. -
Page 16: Alarms For Power Failure
Hardened Ethernet Switch Alarms for Power Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection. -
Page 17: Connecting To Your
Hardened Ethernet Switch Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable pecifications Speed Connector Port Speed Cable... -
Page 18: Cabling
Hardened Ethernet Switch Cabling Step 1: First, ensure the power of the switch and end devices are turned off. <Note> Always ensure that the power is off before any installation. Step 2: Prepare cable with corresponding connectors for each type of port in use. -
Page 19: Switch
Hardened Ethernet Switch Specifications Hardened Ethernet 10/100Base-TX auto-negotiating ports with RJ-45 connectors, 100Base-FX/BX fiber ports Switch Applicable IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX Standards Switching Method Store-and-Forward Forwarding Rate 10Base-T: 10 / 20Mbps half / full-duplex 100Base-TX: 100 / 200Mbps half / full-duplex 100Base-FX/BX: 200Mbps full-duplex Performance... - Page 20 Hardened Ethernet Switch EN61000-3-3 EN61000-6-2 EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated FRI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free Fall) IEC61850-3 and IEEE1613 environmental requirements for substation and power automation systems EN50121-4 environmental requirements for railway applications...
- Page 21 Hardened Ethernet Switch Appendix A – Connector Pinouts Pin arrangement of RJ-45 connectors: RJ-45 Connector and Cable Pins The following table lists the pinout of 10/100Base-TX ports. Regular Ports Uplink port Output Transmit Data + Input Receive Data + Output Transmit Data - Input Receive Data - Input Receive Data + Output Transmit Data +...
