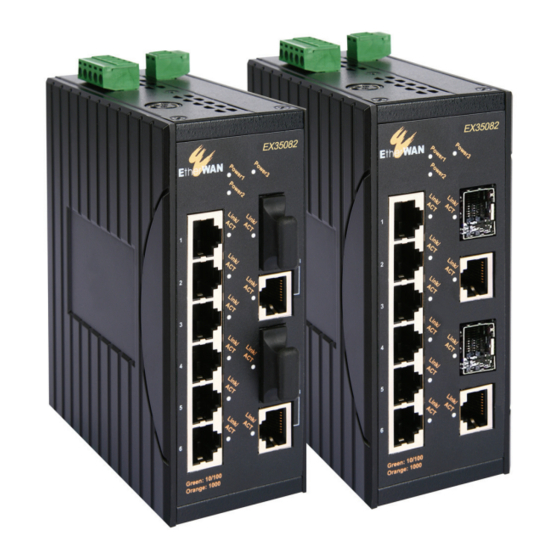

Quick Start Guide
This quick start guide describes how to install and use the
hardened Gigabit Ethernet Switch.
temperature extremes of -20°C to +60°C, this is the switch of
choice for harsh environments constrained by space.
Physical Description

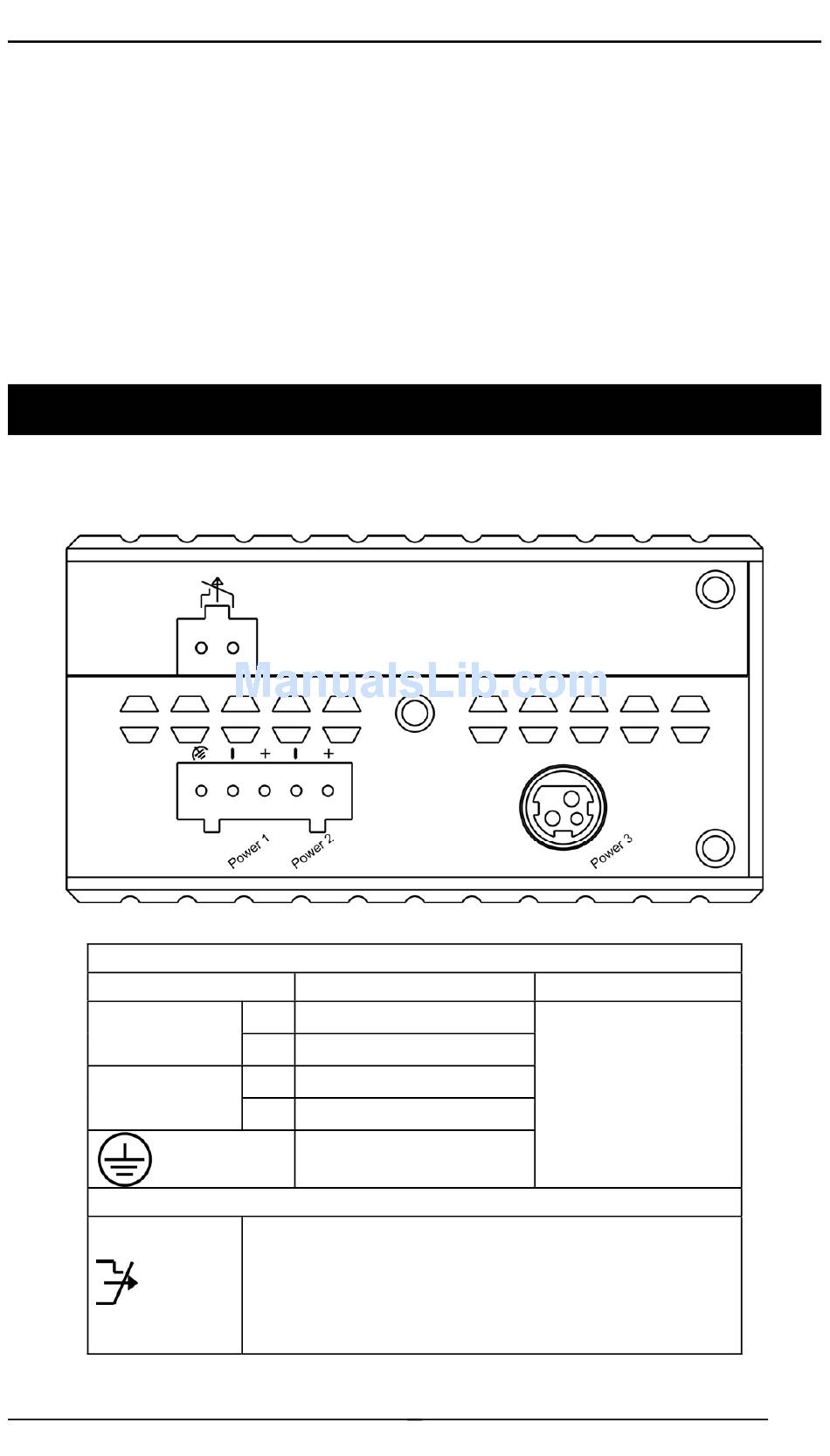

The Terminal Block and Power inputs
Power Input Assignment
Power3
Power2
Power1
Relay Alarm Assignment
FAULT
Industrial Ethernet Switch
12VDC
9-32VDC
＋
Power Ground
－
9-32VDC
＋
Power Ground
－
Earth Ground
*Warning signal disable for following:
1. The relay contact closes if Power1 and
Power2 are both failed but Power3 on.
2. The relay contact closes if Power3 is failed
but Power1 and Power2 are both on.
Capable of operating at
DC Jack
Terminal Block
1
Advertisement
Table of Contents
Related Manuals for EtherWAN EX35000 series
Summary of Contents for EtherWAN EX35000 series
- Page 1 Industrial Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the hardened Gigabit Ethernet Switch. Capable of operating at temperature extremes of -20°C to +60°C, this is the switch of choice for harsh environments constrained by space. Physical Description The Terminal Block and Power inputs Power Input Assignment...
-
Page 2: The 1000Base-T And 1000Base-Sx/Lx Connectors
Industrial Ethernet Switch DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this switch. Redundant power supplies function is supported. The 1000Base-T and 1000Base-SX/LX Connectors 1. The 1000Base-T Connections The following lists the pinouts of 1000Base-T port. 2. -
Page 3: The Port Status Leds
Industrial Ethernet Switch The Port Status LEDs State Indication 10/100Base-TX Steady A valid network connection established. Link/ACT (Green) Transmitting or receiving data. Flashing ACT stands for ACTIVITY. 1000Base-T/SX/LX Steady A valid network connection established. Link/ACT Transmitting or receiving data. (Orange) Flashing ACT stands for ACTIVITY. - Page 4 Industrial Ethernet Switch Functional Description Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment. Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x/802.1p. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex; Auto MDI/MDIX. 1000Base-SX/LX: Multi mode, Single mode, or WDM Single mode SC type. IEEE802.1p Queue Priority: Support 4 priority queues. Supports 8192 MAC addresses. Provides 1.125M bits buffer memory.
- Page 5 Industrial Ethernet Switch Assembly, Startup, and Dismantling Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Startup: Connect the supply voltage to start up the switch via the terminal block (or DC JACK).
-
Page 6: Preface
Industrial Ethernet Switch Preface A member of the growing family of rugged switches, this switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications. -
Page 7: Table Of Contents
Industrial Ethernet Switch Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Terminal Block and Power inputs The 1000Base-T and 1000Base-SX/LX Connectors The Port Status LEDs UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED IGABIT THERNET WITCH ACKAGE ONTENTS... -
Page 8: Product Overview
Industrial Ethernet Switch Product Overview Hardened Gigabit Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. This Switch User’s Manual External power adapter &... -
Page 9: Basic Features
Industrial Ethernet Switch Product Highlights Basic Features Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment. Supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x. 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex. Auto-Negotiation, Auto MDI/MDIX. 1000Base-SX/LX: Multi mode, Single mode, or WDM Single mode SC type. IEEE802.1p Queue Supports 4 priority queues. 8192 MAC addresses. - Page 10 Industrial Ethernet Switch Front Panel Display P ower Status (Power1, Power2, Power3) These LEDs come on when the switch is properly connected to power and turned on. P ort Status LEDs The LEDs display status for each respective port.
- Page 11 Industrial Ethernet Switch State Indication 10/100Base-TX Steady A valid network connection established. Link/ACT (Green) Transmitting or receiving data. Flashing ACT stands for ACTIVITY. 1000Base-T/SX/LX Steady A valid network connection established. Link/ACT Transmitting or receiving data. (Orange) Flashing ACT stands for ACTIVITY. Physical Ports This switch provides: •...
-
Page 12: Installation
Industrial Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 13: Din Rail
Industrial Ethernet Switch DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the switch. Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. -
Page 14: 12Vdc Dc Jack
Industrial Ethernet Switch Connecting to Power Redundant DC Terminal Block Power Inputs or 12VDC DC Jack: 12VDC DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the switch. Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the appropriate AC voltage. -
Page 15: Alarms For Power Failure
Industrial Ethernet Switch Alarms for Power Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection. -
Page 16: Connecting To Your
Industrial Ethernet Switch Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed Connector Port Speed Cable... -
Page 17: Cabling
Industrial Ethernet Switch Cabling Step 1: First, ensure the power of the switch and end devices are turned off. <Note> Always ensure that the power is off before any installation. Step 2: Prepare cable with corresponding connectors for each type of port in use. -
Page 18: Thernet Witch
Industrial Ethernet Switch Specifications Hardened Gigabit 10/100/1000Base-TX auto-negotiating ports with RJ-45 connectors Ethernet Switch 1000Base-SX/LX fiber ports Applicable IEEE802.3 10Base-T IEEE802.3u 100Base-TX Standards IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Switching Method Store-and-Forward Forwarding Rate 10Base-T: 10 / 20Mbps Half / Full-duplex 100Base-TX: 100 / 200Mbps Half / Full-duplex 1000Base-T: 2000Mbps Full-duplex... - Page 19 Industrial Ethernet Switch FCC Part 15, Class A EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3 EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) EN61000-4-11 (Voltage Dips Standards) Environmental Test IEC60068-2-6 Fc (Vibration Resistance) Compliance IEC60068-2-27 Ea (Shock)
- Page 20 Industrial Ethernet Switch Appendix A – Connector Pinouts Pin arrangement of RJ-45 connectors: RJ-45 Connector and Cable Pins The following table lists the pinout of 10/100/1000Base-TX ports. Ports TP0＋ TP0－ TP1＋ TP2＋ TP2－ TP1－ TP3＋ TP3－...
