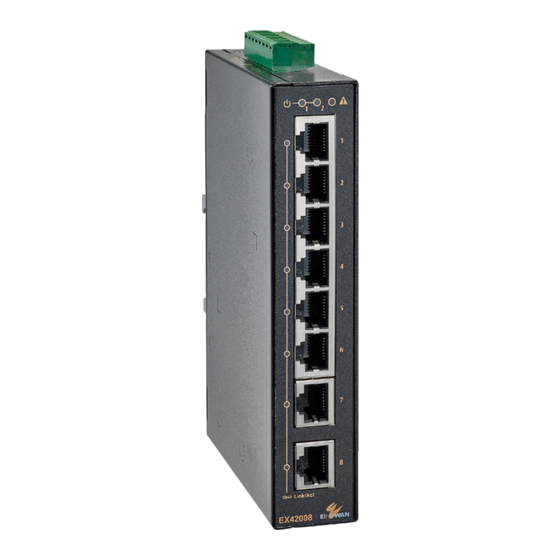

EX42008 series
www.etherwan.com
Quick Start Guide
This quick start guide describes how to install and use the
Hardened Ethernet Switch. Capable of operating at
temperature extremes of -40°C to +75°C, this is the switch of
choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EtherWAN EX42017-XY
Summary of Contents for EtherWAN EX42017-XY
-
Page 1: Quick Start Guide

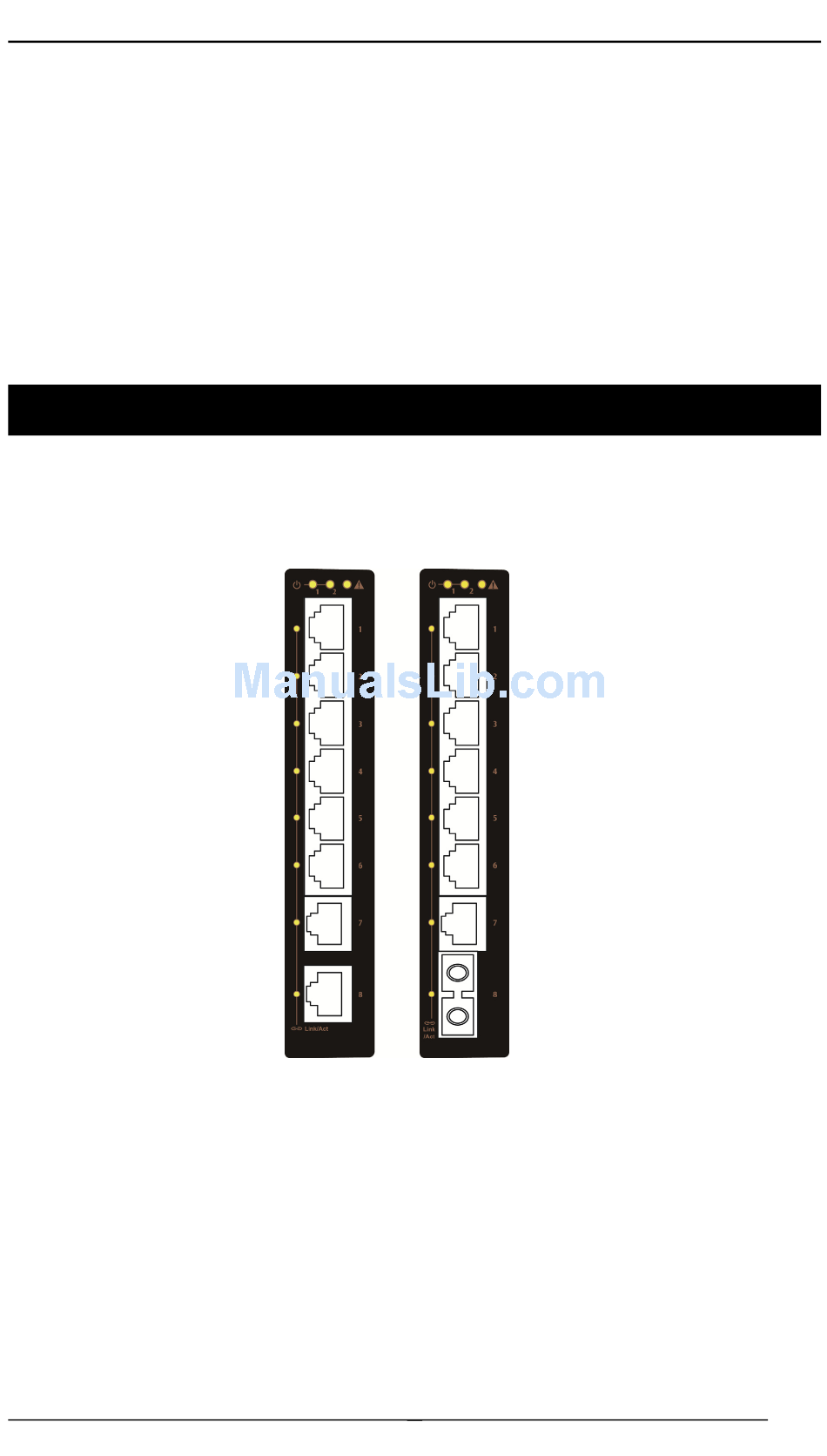

EX42008 series www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Hardened Ethernet Switch. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space. -
Page 2: The Terminal Block And Power Inputs
EX42008 series www.etherwan.com State Indication Steady Power on. Power 1, 2 Power off. (Green) Steady Relay Starts alarm. Relay non-alarm. Fault (Red) 10/100TX or 100FX/BX Ports Steady A valid network connection established. Transmitting or receiving data. Blinking Link/Act Act stands for Activity. -
Page 3: Dip Switch Settings
EX42008 series www.etherwan.com DIP Switch Settings DIP No. Port 1 Alarm Enable. Port 1 Alarm Disable. Port 2 Alarm Enable. Port 2 Alarm Disable. Port 3 Alarm Enable. Port 3 Alarm Disable. Port 4 Alarm Enable. Port 4 Alarm Disable. - Page 4 EX42008 series www.etherwan.com Regular Ports Uplink port Output Transmit Data + Input Receive Data + Output Transmit Data - Input Receive Data - Input Receive Data + Output Transmit Data + Input Receive Data - Output Transmit Data - The 100Base-FX Connections...
- Page 5 EX42008 series www.etherwan.com Functional Description Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment. Supports IEEE802.3az 10Base-Te only. 10Base-T is not supported. 10Base-Te is fully interoperable with 10Base-T over 100m of class D (Category 5) or better cabling as specified in ISO/IEC 11801:1995.
- Page 6 EX42008 series www.etherwan.com Assembly, Startup, and Dismantling Assembly: Place the device on the DIN rail from above using the slot. Push the front of the device toward the mounting surface until it audibly snaps into place. Startup: Connect the supply voltage to start up the device via the terminal block.
-
Page 7: Preface
EX42008 series www.etherwan.com Preface A member of the growing family of rugged switches, this switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications. -
Page 8: Table Of Contents
EX42008 series www.etherwan.com Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Port Status LEDs The Terminal Block and Power Inputs DIP Switch Settings The Ethernet Connectors UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED THERNET... -
Page 9: Product Overview
EX42008 series www.etherwan.com Product Overview Hardened Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. -
Page 10: Basic Features
EX42008 series www.etherwan.com Product Highlights Basic Features Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment. Supports IEEE802.3az 10Base-Te only. 10Base-T is not supported. 10Base-Te is fully interoperable with 10Base-T over 100m of class D (Category 5) or better cabling as specified in ISO/IEC 11801:1995. -
Page 11: Port Status Leds
EX42008 series www.etherwan.com Front Panel Display Power Status (Power) This LED comes on when the switch is properly connected to power and turned on. Port Status LEDs The LEDs display status for each respective port. State Indication Steady Power on. - Page 12 EX42008 series www.etherwan.com Physical Ports This switch provides: Eight 10/100Base-TX ports Seven 10/100Base-TX ports + one 100Base-FX/BX port Connectivity RJ-45 connectors SC or ST connector on 100Base-FX fiber port SC connector on 100Base-BX fiber port...
-
Page 13: Installation
EX42008 series www.etherwan.com Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 14: Din Rail
EX42008 series www.etherwan.com DIN Rail Mounting Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the switch... -
Page 15: Dc Terminal Block Power Inputs
EX42008 series www.etherwan.com Connecting to Power DC Terminal Block Power Inputs Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet. Disconnect the power cord if you want to shut down the switch. - Page 16 EX42008 series www.etherwan.com This equipment shall be connected to directly to the DC supply system earthing electrode conductor or to a bonding jumper from an earthing terminal bar or bus to which the DC supply system earthing electrode conductor is connected.
- Page 17 EX42008 series www.etherwan.com Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed...
- Page 18 EX42008 series www.etherwan.com Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use.
-
Page 19: Specifications
EX42008 series www.etherwan.com Specifications Hardened Compact 10/100Base-TX auto-negotiating ports with Switch RJ-45 connectors, 100Base-FX/BX fiber port Applicable Standards IEEE 802.3az 10Base-Te IEEE 802.3u 100Base-TX/FX IEEE 802.1x Full-duplex Flow Control IEEE 802.1az Energy Efficient Ethernet Forwarding Rate 10Base-Te: 10 / 20Mbps Half / Full-duplex... - Page 20 EX42008 series www.etherwan.com EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test IEC60068-2-6 Fc (Vibration Resistance) Compliance IEC60068-2-27 Ea (Shock) FED STD 101C Method 5007.1 (Free Fall with...
