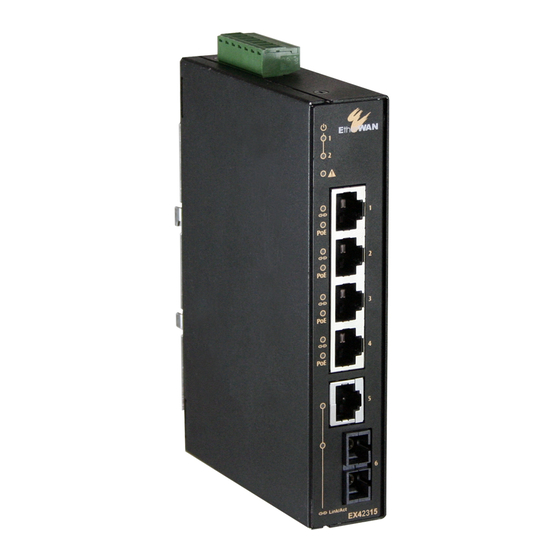

EtherWAN EX42300 Series Installation Manual

1 Unpacking
Open the carton and unpack the items. Your package
should include:
▪
One EX42300 Switch
If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the carton
and packing material in case you need to ship or store
the switch in the future.
2 Equipment Needed
▪
Category 5 or better cable for RJ-45 ports
▪
Appropriate SFP modules for SFP ports
3 Select a Location
▪
DIN rail installation
▪
Identify a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
4 Connect to the Data Ports
Depending on the model, your switch can have the
following ports:
▪
4-port 10/100BASE-TX (4 x PoE) +1-port
10/100/1000BASE-T
▪
4-port 10/100BASE-TX (4 x PoE) +1-port
10/100/1000BASE-T +1-port 1000BASE-X SFP
W70G-EX42300Q2 Page 1
EX42300 Series | Hardened Unmanaged PoE Gigabit Ethernet Switch

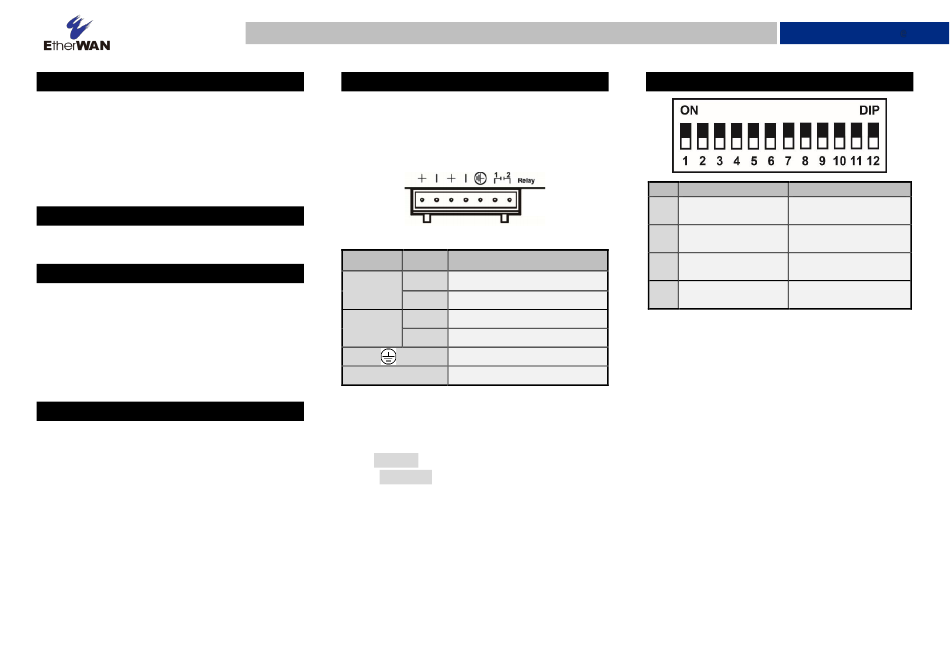

5 Connect Power
Power is supplied via a 24-48VDC terminal block
connected to a DC power cord. The terminal block has
7 terminal posts. Power consumption is 7W max. PoE
power budget is 120W.
Pin State
+
Power 1
-
+
Power 2
-
Relay Output Rating 0.5A @ 48VDC
Power-Up Sequence
When the switch is powered up:
▪
All Link/ACT LEDs blink momentarily.
▪
The Power 1, 2 LEDs light up and stay lit.
▪
LEDs for every port connected to a device will
flash, as the switch conducts a brief Power On Self-
Test (POST).
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 01/03/2023
Description
24-48VDC
Power Ground
24-48VDC
Power Ground
Earth Ground
Installation Guide
6 DIP Switch Settings
DIP On
Port 1~5 Alarm
1~5 Port 1~5 Alarm Disable
Enable
Port 6 Alarm Enable
6 Port 6 Alarm Disable
(EX42315 only)
Broadcast Storm Broadcast Storm
7
Enable Disable
Jumbo Frames
8 Jumbo Frames Disable
Enable
Off
