Hardened Web-Smart PoE Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the Hardened
Web-Smart PoE (Power over Ethernet) Ethernet Switch. This is the switch of
choice for harsh environments constrained by space.

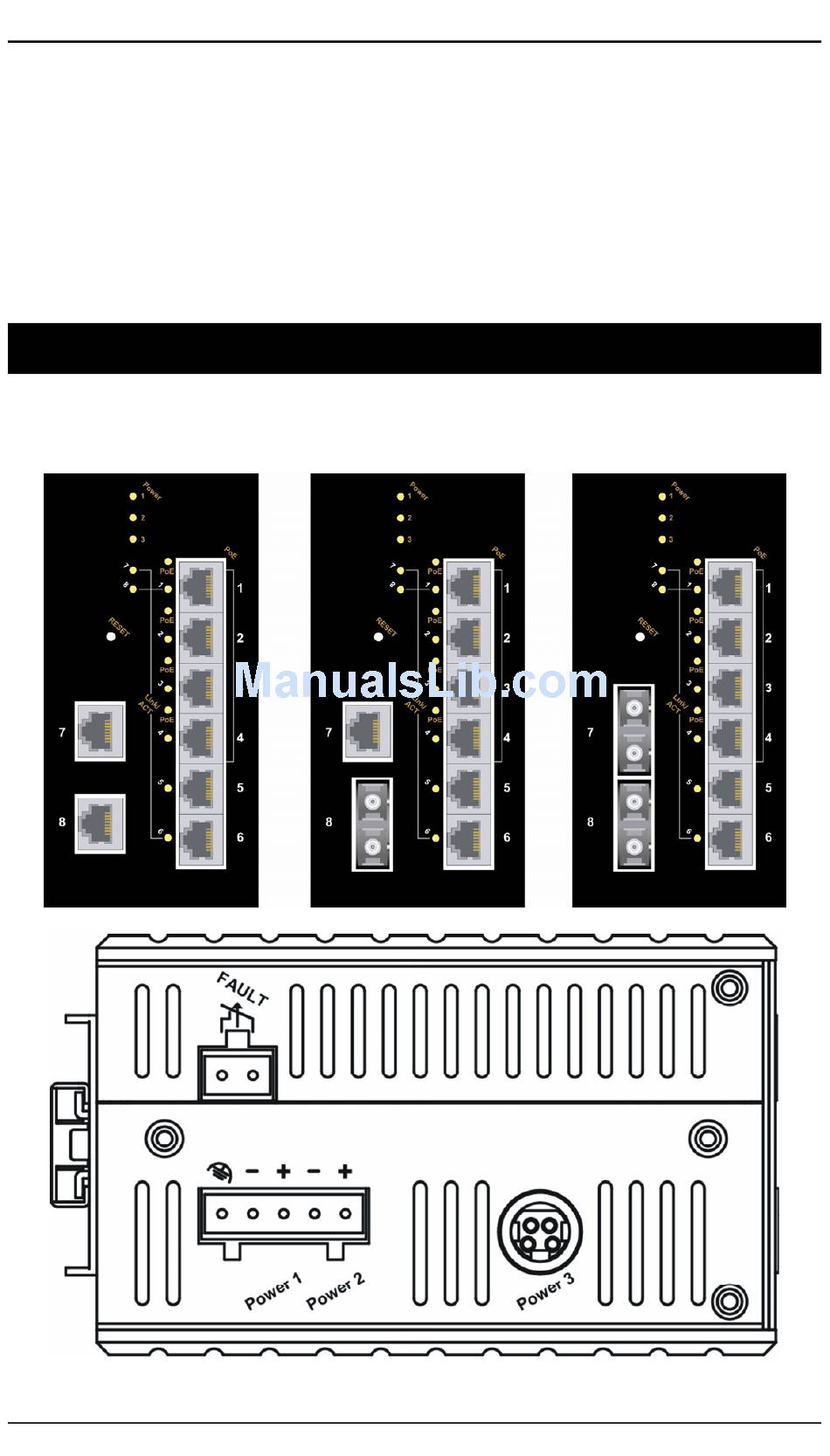

Physical Description
The Port Status LEDs and Power Inputs
User's Manual
1
Advertisement
Table of Contents
Related Manuals for EtherWAN EX46000
Summary of Contents for EtherWAN EX46000
-
Page 1: Quick Start Guide
Hardened Web-Smart PoE Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the Hardened Web-Smart PoE (Power over Ethernet) Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Port Status LEDs and Power Inputs User’s Manual... -
Page 2: The 10/100Base-Tx And 100Base-Fx Connectors
Hardened Web-Smart PoE Ethernet Switch State Indication Steady A valid network connection established. Link/ACT Transmitting or receiving data. Flashing ACT stands for ACTIVITY. Steady Power Device (PD) is connected. Power Device (PD) is disconnected. Power Input Assignment Power3 48VDC DC Jack 48VDC ＋... -
Page 3: Functional Description
Hardened Web-Smart PoE Ethernet Switch The 100Base-FX Connections The fiber port pinouts The Tx (transmit) port of device I is connected to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. The WDM 100Base-FX Connections The fiber port pinouts Only one single-mode optical fiber is required to transmit and receive data. -
Page 4: Web Configuration
Hardened Web-Smart PoE Ethernet Switch Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉). Supports DIN-Rail, Panel, or Rack Mounting installation. Web Configuration Login the switch: Specify the default IP address (192.168.1.10) of the switch in the web browser. -
Page 5: Assembly, Startup, And Dismantling
Hardened Web-Smart PoE Ethernet Switch Assembly, Startup, and Dismantling • Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. • Startup: Connect the supply voltage to start up the switch via the terminal block (or DC JACK). -
Page 6: Preface
Hardened Web-Smart PoE Ethernet Switch Preface This manual describes how to install and use the Hardened Web-Smart PoE Ethernet Switch. This switch introduced here is designed to deliver full scalability with web-based management functions. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space. -
Page 7: Table Of Contents
Hardened Web-Smart PoE Ethernet Switch Table of Contents Quick Start Guide HYSICAL ESCRIPTION The Port Status LEDs and Power Inputs The 10/100Base-TX and 100Base-FX Connectors UNCTIONAL ESCRIPTION ONFIGURATION SSEMBLY TARTUP ISMANTLING Preface Table of Contents Product Overview ARDENED MART THERNET WITCH ACKAGE ONTENTS... - Page 8 Hardened Web-Smart PoE Ethernet Switch IRMWARE PGRADE Specifications User’s Manual...
-
Page 9: Product Overview
Hardened Web-Smart PoE Ethernet Switch Product Overview Hardened Web-Smart PoE Ethernet Switch Front and Top View User’s Manual... -
Page 10: Package Contents
Hardened Web-Smart PoE Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. • The Hardened Web-Smart PoE Ethernet Switch •... -
Page 11: Front Panel Display
Hardened Web-Smart PoE Ethernet Switch Front Panel Display Power (Power1, Power2, Power3) This LED comes on when the switch is properly connected to power and turned on. P ort Status LEDs The LEDs are located on the front panel, displaying status for each respective port. -
Page 12: Physical Ports
Hardened Web-Smart PoE Ethernet Switch State Indication Steady A valid network connection established. Link/ACT Transmitting or receiving data. Flashing ACT stands for ACTIVITY. Steady Power Device (PD) is connected. Power Device (PD) is disconnected. Physical Ports The Hardened Web-Smart PoE Ethernet Switch provides: CONNECTIVITY RJ-45 connectors on TX ports ST or SC connector on 100Base-FX fiber port... -
Page 13: Installation
Hardened Web-Smart PoE Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 14: Connecting To Power
Hardened Web-Smart PoE Ethernet Switch Connecting to Power Redundant DC Terminal Block Power Inputs or 48VDC DC Jack: Redundant DC Terminal Block Power Inputs There are two pairs of power inputs for use with redundant power sources. You only need to have one power input connected to run the switch. -
Page 15: 48Vdc Dc Jack
Hardened Web-Smart PoE Ethernet Switch Step 2: Disconnect the power cord if you want to shut down the switch. 48VDC DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the switch. Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the appropriate AC voltage. -
Page 16: Connecting To Your Network
Hardened Web-Smart PoE Ethernet Switch Power Input Assignment Power3 48VDC DC Jack 48VDC ＋ Power2 Power Ground － 48VDC ＋ Terminal Power1 Block Power Ground － Earth Ground Relay Output Rating 0.1A @ 24VDC Relay Alarm Assignment *Warning signal disable for following: The relay contact closes if Power1 and Power2 are both failed but Power3 on. -
Page 17: Cabling
Hardened Web-Smart PoE Ethernet Switch Port Speed Connector Cable Max. Speed Distance Half/Full Duplex 10Base-T RJ-45 10/20 Mbps 2-pair 100 m UTP/STP Cat. 3, 4, 5 100Base-TX RJ-45 100/200 2-pair 100 m Mbps UTP/STP Cat. 5 100Base-FX ST, SC 100/200 MMF (50 or 2 km Mbps... -
Page 18: Switch Management
Hardened Web-Smart PoE Ethernet Switch Switch Management This chapter explains the methods that you can use to configure management access to the switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. -
Page 19: Web Management
Hardened Web-Smart PoE Ethernet Switch Web Management The switch provides a browser interface that lets you configure and manage the switch remotely. After you set up your IP address for the switch, you can access the switch’s web interface applications directly in your web browser by entering the IP address of the switch. -
Page 20: Web-Based Browser Management
Hardened Web-Smart PoE Ethernet Switch Web-Based Browser Management The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser. This chapter describes how to configure the switch using its web-based browser interface. - Page 21 Hardened Web-Smart PoE Ethernet Switch PASSWORD Enter the factory default password (no password). Or enter a user-defined password if you followed the instructions later and changed the factory default password. Then click on the “OK” button to log on to the switch. User’s Manual...
-
Page 22: Understanding The Browser Interface
Hardened Web-Smart PoE Ethernet Switch Understanding the Browser Interface The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch. Port Based VLAN Priority Diff Serv Code Point Bit 0 ~ 31, Bit 32 ~ 63 System Setup Firmware Upgrade User’s Manual... -
Page 23: Poe
Hardened Web-Smart PoE Ethernet Switch System power budget: Click in “System power budget” text box and type a new system power budget. OK: Click “OK” button to update your settings. Enable mode: Click “Enable mode” drop-down menu to choose “Enable” or “Disable”... -
Page 24: Port Based Vlan
Hardened Web-Smart PoE Ethernet Switch Port Based VLAN Port Based VLAN VLAN.1 ~ VLAN.7: Click and choose Port 1 ~ Port 8 to be added into VLAN.1 ~ VLAN.7. Cancel: Click “Cancel” button to cancel your settings. OK: Click “OK” button to update your settings. User’s Manual... -
Page 25: Priority
Hardened Web-Smart PoE Ethernet Switch Priority Priority Ratio Scheme: Click and choose “All High Before Low”, “10:1”, “5:1”, or “2:1” ratio scheme. Port 1 ~ Port 8: Click and choose “TOS”, “802.1p”, or “Port Priority” (“High” or “Low”) for Port 1 ~ Port 8. 802.1p Level 7 ~ Level 0: Click and set “High”... -
Page 26: Diff Serv Code Point
Hardened Web-Smart PoE Ethernet Switch Diff Serv Code Point Diff Serv Code Point Bit 0 ~ 31: Diff Serv Code Point: Check and set Bit 0 ~ 31 of Diff Serv Code Point to high priority. Cancel: Click “Cancel” button to cancel your settings. OK: Click “OK”... - Page 27 Hardened Web-Smart PoE Ethernet Switch Bit 32 ~ 63: Diff Serv Code Point: Check and set Bit 32 ~ 63 of Diff Serv Code Point to high priority. Cancel: Click “Cancel” button to cancel your settings. OK: Click “OK” button to update your settings. User’s Manual...
-
Page 28: System Setup
Hardened Web-Smart PoE Ethernet Switch System Setup System Setup System Configuration: DHCP Client: Click and choose “Enable” or “Disable” to enable or disable the Switch as DHCP client to be automatically supplied an IP address, gateway address, and subnet mask from DHCP server. IP Address: Click in “IP Address”... - Page 29 Hardened Web-Smart PoE Ethernet Switch System Reset/Restore to default: Load Default: Click “Load Default” button to restore the default settings of the Switch. Reset System: Click “Reset System” button to restart the Switch. User’s Manual...
- Page 30 Hardened Web-Smart PoE Ethernet Switch Firmware Upgrade Firmware Update Cancel: Click “Cancel” button to cancel firmware update request. Update: Click “Update” button and wait for firmware update request being processed. User’s Manual...
- Page 31 Hardened Web-Smart PoE Ethernet Switch Specifications Applicable Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX Switching Method Store-and-Forward Forwarding Rate 10Base-T 10 / 20Mbps half / full-duplex 100Base-TX/FX 100 / 200Mbps half / full-duplex Performance 14,880pps for 10Mbps 148,810pps for 100Mbps Cable 10Base-T 4-pair UTP/STP Cat.
