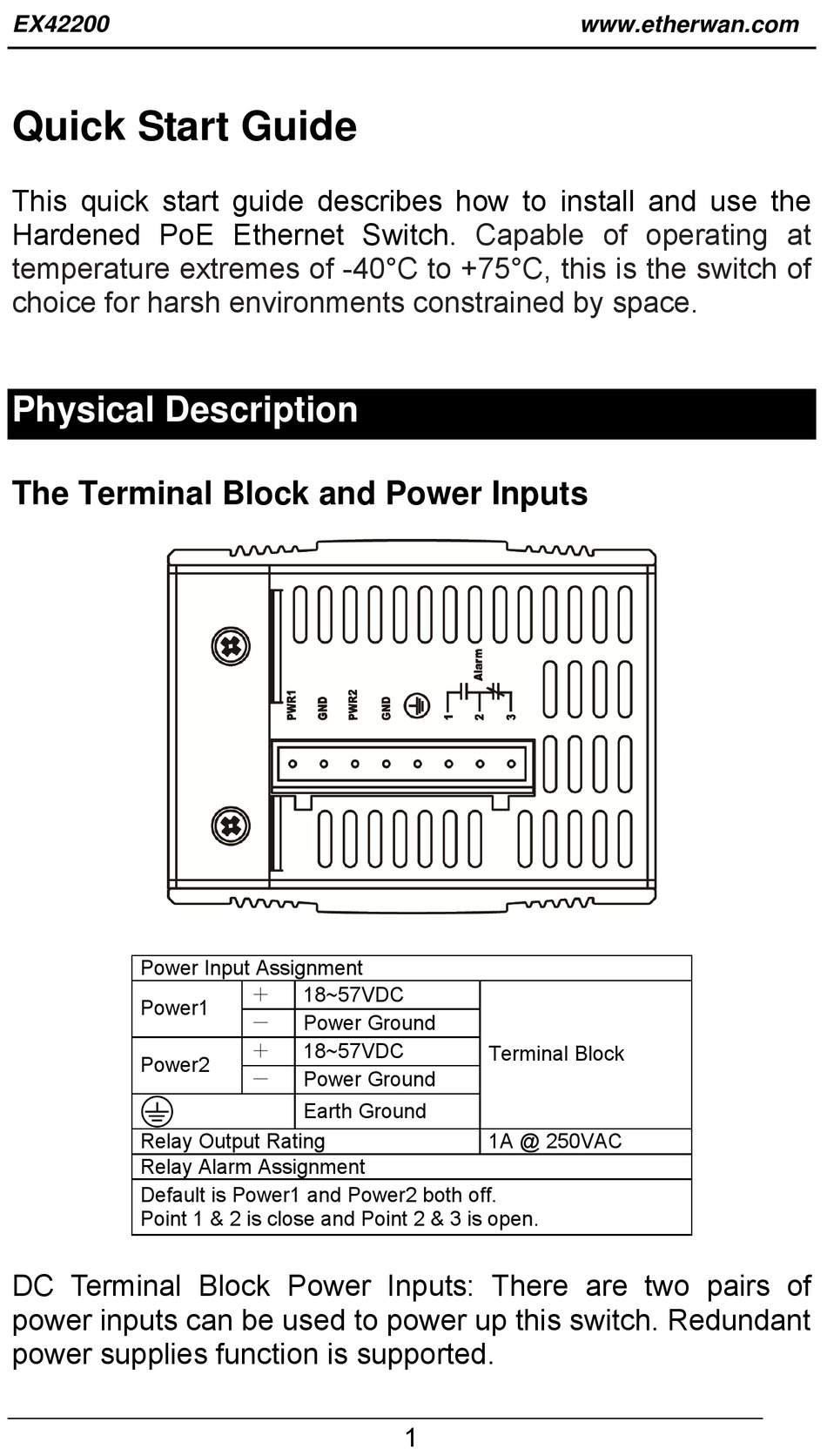

EX42200

Quick Start Guide

This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch.
temperature extremes of -40°C to +75°C, this is the switch of
choice for harsh environments constrained by space.
Physical Description
The Terminal Block and Power Inputs
Power Input Assignment
Power1
Power2
Relay Output Rating
Relay Alarm Assignment
Default is Power1 and Power2 both off.
Point 1 & 2 is close and Point 2 & 3 is open.
DC Terminal Block Power Inputs: There are two pairs of
power inputs can be used to power up this switch. Redundant
power supplies function is supported.
18~57VDC
＋
Power Ground
－
18~57VDC
＋
Power Ground
－
Earth Ground
1
www.etherwan.com
Capable of operating at
Terminal Block
1A @ 250VAC

Advertisement

loading
Need help?

Need help?

Do you have a question about the EX42200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EtherWAN EX42200

Summary of Contents for EtherWAN EX42200

  • Page 1: Quick Start Guide

    EX42200 www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Hardened PoE Ethernet Switch. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space.
  • Page 2 EX42200 www.etherwan.com The 10/100Base-TX and 100Base-FX/BX Connectors 1. The 10/100Base-TX Connections The following lists the pinouts of 10/100Base-TX ports. Signal Name Signal Definition TD＋ Output Transmit Data ＋ TD－ Output Transmit Data － RD＋ Input Receive Data ＋ Positive (VCC＋) Positive (VCC＋)
  • Page 3 EX42200 www.etherwan.com The Port Status LEDs...
  • Page 4 EX42200 www.etherwan.com State Indication Steady Power on. Power1 Power2 Power off. Steady Power redundant system failure occurred. Alarm Power redundant system failure is not occurred. 10/100Base-TX Steady A valid network connection established. LINK/ACT Transmitting or receiving data. Flashing ACT stands for ACTIVITY.
  • Page 5 EX42200 www.etherwan.com Functional Description  Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.  Supports IEEE802.3at Power over Ethernet (PoE) Power Sourcing Equipment (PSE).  Port 1 to 4 support PoE function, IEEE802.3at Power over Ethernet (PoE) and 10/100Base-TX.
  • Page 6 EX42200 www.etherwan.com...
  • Page 7 EX42200 www.etherwan.com Preface A member of the growing family of rugged switches, this Hardened PoE Ethernet Switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications.
  • Page 8 EX42200 www.etherwan.com Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Terminal Block and Power Inputs The 10/100Base-TX and 100Base-FX/BX Connectors The Port Status LEDs UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED THERNET WITCH ACKAGE...

  • Page 9: Product Overview

    EX42200 www.etherwan.com Product Overview Hardened PoE Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.
  • Page 10 EX42200 www.etherwan.com Product Highlights Basic Features  Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.  Supports IEEE802.3at Power over Ethernet (PoE) Power Sourcing Equipment (PSE).  Port 1 to 4 support PoE function, IEEE802.3at Power over Ethernet (PoE) and 10/100Base-TX.
  • Page 11 EX42200 www.etherwan.com Front Panel Display...

  • Page 12: Status Leds

    EX42200 www.etherwan.com Status LEDs State Indication Steady Power on. Power1 Power2 Power off. Steady Power redundant system failure occurred. Alarm Power redundant system failure is not occurred. 10/100Base-TX Steady A valid network connection established. LINK/ACT Transmitting or receiving data. Flashing ACT stands for ACTIVITY.
  • Page 13 EX42200 www.etherwan.com Physical Ports This switch provides:  Five 10/100Base-TX ports  Four 10/100Base-TX ports + one 100Base-FX/BX port CONNECTIVITY  RJ-45 connector on TX ports  SC or ST connector on 100Base-FX fiber port  SC connector on 100Base-BX fiber port...
  • Page 14 EX42200 www.etherwan.com Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: ...
  • Page 15 EX42200 www.etherwan.com DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the switch. Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place.
  • Page 16 EX42200 www.etherwan.com Connecting to Power Redundant DC Terminal Block Power Inputs There are two pairs of power inputs can be used to power up this device. You only need to have one power input connected to run the switch. Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet.
  • Page 17 EX42200 www.etherwan.com Alarms for Power and Port Link Failure Step 1: There are three pins on the terminal block are used for power failure detection. It fully supports normal open and normal close. Use this as a dry contact application to send a signal for power failure detection.
  • Page 18 EX42200 www.etherwan.com Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable S ecifications Speed...
  • Page 19 EX42200 www.etherwan.com Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use.

  • Page 20: Specifications

    EX42200 www.etherwan.com Specifications 10/100Base-TX auto-negotiating ports with Hardened PoE RJ-45 connectors, 100Base-FX/BX fiber port Ethernet Switch IEEE 802.3 10Base-T Applicable IEEE 802.3u 100Base-TX/FX Standards Store-and-Forward Switching Method Forwarding Rate 10Base-T: 10 / 20Mbps half / full-duplex 100Base-TX: 100 / 200Mbps half / full-duplex...
  • Page 21 EX42200 www.etherwan.com EN61000-4-3 (Radiated FRI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock) FED STD 101C Method 5007.1 (Free Fall with package)
