Quick Start Guide

This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch.
temperature extremes of -10°C to +60°C, this is the switch of
choice for harsh environments constrained by space.

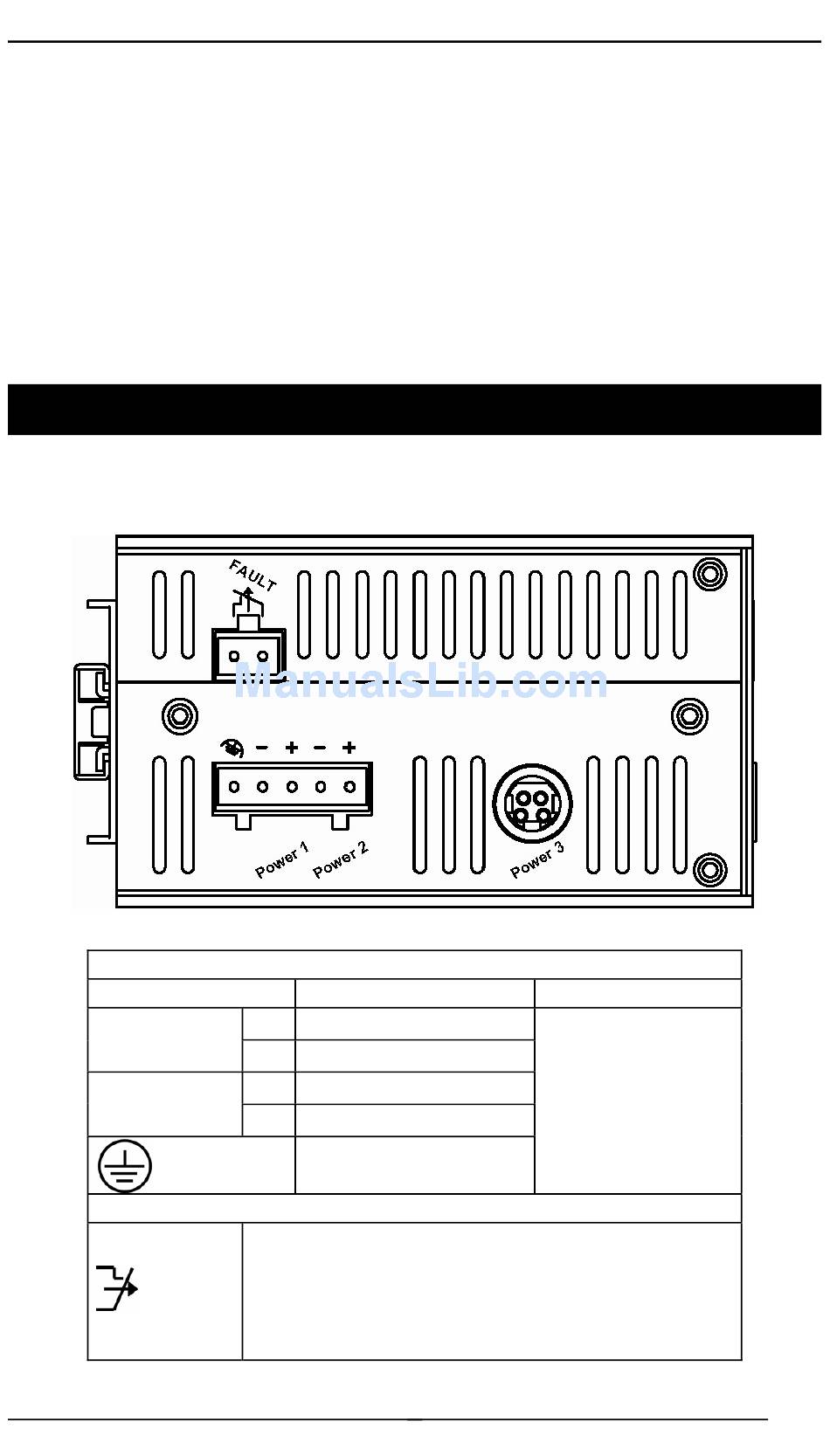

Physical Description

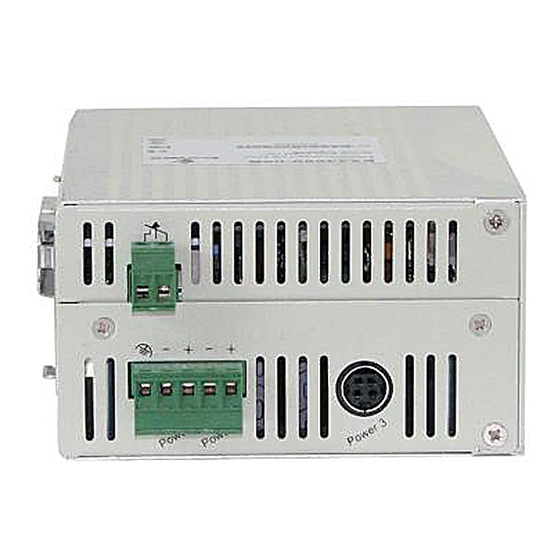

The Terminal Block and Power inputs
Power Input Assignment
Power3
Power2
Power1
Relay Alarm Assignment
FAULT
Hardened PoE Ethernet Switch
48VDC
48VDC
＋
Power Ground
－
48VDC
＋
Power Ground
－
Earth Ground
*Relay warning signal disable for following:
1. The relay contact closes if Power1 and
Power2 are both failed but Power3 on.
2. The relay contact closes if Power3 is failed
but Power1 and Power2 are both on.
Capable of operating at
DC Jack
Terminal Block
1
