PART iDENTiFiCATiON CHART

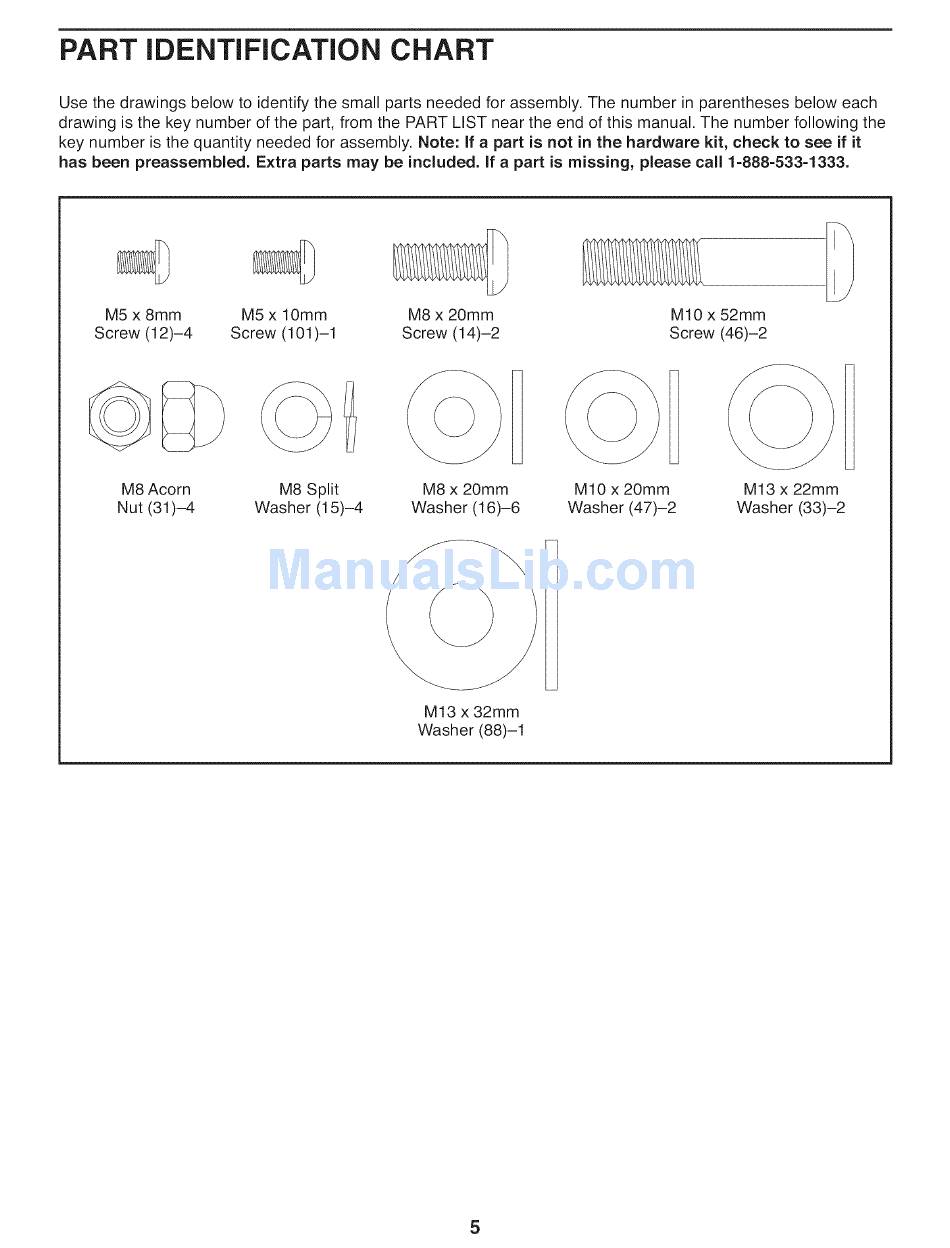

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included. If a part is missing, please call 1=888=533=1333.
M5 x 8mm M5 x 10mm
Screw (12)-4 Screw (101)-1
M8 Acorn
Nut (31)-4
M8 Split
Washer (15)-4
M8 x 20mm M10 x 52mm
Screw (14)-2 Screw (46)-2
M8 x 20mm
Washer (16)-6
M10 x 20mm
Washer (47)-2
M13 x 22mm
Washer (33)-2
M13 x 32mm
Washer (88)-1
