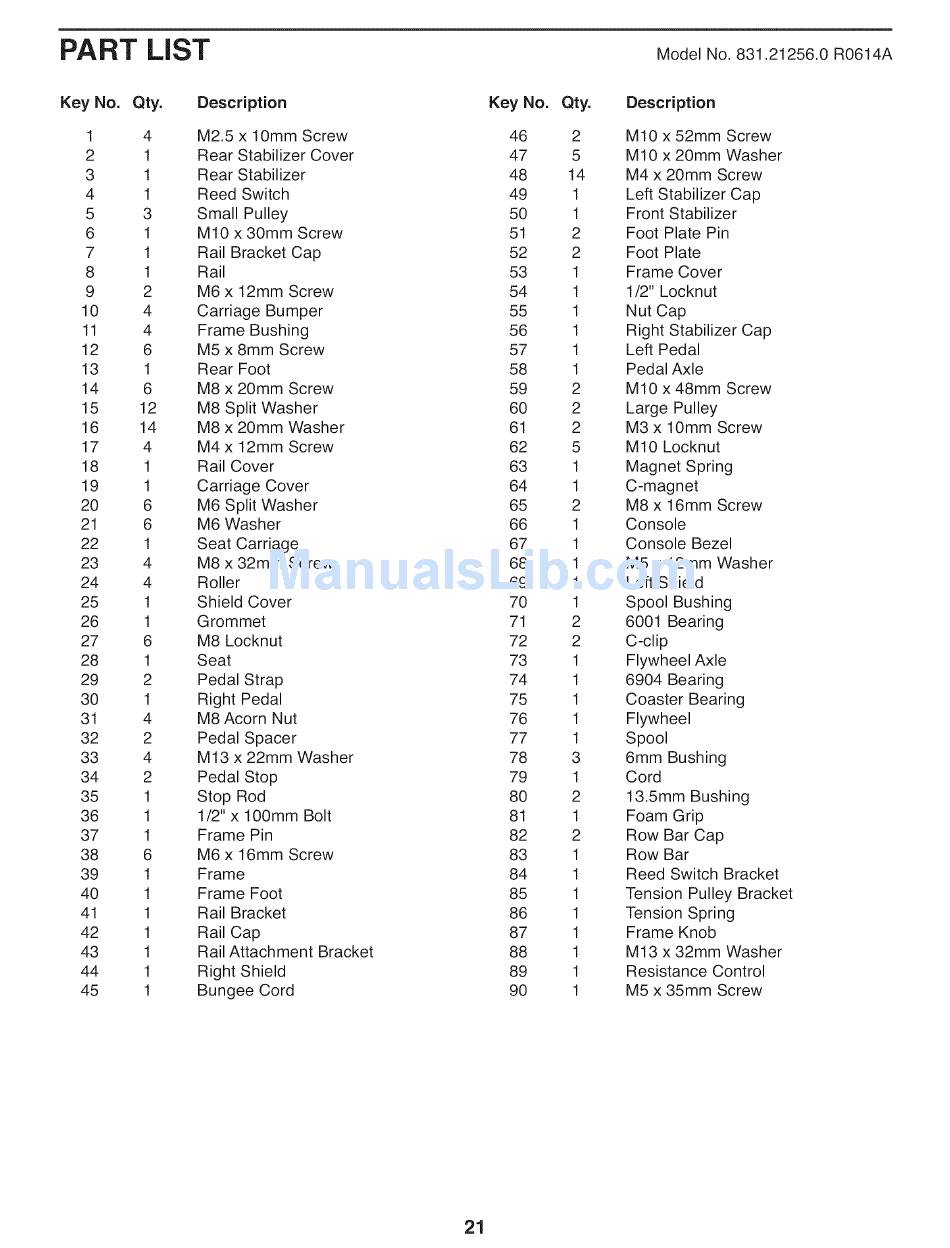

Pro-Form 440R User Manual page 21

PART LIST
Model No. 831.21256.0 R0614A
Key No. Qty.
1 4
2 1
3 1
4 1
5 3
6 1
7 1
8 1
9 2
10 4
11 4
12 6
13 1
14 6
15 12
16 14
17 4
18 1
19 1
20 6
21 6
22 1
23 4
24 4
25 1
26 1
27 6
28 1
29 2
30 1
31 4
32 2
33 4
34 2
35 1
36 1
37 1
38 6
39 1
40 1
41 1
42 1
43 1
44 1
45 1
Description
M2.5 x 10mm Screw
Rear Stabilizer Cover
Rear Stabilizer
Reed Switch
Small Pulley
M10 x 30mm Screw
Rail Bracket Cap
Rail
M6 x 12mm Screw
Carriage Bumper
Frame Bushing
M5 x 8mm Screw
Rear Foot
M8 x 20mm Screw
M8 Split Washer
M8 x 20mm Washer
M4 x 12mm Screw
Rail Cover
Carriage Cover
M6 Split Washer
M6 Washer
Seat Carriage
M8 x 32mm Screw
Roller
Shield Cover
Grommet
M8 Locknut
Seat
Pedal Strap
Right Pedal
M8 Acorn Nut
Pedal Spacer
M13 x 22mm Washer
Pedal Stop
Stop Rod
1/2" x 100mm Bolt
Frame Pin
M6 x 16mm Screw
Frame
Frame Foot
Rail Bracket
Rail Cap
Rail Attachment Bracket
Right Shield
Bungee Cord
Key No.
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Qty.
2
5
14
1
1
2
2
1
1
1
1
1
1
2
2
2
5
1
1
2
1
1
1
1
1
2
2
1
1
1
1
1
3
1
2
1
2
1
1
1
1
1
1
1
1
Description
M10 x 52mm Screw
M10 x 20mm Washer
M4 x 20mm Screw
Left Stabilizer Cap
Front Stabilizer
Foot Plate Pin
Foot Plate
Frame Cover
1/2" Locknut
Nut Cap
Right Stabilizer Cap
Left Pedal
Pedal Axle
M10 x 48mm Screw
Large Pulley
M3 x 10mm Screw
M10 Locknut
Magnet Spring
C-magnet
M8 x 16mm Screw
Console
Console Bezel
M5 x 12mm Washer
Left Shield
Spool Bushing
6001 Bearing
C-clip
Flywheel Axle
6904 Bearing
Coaster Bearing
Flywheel
Spool
6mm Bushing
Cord
13.5mm Bushing
Foam Grip
Row Bar Cap
Row Bar
Reed Switch Bracket
Tension Pulley Bracket
Tension Spring
Frame Knob
M13 x 32mm Washer
Resistance Control
M5 x 35mm Screw
21
