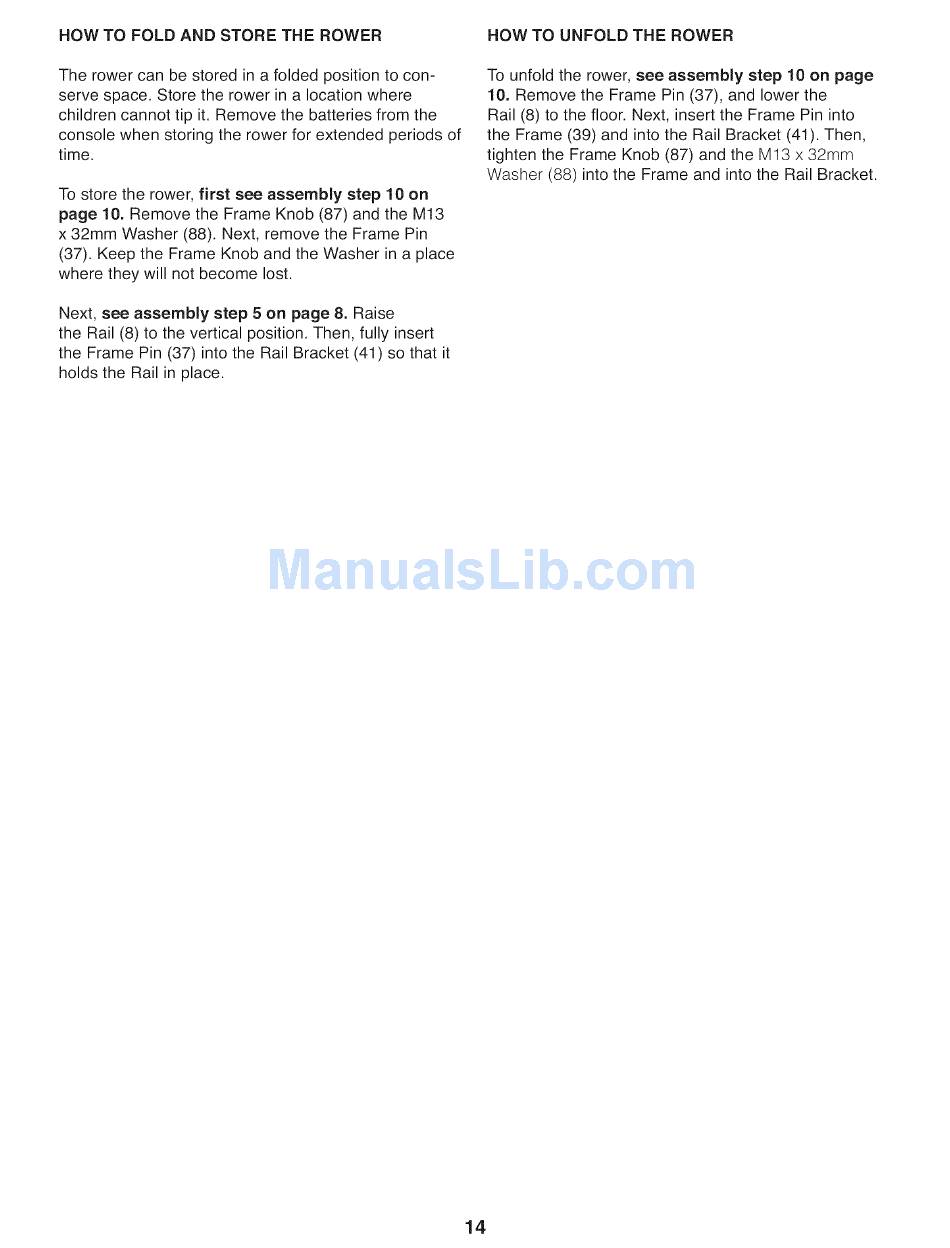

HOW TO FOLD AND STORE THE ROWER HOW TO UNFOLD THE ROWER
The rower can be stored in a folded position to con-
serve space. Store the rower in a location where
children cannot tip it. Remove the batteries from the
console when storing the rower for extended periods of
time.
To store the rower, first see assembly step 10 on
page 10. Remove the Frame Knob (87) and the M13
x 32mm Washer (88). Next, remove the Frame Pin
(37). Keep the Frame Knob and the Washer in a place
where they will not become lost.
Next, see assembly step 5 on page 8. Raise
the Rail (8) to the vertical position. Then, fully insert
the Frame Pin (37) into the Rail Bracket (41) so that it
holds the Rail in place.
To unfold the rower, see assembly step 10 on page
10. Remove the Frame Pin (37), and lower the
Rail (8) to the floor. Next, insert the Frame Pin into
the Frame (39) and into the Rail Bracket (41). Then,
tighten the Frame Knob (87) and the M13 x 32mm
Washer (88) into the Frame and into the Rail Bracket.
