Figure 22. Balanced Load-Pixelnet Switch Configuration - Jupiter PixelNet User Manual

Dual Switch Configuration

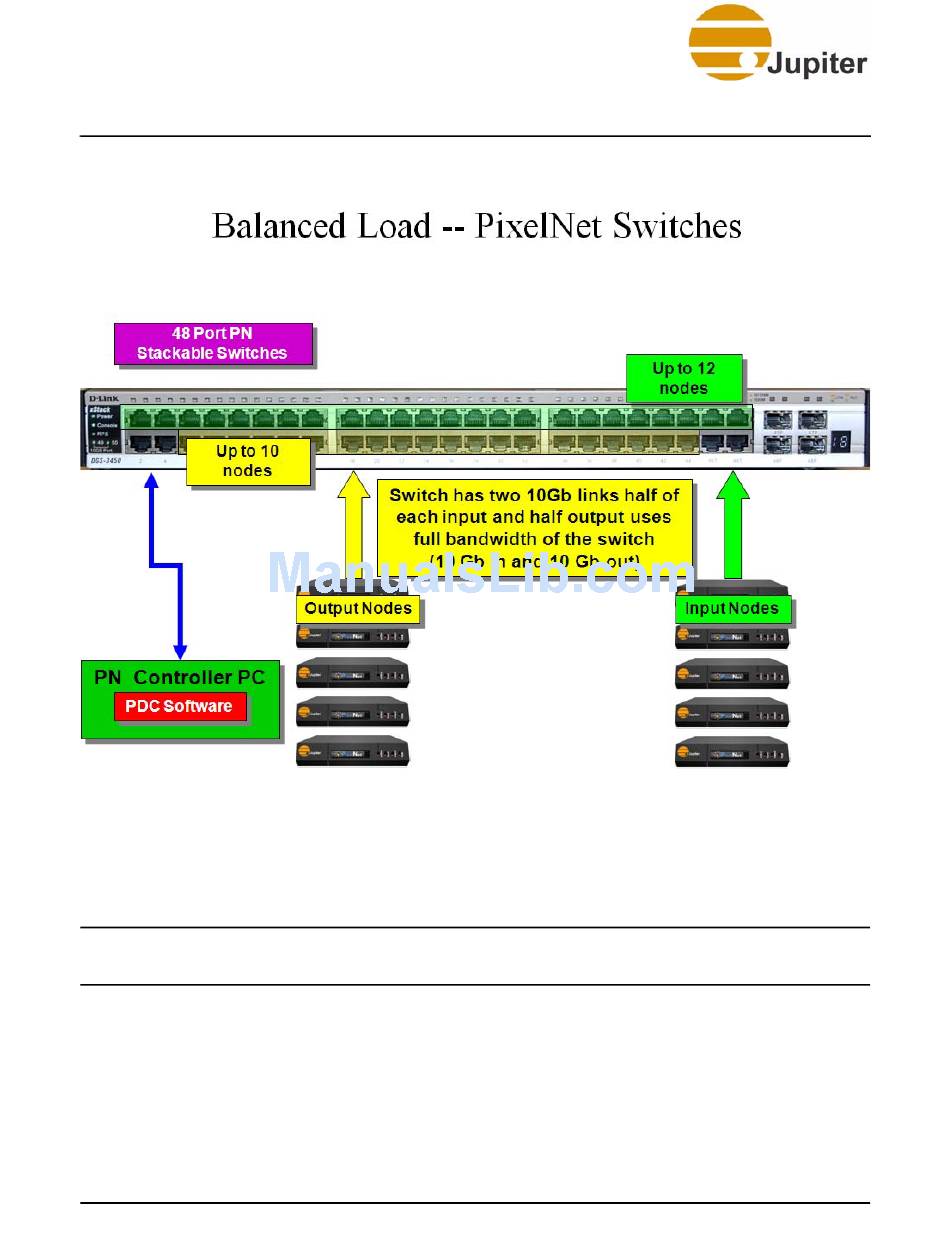

Figure 22 - Balanced load—PixelNet Switch Configuration
A PixelNet Dual Switch Network can manage a total of 24 input and 20
output nodes and one dedicated PDC computer, which requires one switch
port.
Note Put half of input nodes and half of output nodes on each
switch to balance data load.
