Source Configuration Tab
5. The Input Properties section allows for selecting and viewing
the individual node properties within the Grouped Source. Select
the desired node from the drop-down menu list and click the
Properties button. The Source Properties dialog expands to
show more tabs (the number and type of tabs that appear
depend on the individual nodes in the Grouped Source).
6. Make the desired adjustments to the image display in the
Source Properties dialog. For a more detailed explanation of
the Source Properties dialog, refer to
on page

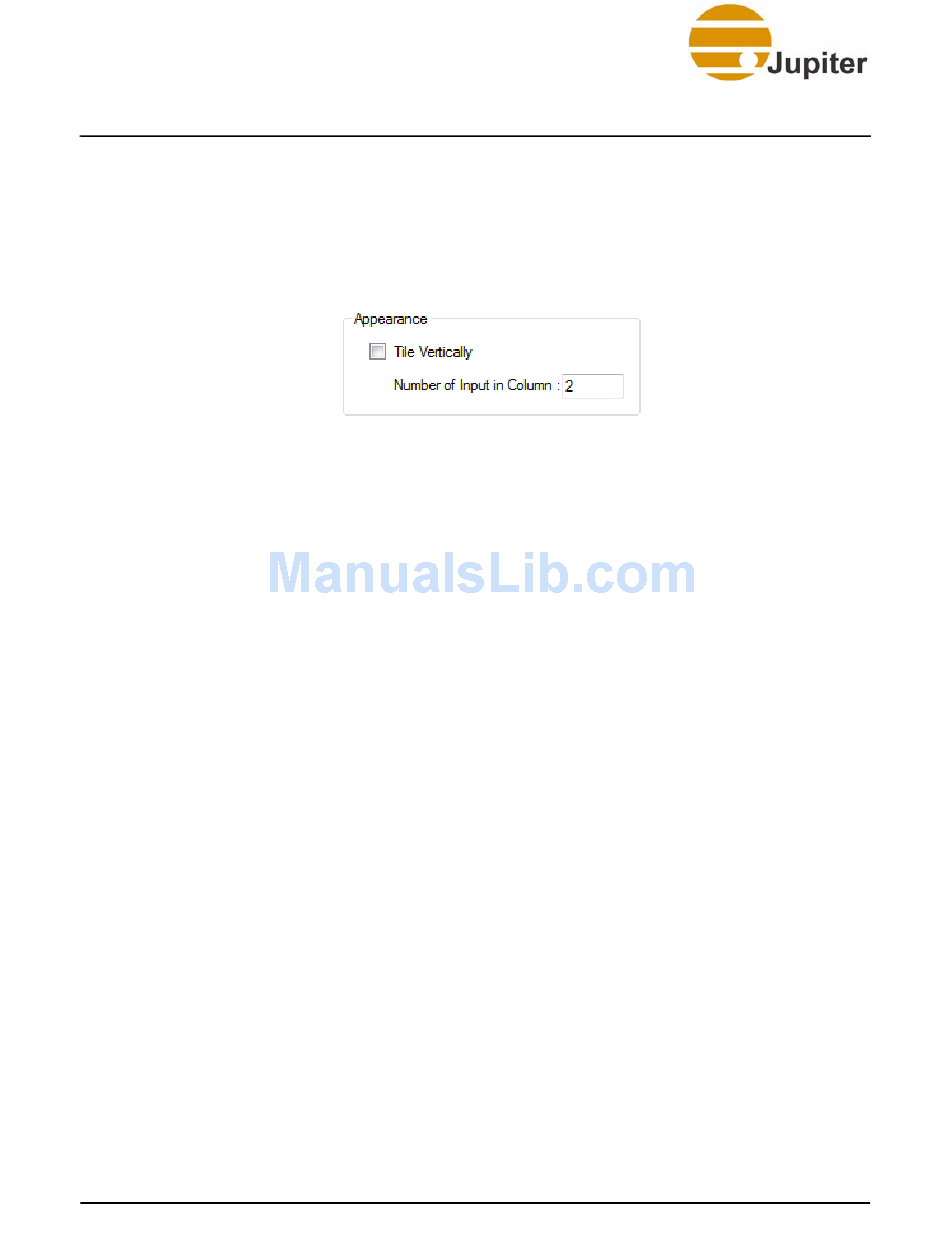

• To display the Group horizontally, leave the Tile Vertically
check box unchecked. The text beneath the check box will
read—Number of Input in Column; enter the number of
channels in the Group in this field.
118.
PixelNet Domain Control User Manual
"Source Properties"
111
