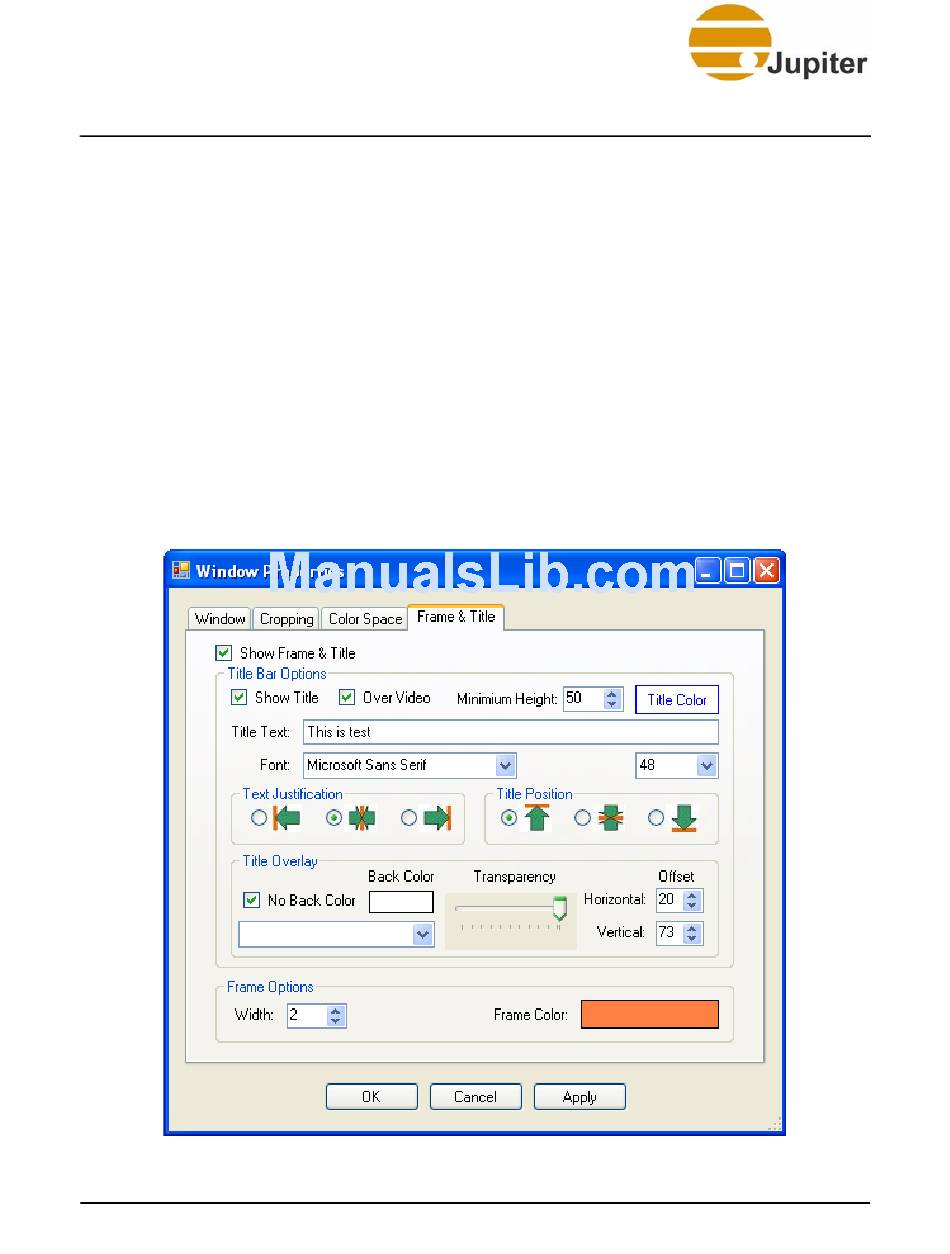

Figure 123. Frame & Title Tab - Jupiter PixelNet User Manual

6—PixelNet Domain Control (PDC) Software
• The Transparency slider controls the degree of visibility for the
background color. This is similar to the transparency slider used
in the
• Offset—This option allows to position the overlaid title by
adjusting the offset coordinates. To offset the title at a specific
distance from the left or right, use the up or down Horizontal
field values. To offset the title from the bottom or top of the
window frame, use the Vertical field values.
Frame Options
This section provides options for designating the width and color of the
border frame. While the border frame automatically accommodates an
increase in font size or title bar height, the Width field provides another
control option. Click the Frame Color field to choose a color for the frame
from the prompted color matrix.
162
"Cropping Tab" on page
Figure 123 - Frame & Title Tab
PixelNet Domain Control User Manual
158.
