6—PixelNet Domain Control (PDC) Software

6.1.4 Audio Window

Whether the Audio window is displayed or hidden is controlled by the
"PDC View Menu" on page 194
The audio window displays the following:
• Name of the audio output or MAC address if no name is given.
• Audio source that is currently associated with this audio output.
• Icon indicating audio in play mode:
• Icon indicating muted audio:
Note This icon is actually a button. Clicking on the button toggles
the audio state between play and mute and changes the
icon.
• Two sliders - one to control the output volume and one for left/
right balance.

6.1.5 Node Monitoring

Node Monitoring shows the operating parameters of the input and output
nodes. If a parameter value exceeds or drops below the programmed
limits, it will be highlighted in red for your attention. Refer to
Monitoring" on page 194
154
which is explained later in this chapter.
for more information.

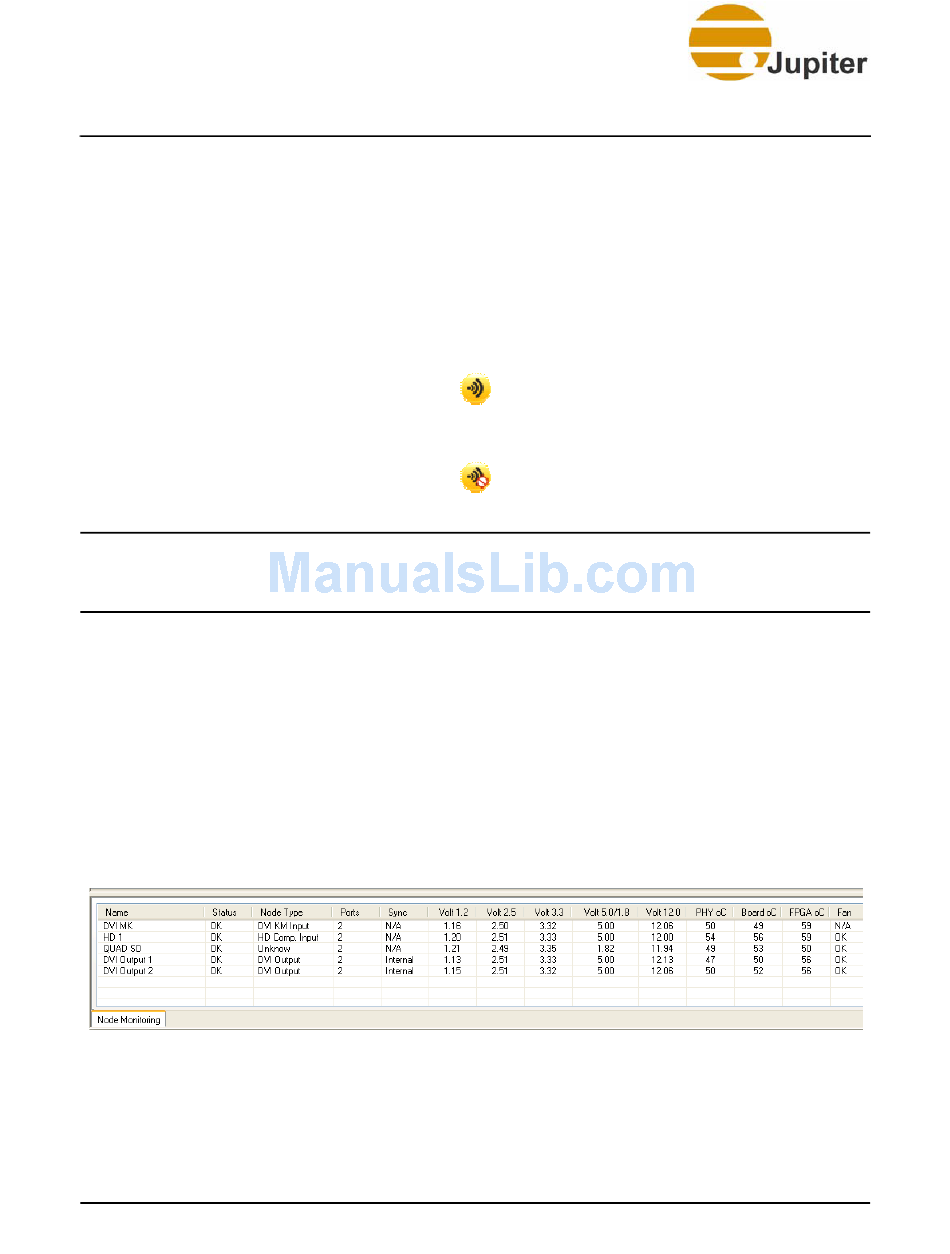

Figure 115 - Node Monitoring
PixelNet Domain Control User Manual
"Node
