3.3.1 Building a Dual Switch Network

Connect the input and output nodes through two 48-port PixelNet switches
as shown in
Cat 6 cables up to 100 meters in length.

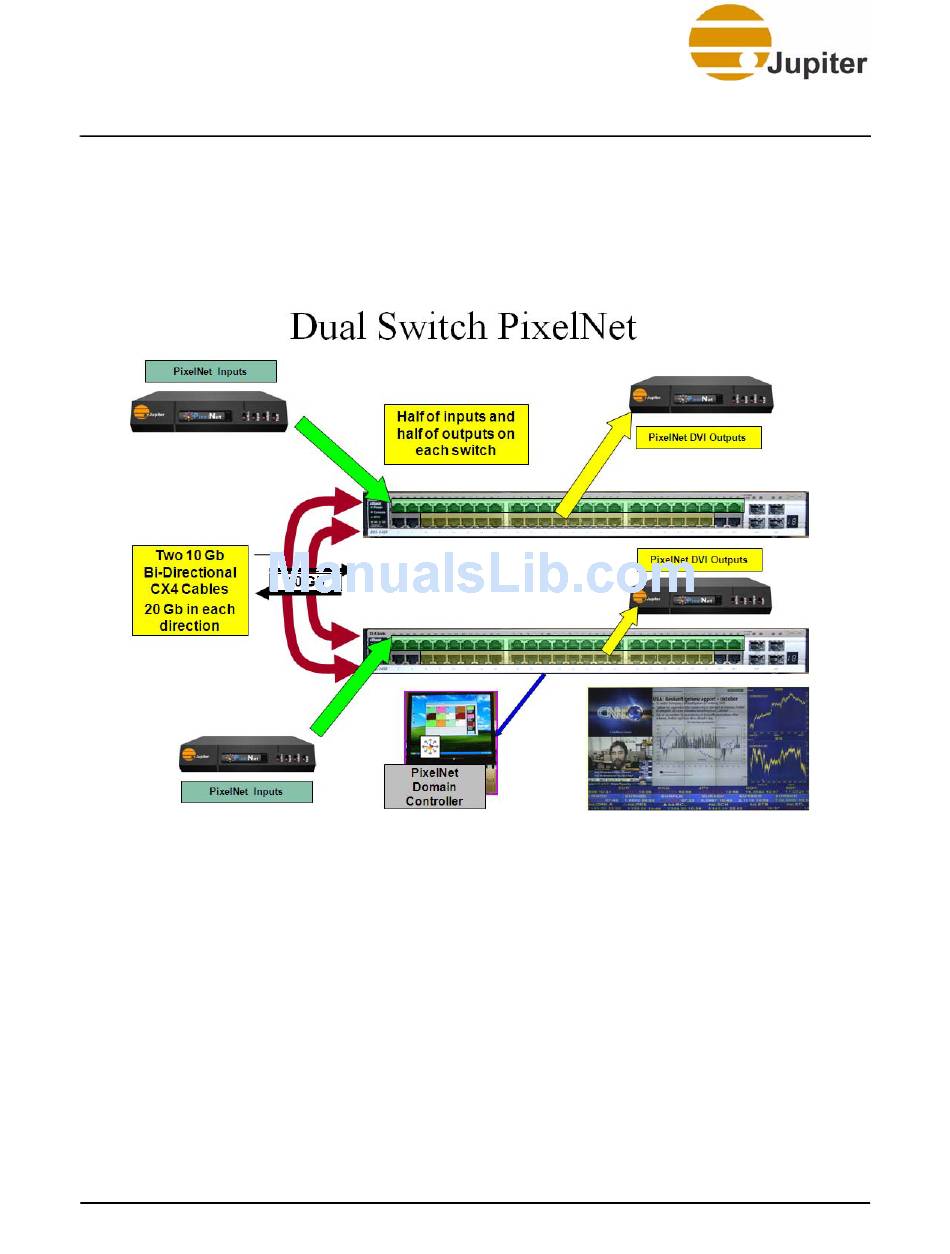

Figure 21 - Building a Dual Switch Configuration
Each switch has two 10 Gbs uplink ports (labeled—ports 49 and 50) use
these ports to interconnect the switches. Connect the switches to the
nodes by dividing the ports evenly between input and output nodes (as
shown in
During operation, each of the connected 1G ports will blink with PixelNet
activity. Also, ports 49 and 50 will show activity.
24
Figure 21. All connections between nodes and switches use
"Figure 22" on page
PixelNet Domain Control User Manual
25) so that the data load is balanced.
