Figure 12. Output Node Basic Sync Connections - Jupiter PixelNet User Manual

2—PixelNet Hardware
The following figure shows the basic daisy-chain connections for the Sync
Port. Every node requires a T-Connector. Every branch of the T-Connector
will be connected. Each end of the daisy-chain has a 75 Ohm terminator
attached.

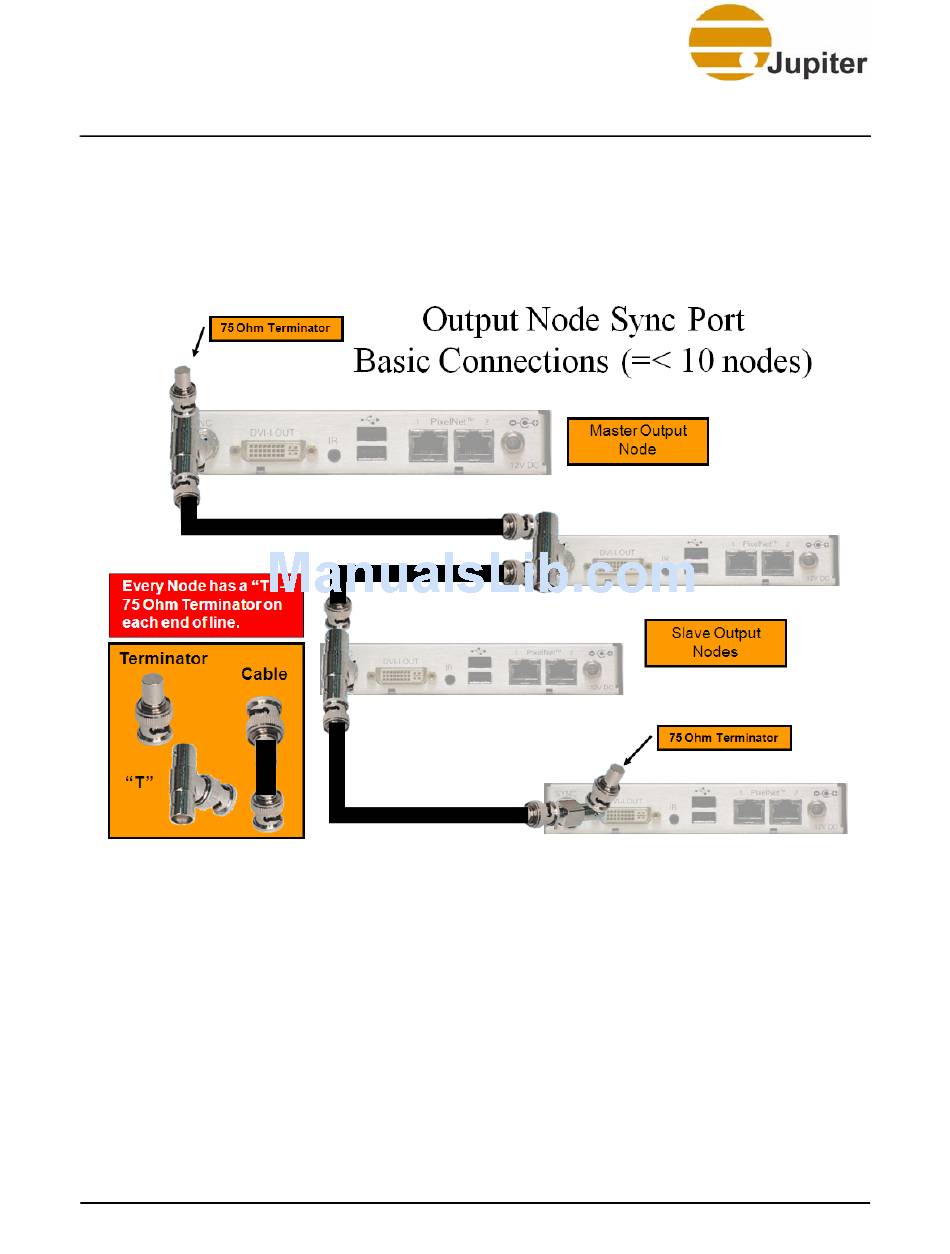

Figure 12 - Output Node Basic Sync Connections
