Input Nodes Tab; Default Window Color Space Format; Figure 152. Input Nodes Tab - Jupiter PixelNet User Manual

Advanced Settings

6.7.2 Input Nodes Tab

The Input Nodes tab shows the current input nodes settings.

6.7.2.1 Default Window Color Space Format

The Default Color Space section shows the default color setting for DVI,
HD Component, and 3G-SDI input nodes.
• For DVI input nodes, the default setting is RGB-16 bit (5 bit red,
6 bit green, and 5 bit blue color depth levels)
• For HD Component input nodes, the default is RGB-24 bit (8 color
depth levels for red, green, and blue).
• For 3G-SDI input nodes, the default is RGB-24 bit (8 color depth
levels for red, green, and blue).
• For Quad CVBS-Y/C input nodes, the default is YUV 422 (8 color
depth levels for red, green, and blue).

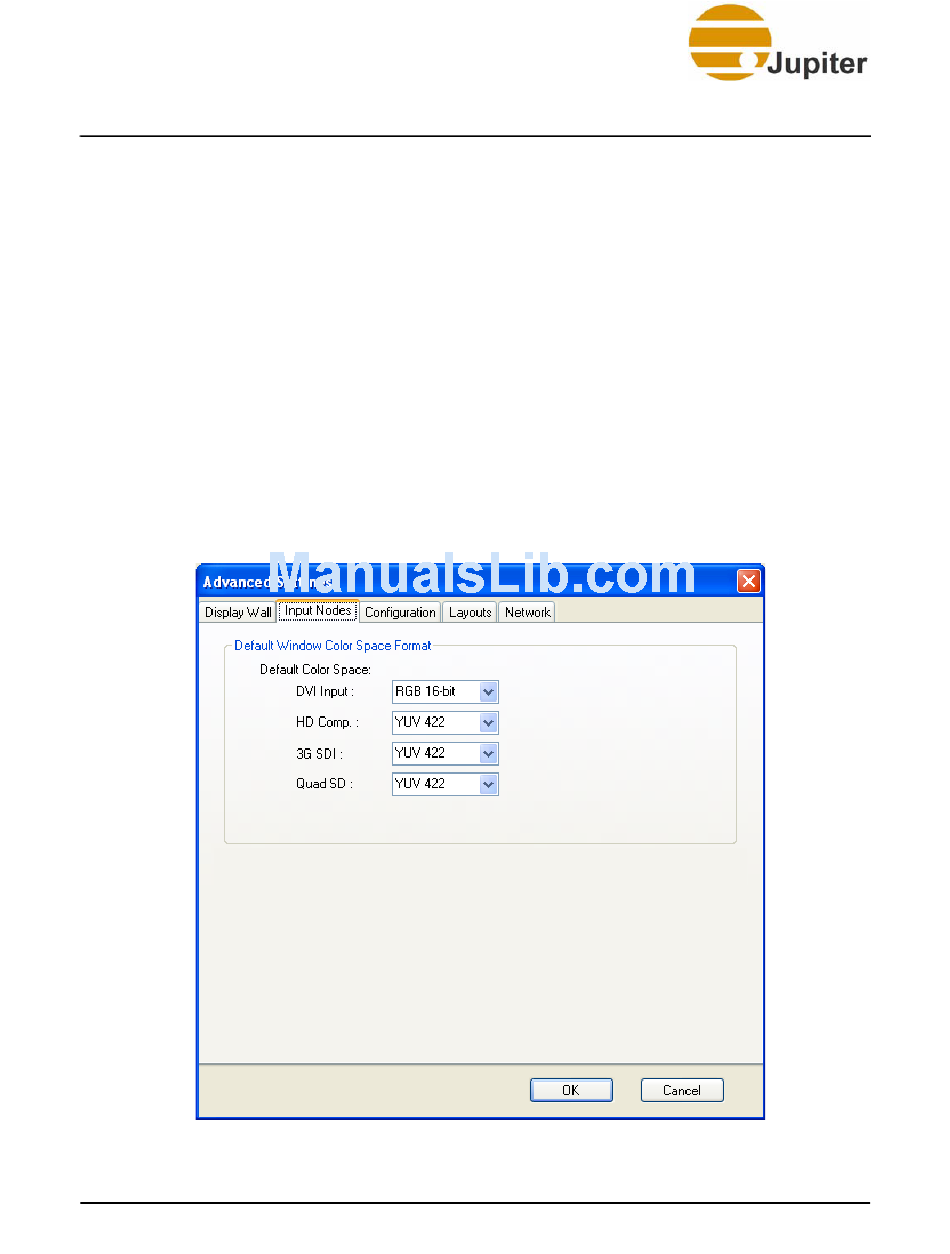

Figure 152 - Input Nodes tab
