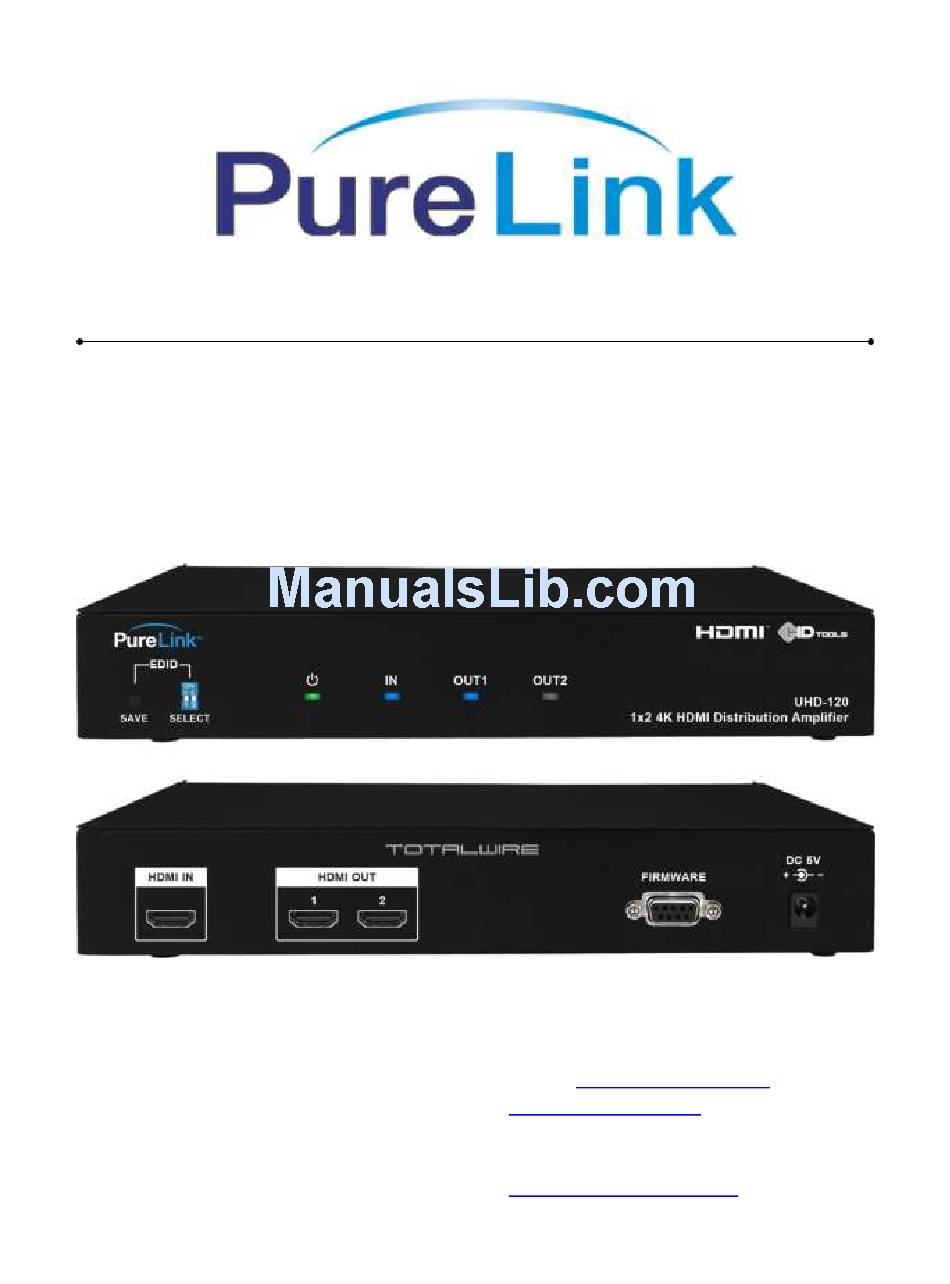

- Page 1 UHD-120 Owner’s Manual 1 x 2 4K HDMI Distribution Amplifier PureLink E-mail: info@purelinkav.com 535 East Crescent Avenue www.purelinkav.com Ramsey, NJ 07446, USA Tel: 201.488.3232 For technical support, contact: Fax: 201.621.6118 support@purelinkav.com...
-
Page 2: Table Of Contents
Table of Contents 1-1 Package Contents 1-2 General Specification 1-3 Operation and Reliability Specifications 1-4 Main Features 1-5 Video Connection 1-6 Mechanical Specification 1-7 Technical Specification p.10 1-8 Warranty Information p.11 1-9 Troubleshooting p.12... -
Page 3: Package Contents
PureLink by Dtrovision 1-1 Package Contents Please make sure all of the following items are included in the package: 1) UHD-120 Unit 2) DC 5V 2A Power supply adapter 3) Owner’s Manual... -
Page 4: General Specification
PureLink UHD-120 1x2 4K HDMI distribution amplifier is designed to distribute a single HDMI/DVI digital signal into multiple monitor without any degradation of original signal quality or distortion of the image. In addition, a dedicated IC chipset makes UHD-120 capable of amplifying and distributing highest quality of video signal and UHD digital contents. -
Page 5: Operation And Reliability Specifications
PureLink by Dtrovision 1-3 Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 140F (0℃~ 60℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 6: Main Features
2300ft using our fiber optical HDMI cables. 3. HDMI (High Definition Multimedia Interface) v 1.4 UHD-120 is consisting of HDMI input and output ports, and it is conforms to HDMI 1.4 standard. 4. HDCP (High-bandwidth Digital Content Protection) Compliant Our HDMI distribution amplifiers are fully HDCP compliant. -
Page 7: Video Connection
Video Connection 1. Turn off the whole system before connecting. 2. Connect your video source’s HDMI output port to the UHD-120’s HDMI input port using standard HDMI cables (not included). 3. Connect your HDMI display’s HDMI input port to UHD-120’s HDMI output port. - Page 8 PureLink by Dtrovision UHD-120 provides Auto EDID management system to meet today’s sophisticated digital connectivity integration environment. There is an EDID setting DIP switch on the front of the unit; EDID SETTING DIP Switch Position EDID function Dip switch 1,2 “up” position Communicate EDID with factory default at 1080p 2ch Dip switch 1 "down"...
-
Page 9: Mechanical Specification
PureLink by Dtrovision 1-6 UHD-120 Mechanical Specification UHD-120 Dimension: 6.6” x 3.96” x 1.58” (167 x 100.5 x 40 mm) *RS-232 Port is used to connect to PC for firmware upload... -
Page 10: Technical Specification
PureLink by Dtrovision 1-7 Technical Specification Frequency bandwidth: 10.2 Gbps Supporting Graphic Resolution: Supports all standard display resolutions up to UHD (4K2K @ 30Hz), 840p, 576i, 720p, 1080i, 1080p@60Hz Inputs: Single HDMI Input Output: Dual HDMI Output Power supply: DC 5V, 2A Adapter included Connector Pin Assignment Part No. - Page 11 1-8 Warranty 2 (two) Year Warranty Dtrovision warrants this PureLink UHD-120 to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers.
-
Page 12: Troubleshooting
To extend beyond 20ft, please use fiber optical HDMI extension cables such as PureLink EZ series. 3. Use high quality HDMI cables. 4. If you are using computers, try other refresh rate settings. - Page 13 PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
