User Manual PT-PK100 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
Page 3
PT-PK100 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PK100 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PK100 complies with Directives 2014/30/EU and 2014/35/EU.
Page 4
User Manual PT-PK100 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment.

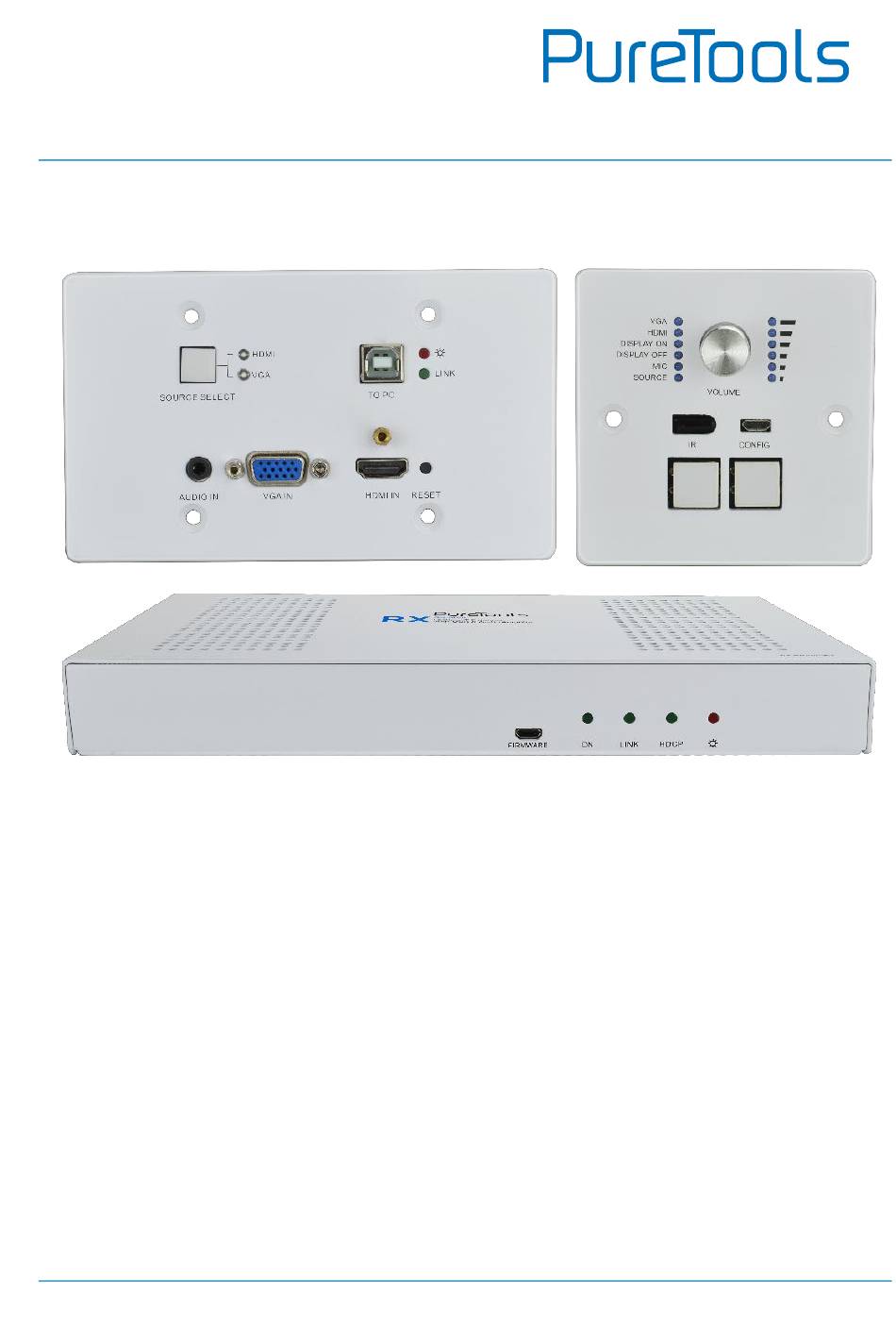

1. Introduction 1.1 Introduction to PT-PK100 The PT-PK100 is a multi-function AV distribution system designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of PT-PK100-TXWP Scaler Wall Plate HDBaseT Transmitter, PT-PK100-RX HDBaseT Receiver and K12-PAD1-EU Control Panel.
User Manual PT-PK100 1.3 Package List 1 x PT-PK100-TXWP Scaler Wall Plate HDBaseT Transmitter Transmitter 1 x White Face Plate 1 x PT-PK100-RX HDBaseT Receiver 2 x Mounting Ears with 4 Screws 4 x Rubber Feet ...
User Manual PT-PK100 2. Panel Description 2.1 PT-PK100-TXWP HDBaseT Transmitter 9 10 HDMI LINK SOURCE SELECT TO PC AUDIO IN VGA IN HDMI IN RESET Name Description Blue-backlight button. Press it to select one source, press again to select next source, switching circularly between VGA and HDMI input.
HDBaseT Receiver via CAT5e/ CAT6a cable to transmit AV PoC IN/ and control signal. With PoC solution, PT-PK100-TXWP ⑩ HDBT OUT can be powered by this port once PT-PK100-RX has been powered up. Micro USB port, used for firmware update. Firmware updated need auxiliary equipment, please ⑪...
Page 10
TCP/IP ④ Turn on or off the display. Put the system into standby or start it. Connect to the PoC IN/HDBT OUT port of PT-PK100-TXWP HDBT IN/PoC ⑤ with a CAT5e cable. TO DISPLAY Connect with a display.
Page 11
User Manual PT-PK100 Name Description Additional serial interface. Connect to a display and send RS232 ⑨ RS232 commands to control it. Connect to fire alarm system. When the fire alarm signal REMOTE MUTE ⑩ input, the audio output will be set to mute.
User Manual PT-PK100 2.3 PT-PK100-BCWP Control Panel HDMI DISPLAY ON DISPLAY OFF SOURCE VOLUME POWER CONFIG RS232 DISPLAY SOURCE ON OFF Name Description VGA: BLUE when VGA input is selected. HDMI: BLUE when HDMI input is selected. DISPLAY ON: BLUE when press the “DISPLAY ON/OFF”...
Page 13
Micro USB connector for configuration data importing or CONFIG ⑥ exporting. RJ45 connector. Connect to the POWER/RS232 port on PT-PK100-TXWP via CAT5e/ CAT6a cable to transmit POWER/RS232 ⑦ RS232 control signal. The PT-PK100-BCWP can be powered by PT-PK100-TXWP via this port.
User Manual PT-PK100 3. System Connection 3.1 Usage Precaution System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page 29, 30 &31 for limits). All of the power switches, plugs, sockets and power cords should be insulated.
User Manual PT-PK100 Note: System Diagram shown in this manual are for reference only, more specific schemes depend on real devices. Connect HDBT ports via straight-thru CAT5e/6 cable with TIA/EIAT568B standard terminations at both ends. The distance is less than 30m (98ft) between HDBaseT Transmitter and HDBaseT ...
User Manual PT-PK100 3.4 USB Connection HDBaseT Receiver has a USB port (FROM TOUCH SCREEN) to connect with Smart Board. When user make notes on smart board, HDBaseT Receiver will receive the signal from Smart Board via USB cable and send it back to HDMI signal source (PC), and then it will be transmitted to display.
User Manual PT-PK100 3.5 IR Connection Control Panel provides in-built IR sensor and HDBaseT Receiver provides an IR OUT port for IR Emitter to control far-end device from local. In this educational system, put the IR remote of display close to in-built IR sensor of Control Panel, and put IR Emitter close to the far-end display, then the display can be controlled by IR remote based on IR pass-through function.
User Manual PT-PK100 3.6 RS232 Connection HDBaseT Receiver provides an additional RS232 interface to connect with a display, and then control it by sending RS232 commands via GUI. Please refer to 4.3.3 Command Tab. CAT5e/ 6A Cable 30m TCP/IP RS232...
4. System Operation 4.1 IR Learning IR learning function allows user to use the buttons of PT-PK100-BCWP Control Panel to displace some keys of IR remote which can control display or other devices. PT- PK100-BCWP Control Panel has two buttons: “SOURCE” and “DISPLAY ON/OFF”; On the other hand, the “SOURCE”...
User Manual PT-PK100 Apply IR learning function Press the “DISPLAY ON/OFF” button on control panel to turn on display, and then press this button again to turn off display. Note: When the system in IR leaning mode, press the “SOURCE” button can exit.
Page 21
User Manual PT-PK100 1) Synchronous mode: Press the “DISPLAY ON/OFF” button on Control Panel to turn on/off the display and system concurrently. 2) Asynchronous mode: Press the “DISPLAY ON/OFF” button on Control Panel to turn on/off the display. Long-press the “DISPLAY ON/OFF” button to power on/off system.
The web browser control interface is an alternative method to control the system without having to interact with the Control Panel. The default IP address of the PT-PK100 is 192.168.0.178. This can be changed in the Network settings by an administrator.
User Manual PT-PK100 Device Control Screen 4.3.1 HDMI&VGA Switch between HDMI and VGA. Display Turn the display on or off. System Turn the system on or off. Volume Mute and unmute audio sources. Volume may be changed by pressing the “+” or “-”...
User Manual PT-PK100 To enter the configuration settings, click on the gear icon on the lower left corner of the Control interface. Setting Tab 4.3.2 Password Change the password for the admin and user login screen. Display Control Select Select whether the display will be controlled via IR or RS232.
Page 25
User Manual PT-PK100 When the mode is ON, press the “DISPLAY ON/OFF” button on Control Panel to turn on/off the display and system concurrently. When the mode is OFF, press the “DISPLAY ON/OFF” button on Control Panel to ...
User Manual PT-PK100 Command Tab (RS232 Display Control) 4.3.3 This tab defines the RS232 display control commands. If a display requires Hex commands, make sure the Hex box is checked. Display On Enter the RS232 command to turn on the display.
Page 27
User Manual PT-PK100 Input Select Delay Enter the delay time in seconds between the Power On and Input Select commands. This delay may be between 1 and 100 seconds. Baud Rate Select the baud rate necessary to communicate with the display. Available baud rates are: 2400, 4800, 9600, 14400, 19200, 38400, 56000, 57600, and 115200 baud.
User Manual PT-PK100 Configuration Tab 4.3.4 Output Resolution Supports 1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080 or 1920x1200. FIRMWARE Copy update data to one U-disk, and then insert the U-disk into the FIRMWARE port on HDBaseT Transmitter, finally click “FIRMWARE” to start update procedure.
User Manual PT-PK100 Network Tab 4.3.5 DHCP/Static IP Select whether the system will use a static IP or will be provided an IP via DHCP. IP Address Enter the IP address for the system. Subnet Mask Enter the subnet mask for the system.
User Manual PT-PK100 GUI Update 4.3.6 Open a web browser and enter the IP address of the Receiver directed at port 100. If the IP address is at 192.168.0.178, enter 192.168.0.178:100 into the web browser. When prompted, enter the admin username and password (admin and admin by default).
User Manual PT-PK100 4.4 Copy and Load Control Setting The system IR or RS232 configuration can be copied to a USB thumb drive and loaded into additional systems or be saved as a backup. Copy Control Setting ① Insert a 4GB or smaller FAT32 formatted thumb drive into the CONFIG port on the front of the Control Panel.
User Manual PT-PK100 5. Panel Drawing 5.1 PT-PK100-TXWP HDBaseT Transmitter 151.00 mm 100.00 mm 70.00 mm 4- 4.5 8x90° 44.20 mm HDMI LINK SOURCE SELECT TO PC 2-M3 2- 3.5 AUDIO IN VGA IN HDMI IN RESET 5.2 PT-PK100-RX HDBaseT Receiver...
User Manual PT-PK100 5.3 PT-PK100-BCWP Control Panel 37 mm(121ft) 34 mm(112ft) HDMI DISPLAY ON DISPLAY OFF SOURCE VOLUME POWER CONFIG RS232 DISPLAY SOURCE ON OFF 80 mm (262ft)
User Manual PT-PK100 6. Specification 6.1 PT-PK100-TXWP HDBaseT Transmitter Video & Audio Input Port (1) HDMI; (1) VGA; (1) AUDIO IN (1) 19-pin Type A HDMI female; (1) DB15 VGA female; Input Connector (1) 3.5mm mini jack Output Port (1) PoC IN/HDBT OUT; (1) POWER/RS232...
-10 ~ +55℃ (+14℉~ +131℉) Relative Humidity 10% ~ 90% Dimension (W*H*D) 250mm x 31mm x 130mm (820ft x 102ft x 426ft) Net Weight 682g 6.3 PT-PK100-BCWP Control Panel Port Program Port (1) Micro USB (1) RS232+Power Output Port (1) Knob; (1) buttons(ON,OFF,HDMI,VGA);...
User Manual PT-PK100 7. Troubleshooting & Maintenance Problems Potential Causes Solutions Insert power adapter to the No reaction to Haven’t been powered on. receiver. any operation, power indicator is The poor quality of CAT5e/6a or better cable network cable. recommended.
User Manual PT-PK100 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. ① Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail).
