User Manual

PT-SP-HD12-4K
User Manual
1x2 HDMI Distribution Amplifier with 4K2K & HDCP Support
Model PT-SP-HD12-4K
Designed in Germany
© 2016 PureLink GmbH All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-SP-HD12-4K and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink PT-SP-HD12-4K

Summary of Contents for PureLink PT-SP-HD12-4K

  • Page 1: User Manual

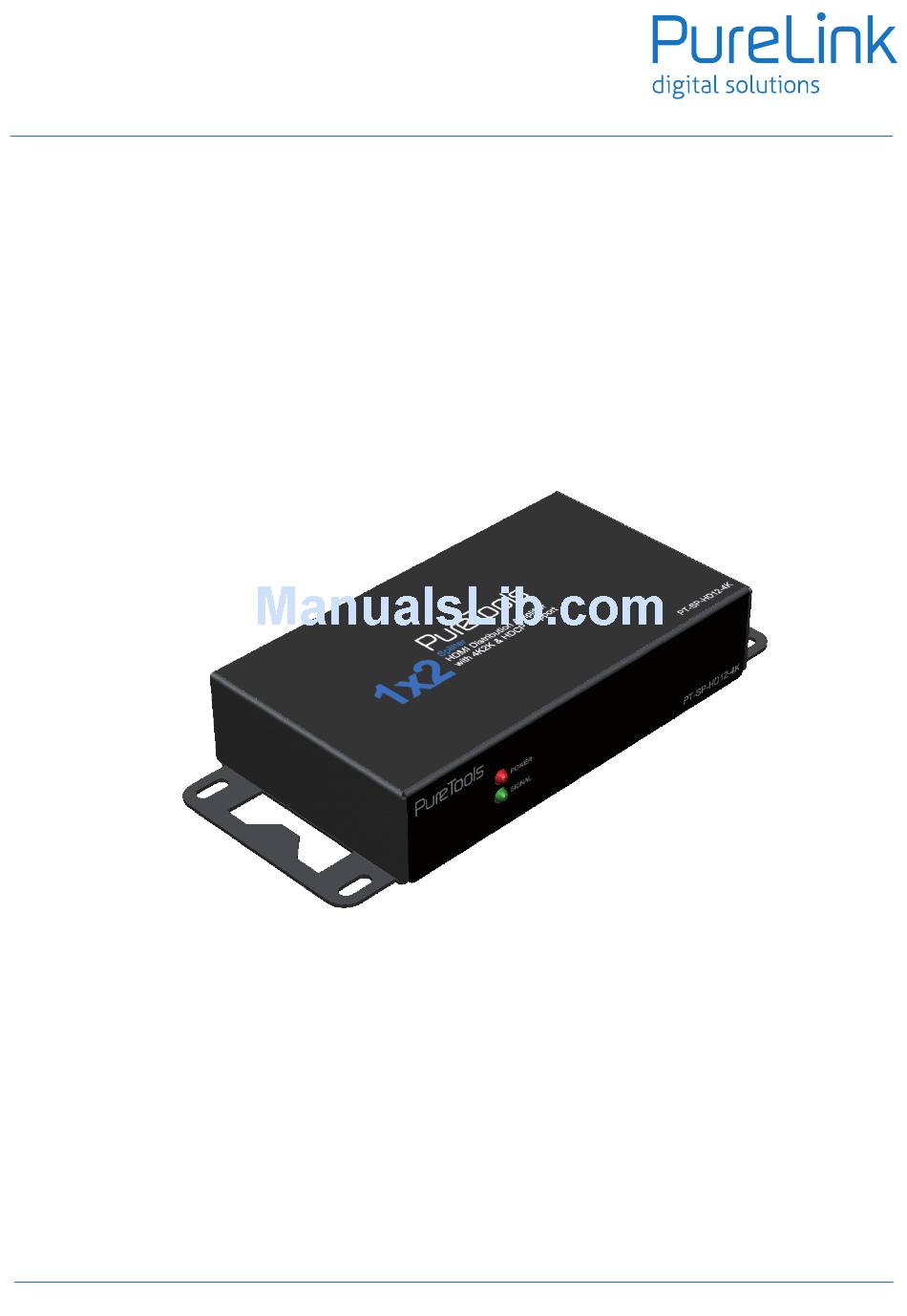

    User Manual PT-SP-HD12-4K User Manual 1x2 HDMI Distribution Amplifier with 4K2K & HDCP Support Model PT-SP-HD12-4K Designed in Germany © 2016 PureLink GmbH All rights reserved.

  • Page 2: Table Of Contents

    However, like all electronic equipments, the PT-SP-HD12-4K should be used with care. Please read and follow the safety instructions to pro- tect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    The PT-SP-HD12-4K 1x2 HDMI Distribution Amplifier with 4K2K & HDCP Support provides the most cost effective and advanced HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 2 different locations without losing quality. PT-SP-HD12-4K supports all 3D formats and the true 4K2K video! With built-in Mini-USB firmware update mechanism, the compatibility among countless HDMI sources and recei- vers can be further guaranteed.

  • Page 4: Specification

    User Manual PT-SP-HD12-4K 5. Specifications Item Description Units Distribution Amplifier [Splitter] HDMI Compliance HDMI Deep Color, full 3D & 4K2K DVI Compliance DVI 1.10 HDCP 1.3 HDCP Compliance Video Bandwidth Single-link 340MHz [10.2Gbps] Video Support Up to 4K2K @30 DTS-HD Master Audio, Dolby TrueHD Dolby Digital,...

  • Page 5: Connection Diagram

    User Manual PT-SP-HD12-4K 6. Connection Diagram...

  • Page 6: Panel Description

    User Manual PT-SP-HD12-4K 7. Panel Description Front Panel 1. Power LED: Lights on when device is ready 2. Signal LED:Signal LED indicator Rear Panel 3. HDMI IN: Connect to a HDMI input source 4. HDMI OUT1-2: HDMI outputs to HDMI displays [HDMI OUT1: EDID Learn Default] 5.

  • Page 7: Installation

    User Manual PT-SP-HD12-4K 8. Installation Broadcasts HDMI signal to 2 DVI displays! 1. Switch off all devices, including monitors. 2. Connect to the displays. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply.

  • Page 8: 10. Warranty

    10. Limited Warranty The SELLER warrants the PT-SP-HD12-4K 1x2 HDMI Distribution Amplifier with 4K2K & HDCP Support to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an autho- rized dealer.
