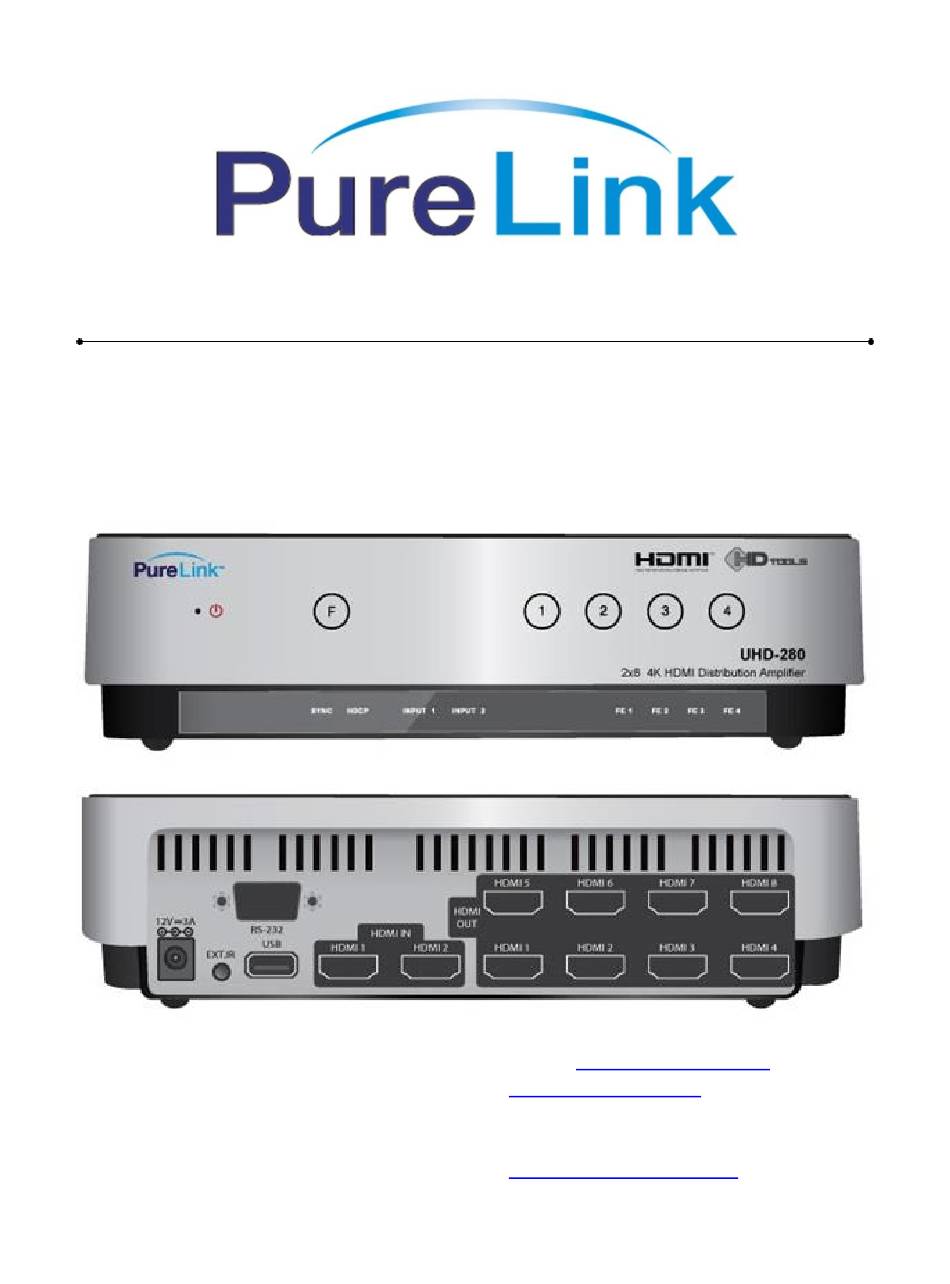

- Page 1 UHD-280 Owner’s Manual 2 x 8 4K HDMI Distribution Amplifier PureLink E-mail: info@purelinkav.com 535 East Crescent Avenue www.purelinkav.com Ramsey, NJ 07446, USA Tel: 201.488.3232 For technical support, contact: Fax: 201.621.6118 support@purelinkav.com...
-
Page 2: Table Of Contents
Table of Contents 1-1 Package Contents 1-2 General Specification 1-3 Operation and Reliability Specifications 1-4 Main Features 1-5 Operation Guide 1-6 Mechanical Specification p.12 1-8 Warranty Information p.14 1-9 Troubleshooting p.15... -
Page 3: Package Contents
PureLink by Dtrovision 1-1 Package Contents Please make sure all of the following items are included in the package: 1) UHD-280 Unit 2) DC 12V 3A Power supply adapter 3) Owner’s Manual 4) Remote controller 5) IR extension cable... -
Page 4: General Specification
PureLink by Dtrovision 1-2 General Specification Welcome! Congratulations on your purchase of the PureLink UHD-280 2 x 8 4K HDMI Distribution Amplifier. This manual contains information that will assist you in installing and operating the product. PureLink UHD-280 2x8 4K HDMI distribution amplifier is designed to distribute two HDMI/DVI digital signals into multiple monitors without any degradation of original signal quality or distortion of the image. - Page 5 PureLink by Dtrovision Power DC +12V , 3A Dimension (WxDxH) 8.39” x 8.39” x 2.36” (213 x 213 x 60 mm) Weight 2 lbs. (0.75 kg) Frequency bandwidth: 10.2 Gbps Supporting Graphic Resolution: Supports all standard display resolutions up to UHD...
-
Page 6: Operation And Reliability Specifications
PureLink by Dtrovision 1-3 Operation and Reliability Specification 1. Operating Environment Temperature : 32F ~ 140F (0℃~ 60℃) Humidity : 10% ~ 80% Altitude : 3,000m Max. 2. Transit Environment Temperature : -13F ~ 140F (-25℃~ 60℃) Humidity : 5% ~ 95% Altitude : 15,000m Max. -
Page 7: Main Features
2300ft using our fiber optical HDMI cables. 3. 4K/UHD support UHD-280 is consisting of HDMI input and output ports, and it is conforms to HDMI 1.4 standard. Support Full 3D and 4K2K@60Hz (YCbCr 4:2:0) video, and 12 bit deep color & Full HD 4. -
Page 8: Operation Guide
8. Turn on your video source Input Switching Two active sources can be connected to the UHD-280 at the same time. All outputs image will be mirrored output of one of the input at a time. There are three ways to switch inputs. - Page 9 PureLink by Dtrovision EDID Management PureLink UHD-280 provides Auto EDID management system; easy and fail safe way to handle EDID, via pre-loaded factory default 1080p 2ch and EDID emulation. What's EDID? Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a Video source.
- Page 10 PureLink by Dtrovision Factory EDID library 720p@50/60Hz, 2 Ch PCM audio Factory EDID library 1080i@50/60Hz, 2 Ch PCM audio Factory EDID library 1080p@50/60Hz, 2 Ch PCM audio Factory EDID library 4K@30Hz, 2 Ch PCM audio How to set EDID? There are three ways.
- Page 11 This section is designed for programmers who wish to create their own control programs using the command code. UHD-280 provides a simple character stream control used by external control devices attached to a PureLink device. Command codes are used primarily for control, during system installation, setup, and for diagnostic purposes.
-
Page 12: Mechanical Specification
PureLink by Dtrovision 1-6 UHD-280 Mechanical Specification UHD-280 Dimension: 8,39” x 8.39” x 2.36” (213 x 213 x 60 mm), 2 lbs (0.75 kg) <Angle View> <Front View> - Power Status Indicator F – Function button 1 – Input 1 select button & used for EDID function 2 –... - Page 13 PureLink by Dtrovision <Rear View> HDMI In – HDMI 1 - 2 inputs HDMI Out – HDMI 1 – 8 outputs RS232 – for RS232 control USB – for firmware update EXT.IR – IR extension port...
- Page 14 1-8 Warranty 3 (three) Year Warranty Dtrovision warrants this PureLink UHD-280 to be free from defects in workmanship and materials, under normal use and service, for a period of two (3) year from the date of purchase from Dtrovision or its authorized resellers.
-
Page 15: Troubleshooting
To extend beyond 20ft, please use fiber optical HDMI extension cables such as PureLink EZ series. 3. Use high quality HDMI cables. 4. If you are using computers, try other refresh rate settings. - Page 16 PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
