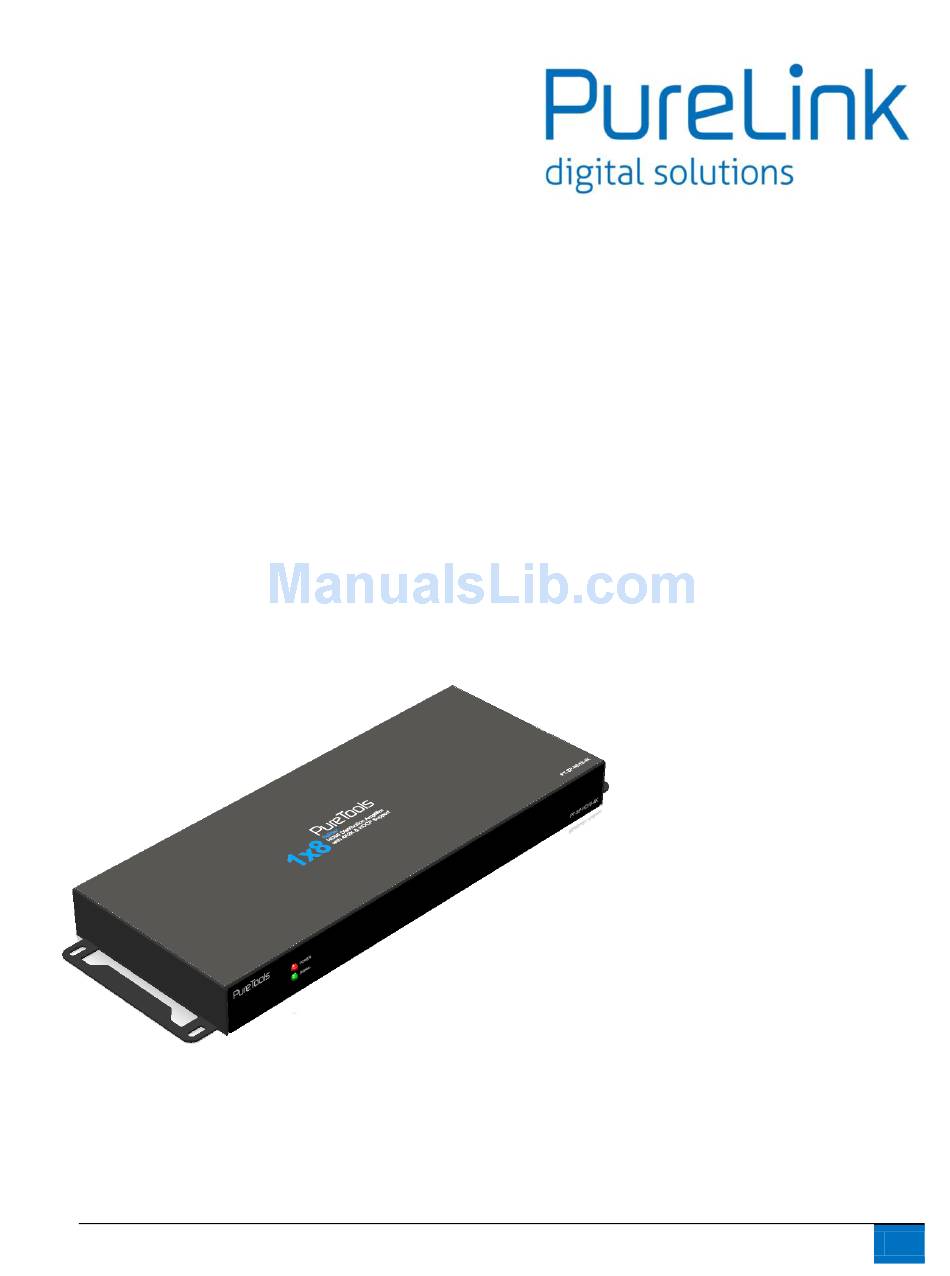

- Page 1 1x8 HDMI Distribution Amplifier with 4K2K & HDCP Support User’s Guide Models PT-SP-HD18-4K Designed in Germany Made in Taiwan © 2010 PureLink GmbH All rights reserved. www.purelink.de...
-
Page 2: Table Of Contents
Section 1: Getting Started ........................3 Safety and Notice ........................3 Introduction ..........................4 Package Contents ........................4 Before Installation ........................4 Panel Description ........................5 Installation ..........................6 Notice ............................. 6 Section 2: Specifications ......................... 7 Section 3: Limited Warranty ........................8 www.purelink.de... -
Page 3: Section 1: Getting Started
Please read all of these instructions carefully before you use the device. Save this manual for future reference. The PT-SP-HD18-4K 1x8 HDMI Distribution Amplifier with 4K2K & HDCP Support has been tested for conformance to safety regulations and requirements, and has been certified for international use. -
Page 4: Introduction
Introduction The PT-SP-HD18-4K 1x8 HDMI Distribution Amplifier with 4K2K & HDCP Support provides the most cost effective and advanced HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 8 different locations without losing quality. -
Page 5: Panel Description
7. +5V DC: Connect to the +5V DC 4A power supply unit 1. Automatic EDID learning will detect all the connected HDMI equipped monitors and analyze all the content of EDID. The EDID with minimal resolution support will be the reference EDID for incoming HDMI source players. www.purelink.de... -
Page 6: Installation
“File” button to direct to the firmware HEX or BIN file, power on the device and press “Program MCU” symbol to firmware update. Once update process is done, please power off the device and set the dip switch back to “1”. www.purelink.de... -
Page 7: Section 2: Specifications
EDID Mode selection Dimensions 243 x 98 x 25mm (L x W x H) Weight 880g Power Supply 5V 4A DC Power Consumption 10 Watt (max) Environmental Operating Temperature 0~40°C [32~104°F] Storage Temperature -20~60°C [-4~140°F] Relative Humidity 20~90% RH (no condensation) www.purelink.de... -
Page 8: Section 3: Limited Warranty
Section 3: Limited Warranty The SELLER warrants the PT-SP-HD18-4K 1x8 HDMI Distribution Amplifier with 4K2K & HDCP Support free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good...
