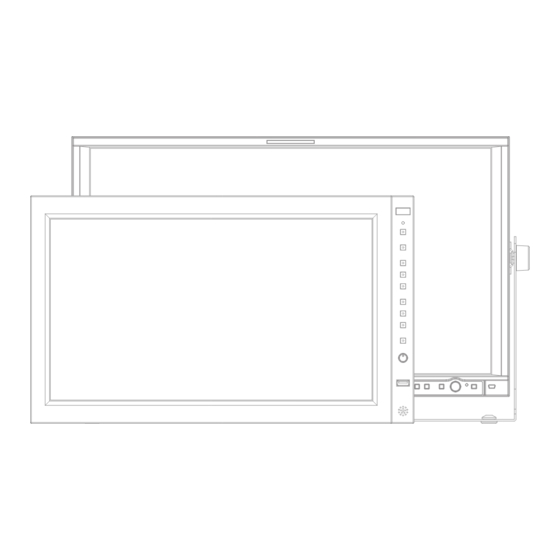

  • Page 1 Multi Format Broadcast LCD Monitor LVM-174W LVM-212W...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] COLOR [3] MARKER [4] GPI/UMD [5] WAVEFORM [6] AUDIO [7] DSIPAY & SET 6. Firmware Upgrade & Color Calibration 7.

  • Page 4: Caution

    1. Caution Always use set voltage. AC 100 ~ 240V If any of the following conditions occurs, • ● ● (1.2A/50~60Hz), DC 24V (MAX 6A) unplug the power cord from the AC outlet, and request a qualified service person to •...
  • Page 5 1. Caution • When mounting the product on a wall or • When relocating the product placed on a ceiling, be sure to install the product cart, it must be moved with the utmost care. according to the method recommended by Sudden stops, excessive force and uneven the manufacturer.

  • Page 6: Main Features

    2. Main Features LVM-174W/212W Monitor contains the following features. Compatible with various SDI signals Knob Control ● ● ● ● - Easy to adjust user configuration using the formats (SD/HD/3G) control Knob on the front of the monitor. - This product is compatible with...

  • Page 7: Controls & Functions

    3. Controls & Functions LVM-174W : Front TALLY POWER SOURCE SCAN ASPECT MARKER MENU/EXIT UP/DOWN ENTER SPEAKER Knob Control [SOURCE] Button ● ● ● ● - Easy to adjust user configuration using the - Used to select Input Signal. control Knob on the front of the monitor.
  • Page 8 3. Controls & Functions LVM-174W : Front [ASPECT] Button/Lamp [UP/DOWN/ENTER] Knob ● ● ● ● - Used to change the display various ratio. - Used to move within the menu when OSD - Activates in order of [16:9]-[4:3]-[2.35:1]- menu is activated and is also used to [1.85:1]-[15:9]- [16:10]-[AUTO]-[16:9].
  • Page 9 3. Controls & Functions LVM-212W : Front TALLY SPEAKER ANALOG SDI-A SCAN MARKER BLUE ONLY MENU/EXIT POWER DIGITAL SDI-B ASPECT H/V DLY. INFO. DOWN/UP/ENTER [TALLY] Lamp [DIGITAL] Button/Lamp ● ● ● ● - Tally lamp that can be toggled in green or - Used to select desired Digital input.
  • Page 10 3. Controls & Functions LVM-212W : Front [F1][F2][F3] [F4][F5] button/lamp [INFO.] Button ● ● ● ● - This Functions button is used to activate the - Displays the current function and setting of feature selected in [F1]~[F5] Button. the monitor. * See the section “8.
  • Page 11 3. Controls & Functions LVM-174W : Rear CVBS1/Y/G/S-Y CVBS2/Pb/B CVBS3/Pr/R/S-C DVI-I HDMI SDI-A SDI-B SDI-OUT AUDIO-OUT AUDIO-IN AC IN & RS422-OUT POWER S/W RS422-IN DC IN REMOTE LVM-212W : Rear CVBS1/Y/G/S-Y CVBS2/Pb/B CVBS3/Pr/R/S-C DVI-I HDMI SDI-A SDI-B SDI-OUT AUDIO-OUT AUDIO-IN RS422-OUT AC IN &...
  • Page 12 3. Controls & Functions Rear CVBS1/Y/G/S-Y (BNC) IN/OUT LAN (RJ-45) ● ● ● ● - Signal input terminal used to feed the - Used to control the monitor with protocol monitor Composite1, RGB G, Component Y, provided by TVLogic or Network and S-Video Y signals.

  • Page 13: Menu Tree & Adjustment

    4. Menu Tree & Adjustment [1] Menu Construction [3] Menu Control Sequence This Picture is the menu structure for the 1. Press MENU button to activate the OSD ● ● menu on the screen. product 2. Move to a desired sub-menu with the UP/ DOWN button.

  • Page 14: Menu Operations

    5. Menu Operations [1] Picture [1] Picture(DVI Analog) Brightness Brightness ● ● ● ● - Used to set the brightness(=offset) level from - Used to set the brightness(=offset) level from -100 to 100. -100 to 100. Contrast Contrast ● ● ●...

  • Page 15: Color

    5. Menu Operations [1] Picture(DVI Analog) [2]Color Image Position Color Temp ● ● ● ● - Used to move position of the screen to the - Controls color temperature and allows left, right, up and down. instant access to preset color temperature settings.

  • Page 16: Marker

    5. Menu Operations [3] Marker Marker MARKER MAT ● ● ● ● - Used to activate the Marker function. - Used to set the darkness level outside of - Available marker types are OFF, 16:9, 4:3, 4:3 ON the MARKER area from OFF(transparent) to AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1 and 1.85:1 &...

  • Page 17: Gpi/Umd

    5. Menu Operations [4] GPI / UMD The selectable values are as follows : ● ● Menu Classifi- Settable Values cation NONE, ANALOG CHANNEL, HDMI CHANNEL, SDI-A/B CHANNEL TALLY RED, TALLY GREEN, BLUE ONLY, UNDERSCAN, ASPECT HVDELAY, 16:9 MARKER, 15:9 MARKER, 14:9 MARKER, This item activate/ deactivate the 13:9 MARKER, 4:3 MARKER, 4:3 ON...
  • Page 18 5. Menu Operations [4] GPI / UMD UMD Display (Under Monitor Display) ● ● - Used to set UMD,ANC and Dynamic UMD. - Available modes are OFF, UMD, ANC, D-UMD(S-8C), D-UMD(S-16C) and D-UMD(D-8C). * UMD : Displays user customized 8 characters on screen.
  • Page 19 - Tally type configuration setting in D-UMD(D- 8C), UMD Display. - Configuration values are DEFAULT and USER COLOR. * DEFAULT : Existing TV Logic operating system (VRT) * USER COLOR : User configuration settings on each TALLY color type. - TALLY1 COLOR ~ TALLY4 COLOR are activated when USER COLOR is selected.
  • Page 20 5. Menu Operations [4] GPI- TALLY 1~4 COLOR ADDITIONAL INFORMATION <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off)
  • Page 21 5. Menu Operations Tally Type - Default ● ● - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1...

  • Page 22: Waveform

    5. Menu Operations [4] GPI / UMD [5] Waveform IP ADDRESS Waveform Intensity ● ● ● ● - Used to set the IP address connected to a - Used to control the brightness of the Monitor. WAVEFORM/VECTOR display. - Available values are between 1 ~ 63. The higher the number the brighter the SUBNET MASK ●...
  • Page 23 5. Menu Operations [5] Waveform Line waveform Luma(Y’) Zone Adjust ● ● ● ● - Used to select whether the entire data or - Used to set the Y’ level to be colored Yellow, one line data will be displayed on the Pink and Cyan in [Color Pattern] mode, or to WAVEFORM/VECTOR.
  • Page 24 5. Menu Operations [5] Waveform C Min ● ● - Used to set the minimum chroma(C’) level from 0 to 255. - Pixels with values exceeding the min C’ level will blink in the screen, and displayed as red on the Waveform. Y Picture Blink ●...

  • Page 25: Audio

    5. Menu Operations [6] Audio Level meter reference ● ● - Display the default audio level meter value, Available options are -18dB and -20dB. - Audio level meter within selected value turns to green and exceeded audio level is displayed in yellow. - Audio level exceeding -4dB is displayed in red.

  • Page 26: Dsipay & Set

    5. Menu Operations [7] Display & Set Firmware Version ● ● - Displays current firmware version. Serial Number ● ● - Displays the serial number of the monitor. System Default ● ● - Used to initialize OSD values to factory default.
  • Page 27 5. Menu Operations [7] Display & Set TimeCode Enable ● ● - Used to set the time code among OFF, VITC and LTC. Focus Assist ● ● - Focus Assist helps the shooters to easily find out the exact area in the picture with good focus, simply by adding colors on the shape or boundaries of the object in the picture.
  • Page 28 5. Menu Operations [7] Display & Set Color calibration ● ● - Used to support Auto Color calibration without PC just by connecting USB port of the monitor and Color Probe(K-10, etc) directly. * See section “6. Firmware Upgrade & Color Calibration”...

  • Page 29: Firmware Upgrade & Color Calibration

    6. Firmware Upgrade & Color Calibration [1] Firmware Upgrade The USB portable storage device (Thumb - The [S/W upgrade start] activates when the ● ● USB portable storage device connection is drive) is needed for F/W Upgrade. completed. Select the [Display&Set ] menu to activate ●...
  • Page 30 6. Firmware Upgrade & Color Calibration [2] Color Calibration The K10-Probe(USB) is needed for Color - After [Color calibration start] is selected, the ● ● message window comes on. Select the [Yes] Calibration. to proceed the Uprgrade. Select the [Display&Set ] menu to activate ●...

  • Page 31: Button Functions

    7. Button Functions(LVM-174W) [1] Source Input Button The LVM-174W supports various input ● ● signals. 1. Press the [SOURCE] button on the front of the monitor and OSD menu is activated as picture to the left. Use the Knob to move to desired Input signal and press the Knob to select the Input signal.
  • Page 32 7. Button Functions(LVM-212W) [1] Analog Input Button [2] HDMI Button The LVM-212W supports various Analog The LVM-212W supports HDMI/DVI Digital ● ● ● ● input signals. input signals. 1. Press the [HDMI] button on the front of the monitor and OSD menu is activated as picture to the left.

  • Page 33: Other Functions

    2. Use the Knob to move to desired function and press the Knob to select. 3. Once the function is set, press the Function button(F1~F5) to activate the function. * LVM-174W : [F1] ~ [F3] LVM-212W : [F1] ~ [F5] Multi Format LCD Monitor 33...
  • Page 34 8. Other Functions [3] Scan This product supports various scan modes. - 2:1 SCAN : Magnifies the original image two ● ● times. This feature is available only when the Press [SCAN] button on the front of the ● ● size of the original image is ½...
  • Page 35 # To adjust the 16:9 aspect ratio of 1920X1080 resolution into 2.35:1 aspect ratio, adjust the - Control range for width : width and height as LVM-174W : 1366X582 / LVM-174W : Min[100] ~ Max[1366] LVM-212W : 1920X817. LVM-212W : Min[100] ~ Max[1920]...
  • Page 36 8. Other Functions [5] Waveform / Vectorscope Waveform / Vector VectorScope ● ● ● ● - This function sets the Waveform and - Displays the color components ‘B-Y’ and ‘R-Y’ Vectorscope. of the input signals onto the X-Y axis. - Activates in order Off, Waveform, - Two different types of Vetorscopes are Vectorscope, Waveform wide, Waveform displayed according to SD or HD input...
  • Page 37 * 1080p : Min 42, Max 1121 - Control range for HDMI/Analog signal varies according to the output resolution of the signal. * LVM-174W : Min 0, Max 768 * LVM-212W : Min 0, Max 1080 <ZOOM OFF> * Selected line is indicated on the screen.
  • Page 38 8. Other Functions [8] Luma(Y') Zone Check Color Pattern Type Zebra Pattern Type ● ● ● ● - Displays the Luma(Y’) level of the input - Displays the pixels with designated Luma(Y’) image in colors. levels with zebra pattern. - Y’ ≥ 100% : Pixels with higher Y’ level than - Y’...
  • Page 39 8. Other Functions [9] Focus Assist [10] Range Error Focus Assist function assigns a color to Pixels with Y’ or C’ levels exceeding the ● ● ● ● the pixels in the shape or boundary area designated levels of Y MAX, Y MIN, C MAX of the image to inform the user to make and C MIN shall blink.
  • Page 40 8. Other Functions [11] Internal Pattern [12] Info. Button (LVM-212W) Displays internally generated test This feature displays the current setting ● ● ● ● patterns. of the function and status. Press the [Info.] button on the front of the ● ●...

  • Page 41: Dvi / Hdmi Support Resolution

    9. DVI / HDMI Support Resolution [1] DVI / HDMI Support Resolution (LVM-174W) DVI-ANALOG mode supports the following modes : ● ● Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768...
  • Page 42 9. DVI / HDMI Support Resolution [1] DVI / HDMI Support Resolution (LVM-212W) DVI-ANALOG mode supports the following modes : ● ● Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz...

  • Page 43: Product Specifications

    10. Product Specifications LVM-174W Size 16.84” Resolution 1366 X 768 (16:9) Pixel Pitch 0.273(H) X 0.273(V) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 280 cd/ m (Center)
  • Page 44 10. Product Specifications LVM-212W Size 21.5” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.248(H) X 0.248(V) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 365 cd/ m (Center) Contrast Ratio 1000 : 1 Display Area...

  • Page 45: Optional Accessories

    10. Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch Multi Format LCD Monitor 45...
  • Page 46 MEMO 46 Multi Format LCD Monitor...
  • Page 48 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
