TV Logic LUM-310A Operation Manual

Multi format 4k lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format
4K LCD Monitor
LUM-310A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-310A and is the answer not in the manual?

Questions and answers

Related Manuals for TV Logic LUM-310A

Summary of Contents for TV Logic LUM-310A

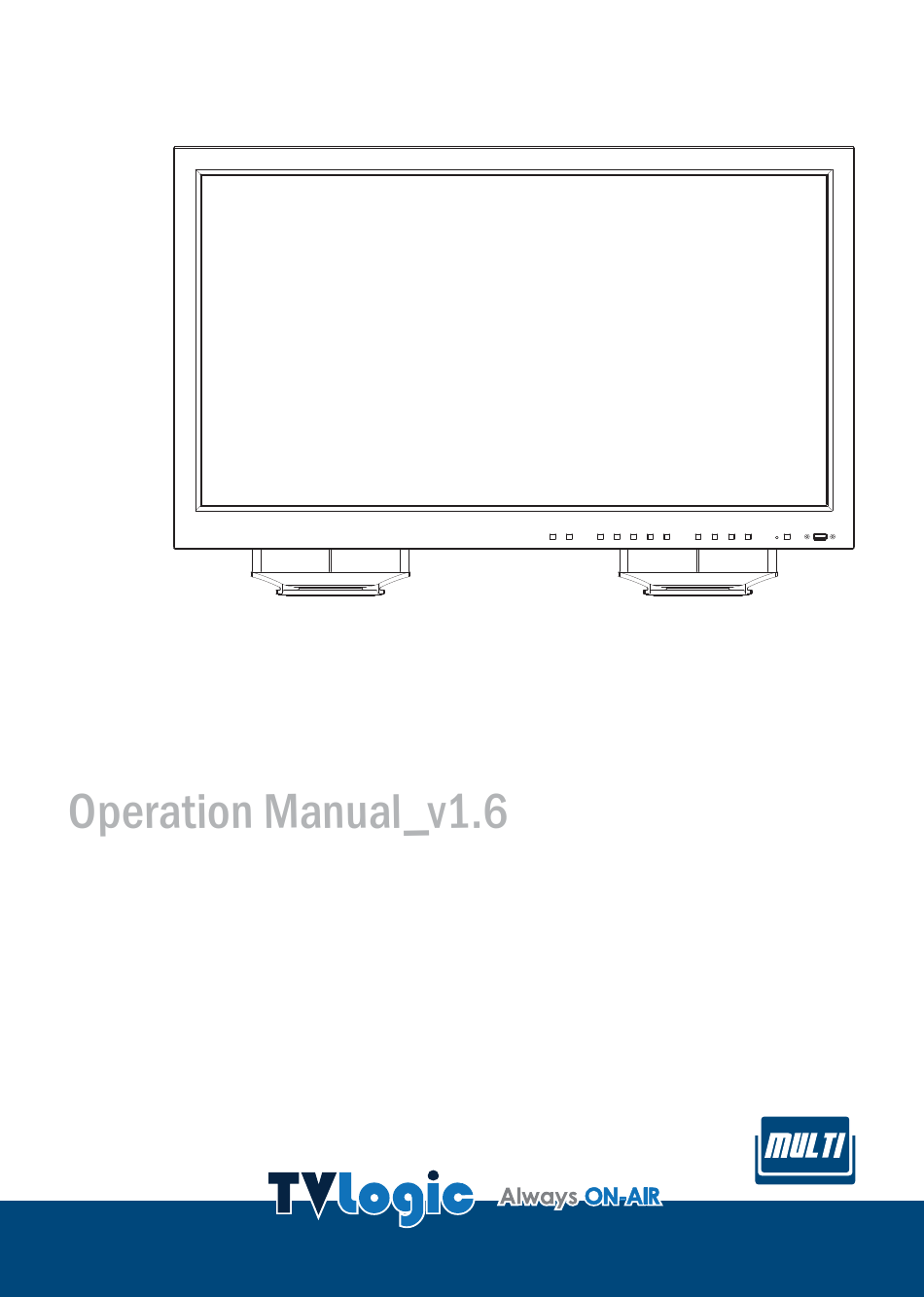

  • Page 1 Multi Format 4K LCD Monitor LUM-310A...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] GPI [5] MARKER [6] F.KEY [7] AUDIO [8] SYSTEM [9] INFORM. 6. Button Functions 7. VIDEO Support Resolution 8.

  • Page 4: Caution

    1. Caution • • If any of the following conditions occurs, unplug Always use set voltage. ● AC 100 ~ 240V the power cord from the DC outlet, and request ● a qualifi ed service person to perform repairs. DC 24V ●...
  • Page 5 1. Caution • • When mounting the product on a wall or ceiling, • • Sudden stops, excessive force and uneven be sure to install the product according to the fl oor surface can cause the product to fall from method recommended by the manufacturer.

  • Page 6: Main Features

    2. Main Features LUM-310A Monitor contains the following features : Compatible with various SDI signal Ethernet & USB support ● ● formats - Supports Ethernet and USB connection for - This product is compatible with various SDI program download and monitor control.

  • Page 7: Controls & Functions

    3. Controls & Functions LUM-310A : FRONT F5/BLUEONLY MENU F4/MARKER DOWN F3/ASPECT F2/SCAN ENTER F1/MODE POWER HDMI LUM-310A : REAR SDI-A IN/OUT SDI-B IN/OUT SDI-C IN/OUT SDI-D IN/OUT HDMI-A HDMI-B RS422-IN/OUT HDMI-C REMOTE HDMI-D AUDIO-OUT SDI-C IN/OUT SDI-D IN/OUT 4K LCD Monitor 7...
  • Page 8 3. Controls & Functions FRONT [HDMI] Button/Lamp [F2 ~ F5] Button/Lamp ● ● - Used to select HDMI input. Previously - Shortcut key for KEY MAPPING feature in the selected HDMI input selection displays. OSD MENU. Press the button to move through the modes: - Selectable options are as follows : UD MODE(4CH), UD MODE(HDMI-A 1CH), UD MODE(HDMI-B 1CH).
  • Page 9 3. Controls & Functions FRONT 5) H/V DELAY [MENU] Button ● - Used to check horizontal and vertical - Used to activate the OSD menu. sync simultaneously by moving the screen up/down/left/right. [DOWN/BRIGHT] Button ● - In this mode, the brightness of image - Used to move up through the menus during automatically increase for easy verifi cation the OSD menu activation and also to decrease...
  • Page 10 3. Controls & Functions REAR [REMOTE] (RJ-45) [Audio out] (PHONE JACK) ● ● - Provides connection to control equipment - Select the left/right Audio disembedded for external monitor control. signal output. - Features can be changed in the GPI section of OSD menu.

  • Page 11: Menu Tree & Adjustment

    You may control various functions using ● MENU, UP/DOWN and ENTER buttons on the bottom front of the monitor. Brightness Contrast Chroma Aperture Aspect 16:9 A. Current input signal B. Model Name(LUM-310A) C. Current input signal resolution 4K LCD Monitor 11...
  • Page 12 4. Menu Tree & Adjustment [5] Menu Tree Brightness GPI 1 ~ GPI 8 Contrast Group ID PICTURE Chroma Monitor ID Aperture Dhcp Aspect IP Address 3G Format Subnet Mask VIDEO Video Range Select Gateway Color Temp. Port No. Gain Red Apply Settings Gain Green Marker...
  • Page 13 4. Menu Tree & Adjustment [5] Menu Tree Key LED User Confi g Set F1 Key Mapping Lock Number F2 Key Mapping Lock Enable F.KEY F4 Key Mapping Osd Display F5 Key Mapping Osd Position Key Lock SYSTEM Internal Pattern Lv Meter Select Set Default Lv Meter Display...

  • Page 14: Menu Operations

    5. Menu Operations [2] VIDEO [1] PICTURE Brightness 3G Format Normal Mode Contrast Video Range Select Limited(Ex) Chroma Aperture Aspect 16:9 BRIGHT 3G FORMAT ● ● - Used to set the brightness(=off set) level from - Selects input format for SDI 3G A/B support -100 to 100.

  • Page 15: Color

    5. Menu Operations [3] COLOR Bias Red ● - Used to set Red Bias(or Off set, mainly aff ects COLOR TEMP 6500K GAIN RED on Black level) from -100 to 100. GAIN GREEN - Adjusts the red color of dark section. GAIN BLUE - Only available in CUSTOM 1/2/3 mode.
  • Page 16 5. Menu Operations [3] COLOR Back Light Color Space Rec-709(sRGB) Gamma Curve 2.40 Back Light ● - Used to control the backlight level of the LCD panel. - Available values are between MIN(0) and MAX(200). Higher value means brighter screen. Color Space ●...

  • Page 17: Gpi

    5. Menu Operations [4] GPI Menu GPI 1 Classifi - Settable Values GPI 2 HDMI GPI 3 Under Scan cation GPI 4 1:1 Scan GPI 5 Aspect NONE, GPI 6 H/V Delay GPI 7 Power On SDI CHANNEL, GPI 8 HDMI CHANNEL, UNDER SCAN, 1:1 SCAN,...
  • Page 18 5. Menu Operations [4] GPI IP Address ● - Used to set the IP Address connected to a Group ID Monitor. Monitor ID Dhcp IP Address 192.168.123. Subnet Mask Subnet Mask 255.255.128. ● Gateway - Used to set the SUBNET MASK connected to Port No.
  • Page 19 5. Menu Operations [5] MARKER Fit Marker ● - Used to activate or inactivate the Fit Marker Marker Center Marker function. Safety Area - When the Marker type is selected in the Fit Marker Marker menu, a border line of the Safety Marker Mat Marker Color White...

  • Page 20: Marker

    5. Menu Operations [5] MARKER User Marker H1 User Marker H2 User Marker V1 User Marker V2 User Marker H1 ● - Used to set the position of the fi rst horizontal marker line. - Displayed when MARKER menu is set to USER. User Marker H2 ●...

  • Page 21: F.key

    5. Menu Operations [6] F.KEY F4 Key Setting ● - User can select the function for the F4 button. Key Led F1 Key Mapping UD/Single Mode - Selectable functions: Under Scan, Aspect, F2 Key Mapping Under Scan Marker, Blue Only, H/V Delay, Freeze, Video F3 Key Mapping Aspect Range, Color Temp, and AUDIO LVM.

  • Page 22: Audio

    5. Menu Operations [7] AUDIO Input Select ● - This function is not supported. Lv Meter Select Lv Meter Display Pair Lv Meter Reference -18dB Volume ● Lv Meter Decay Time - Used to control the output volume of the Lv Meter Size Small Input Select...

  • Page 23: System

    5. Menu Operations [8] SYSTEM User Confi g Set User1 S/W Upgrade Lock Number xxxxxxxx S/W Upgrade Start Lock Enable --------- Fan Control Auto Osd Display 5 Sec Osd Position Center Set Default Battery Check Temperature 45°C Operating Time 100 Hours User Confi g Set S/W Upgrade ●...
  • Page 24 5. Menu Operations [8] INFORM. Scanning Method ● - Displays the Interlace/Progressive Board Version : 0101 0.01 8 Input Channel : SDI-A information of the Payload ID Byte 2. Input Confi g : HD-SDI SDI Payload ID : 85 C6 00 01 Bit Depth Video Standard : 1080 1.5G...

  • Page 25: Inform

    5. Menu Operations [9] INFORM. Board Version : 0101 0.01 8 Input Channel : HDMI-A AVI Infoframe Type : 02 Version/Length : 02/0D Data Byte 1~7 : 65 0C 38 00 00 00 15 Data Byte 8~13 : 00 01 00 0A 00 01 Input Channel ●...

  • Page 26: Button Functions

    6. Button Functions [1] F1(MODE) Button [2] SCAN Button F1(MODE) settings are as followed. Apply after F2~F5 Key Mapping ● ● This product supports various scan ● 1. Press the F1/MODE button on the front of modes. the monitor to change the MODE. Press the SCAN button on the front of the ●...

  • Page 27: Video Support Resolution

    7. Video Support Resolution Video Support Resolution Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160 (23.98/24/25/29.97/30p/Psf) HD-SDI YCbCr 4:2:2 10bit Quad link (4K) 4096x2160 (23.98/24/25/29.97/30p/Psf) Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160(50/59.94/60p) YCbCr 4:2:2 10bit 3840x2160 YCbCr 4:4:4 10/12bit (23.98/24/25/29.97/30/p/Psf)
  • Page 28 7. Video Support Resolution Video Support Resolution Input Signal Interfaces Signal Format (HDMI) RGB 4:4:4 8/10/12bit 3840x2160 YCbCr 4:4:4 8/10/12bit (23.98/24/25/29.97/30/50/59.94/60p) YCbCr 4:2:2 12bit 720x480(60p) RGB 4:4:4 8/10/12bit 720x576(50p) YCbCr 4:4:4 8/10/12bit 1280x720(60p) YCbCr 4:2:2 12bit 1920x1080(50/59.94/60p) HDMI Quad link(4K) 800x600@60Hz 1024x768@60Hz VESA...

  • Page 29: Product Specifi Cations

    8. Product Specifications LUM-310A Size 31” Resolution 4096 x 2160 (17:9) Pixel Pitch 0.1704(H) x 0.1704(W) mm Color Depth 1.07B colors (true 10bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 500 cd/ m...
  • Page 30 MEMO 30 4K LCD Monitor...
  • Page 32 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan-digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
