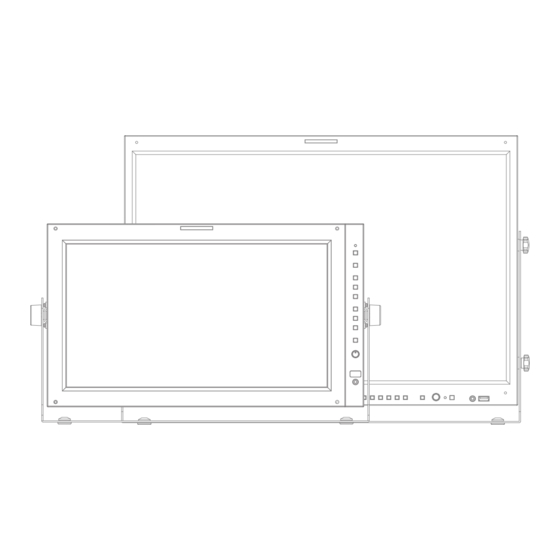

TV Logic LVM-241S Operation Manual

Multi format lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

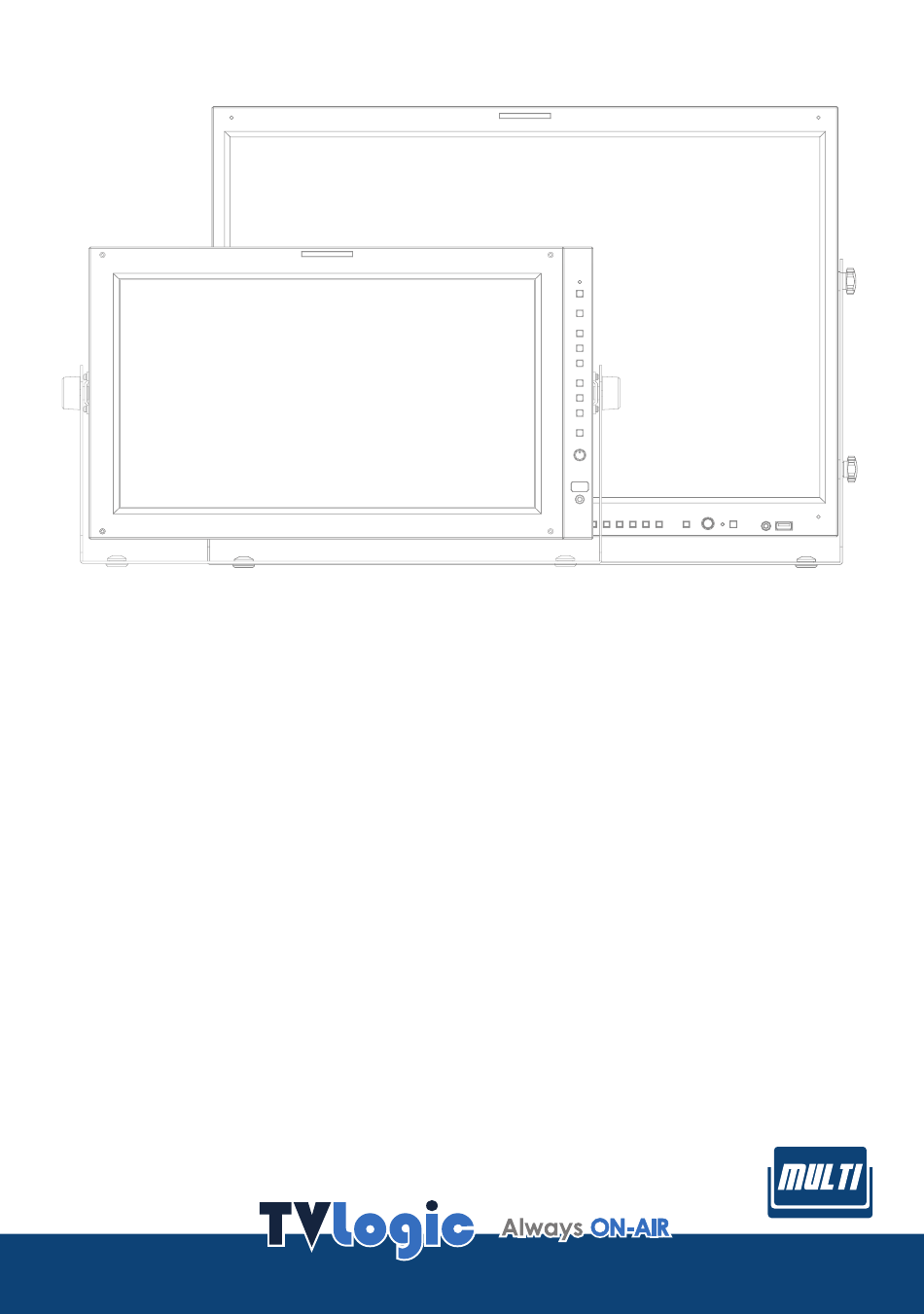

Multi Format
LCD Monitor
Operation Manual_v1.7
LVM-171S
LVM-241S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-241S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV Logic LVM-241S

Summary of Contents for TV Logic LVM-241S

  • Page 1 Multi Format LCD Monitor Operation Manual_v1.7 LVM-171S LVM-241S...

  • Page 3: Table Of Contents

    Contents .................. 1. Caution ................. 2. Main Features ..............3. Controls & Functions ............4. Menu Tree & Adjustment ..............5. Menu Operations ................[1] PICTURE ..............[2] VIDEO & DISPLAY ................[3] COLOR ..................[4] GPI ................[5] MARKER ..............

  • Page 4: Caution

    AC outlet, and request - DC 12V (LVM-171S) a qualified service person to perform repairs. - DC 12V/24V (LVM-241S) a . When the power cord or plug in damaged. All operating instructions must be read and b.
  • Page 5 1. Caution When mounting the product be sure to install The vents and other openings in the cabinet ● ● the product according to the method recomm are designed for ventilation. Do not cover or ended by the manufacturer. block these vents and openings since insufficient ventilation can cause overheating Unplug the power cord from the AC outlet and/or shorten the life of the product.

  • Page 6: Main Features

    TVLogic or a TSL protocol. - Stereo Audio Out & External Audio In through phone Jack. Power ● - The LVM-171S and the LVM-241S are powered by normal AC source as well as DC 12V (LVM- 171S) / DC 12V/24V (LVM-241S). Additional Features ●...

  • Page 7: Controls & Functions

    3. Controls & Functions TALLY LVM-171S : FRONT POWER INDICATOR POWER SOURCE SCAN ASPECT MARKER TALLY FUNCTION/ FUNCTION SELECT POWER INDICATOR MENU/EXIT POWER SOURCE KNOB(UP/DOWN/ENTER) SCAN USB(Firmware Update) ASPECT AUDIO OUT MARKER FUNCTION/ FUNCTION SELECT MENU/EXIT KNOB(UP/DOWN/ENTER) USB(Firmware Update) AUDIO OUT LVM-171S: REAR REMOTE RS-422 IN...
  • Page 8 3. Controls & Functions LVM-171S : FRONT [FRONT TALLY] Lamp [SCAN] ● ● - Tally lamp that can be toggled in green or red - Used to change the scan mode. using the REMOTE(RJ-45) port. [ASPECT] ● [POWER INDICATOR] Lamp - Used to change the various display ratio ●...
  • Page 9 3. Controls & Functions LVM-241S : FRONT TALLY TALLY SCAN ASPECT MARKER SCAN B.LIGHT ASPECT VIDEO RANGE MARKER INFO. B.LIGHT VIDEO RANGE MENU/EXIT INFO. KNOB(UP/DOWN/ENTER) POWER INDICATOR MENU/EXIT POWER KNOB(UP/DOWN/ENTER) POWER INDICATOR POWER AUDIO OUT USB(Firmware Update) AUDIO OUT USB(Firmware Update)
  • Page 10 3. Controls & Functions LVM-241S : FRONT [FRONT TALLY] Lamp [PBP] Button/Lamp ● ● - Tally lamp that can be toggled in green or red - Used to select PBP(Picture-by-Picture) using the REMOTE(RJ-45) port. function. - Selects the order of operation: [SOURCE] mode 1 ->...
  • Page 11 3. Controls & Functions LVM-241S : FRONT [SCAN] [POWER INDICATOR] Lamp ● ● - Used to change the scan mode. - Indicates condition and power status of unit. - Light turns off when the power is disconnected. [ASPECT] ● - Standby mode is indicated by a red LED light.
  • Page 12 3. Controls & Functions LVM-171S / LVM-241S : REAR [REMOTE] (RJ-45) [AUDIO IN] (Phone jack) ● ● - Provides connection to control - Audio input terminal for External Audio equipment(parallel switch) for external signal. monitor control. - Features of each pin can be changed.

  • Page 13: Menu Tree & Adjustment

    4. Menu Tree & Adjustment [1] Menu Construction [3] Menu Control Sequence This Picture is the menu structure for Menu control sequence follows the order ● ● LVM-171S/241S. below : 1. Press the MENU button to activate the OSD menu. 2.
  • Page 14 4. Menu Tree & Adjustment [4] MENU TREE BRIGHTNESS COLOR TEMP. CONTRAST GAIN RED CHROMA GAIN GREEN PICTURE APERTURE GAIN BLUE USER ASPECT H BIAS RED USER ASPECT V COLOR BIAS GREEN EHS(DE-INT) MODE BIAS BLUE FAST MODE COLOP COPY 3G FORMAT COLOR SPACE VIDEO RANGE SELECT...
  • Page 15 4. Menu Tree & Adjustment [4] MENU TREE MARKER LEVEL METER SELECT CENTER MARKER LEVEL METER DISPLAY SAFETY AREA LEVEL METER REFERENCE FIT MARKER LEVEL METER DECAY TIME MARKER MAT AUDIO LEVEL METER SIZE MARKER LEVEL METER POSITION MARKER COLOR VOLUME MARKER THICKNESS USER MARKER H1...

  • Page 16: Menu Operations

    5. Menu Operations [1] PICTURE USER ASPECT H ● - Used to adjust the horizontal size of the screen. - Activated only when the [SCAN] mode is set to [USER ASPECT]. USER ASPECT V ● - Used to adjust the vertical size of the screen. - Activated only when the [SCAN] mode is set to [USER ASPECT].

  • Page 17: Video & Display

    5. Menu Operations [2] VIDEO & DISPlAY 3G FORMAT ● - Used to select input format of SDI 3G A/B support. (NORMAL MODE(AUTO - A 422 10BIT_YCbCr 50/60P), A 444 10/12BIT_YCbCr, A 444 10/12BIT_RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_YCbCr, B 444 10/12BIT_RGB, B 422 12BIT_YCbCr, B 422 10BIT_YCbCr 50/60P).

  • Page 18: Color

    5. Menu Operations [2] COLOR BLACK LEVEL ● - The minimum black level of the video signal can be set differently depending on the performance of the monitor or the lighting environment. - Activates only in the User1/2/3 mode. COLOR GAMUT ●...
  • Page 19 5. Menu Operations [3] COLOR HLG SG ● - Used to set the System Gamma of the HLG mode. In Auto mode, the value of the System Gamma changes automatically according to the previously set peak luminance. When it is OFF, the value is set to default value of 1.2.
  • Page 20 5. Menu Operations [3] COLOR COLOR SPACE ● Color LVM-171S - Used to select the color output format. - Available values are REC-709(sRGB), COLOR Temp. 6500K LUT SMPTE-C, LUT EBU, LUT D-CINEMA and NATIVE COLOR. GAIN RED GAIN GREEN GAMMA ●...

  • Page 21: Gpi

    5. Menu Operations [4] GPI DHCP ● - Used to set DHCP. IP ADDRESS / SUBNET MASK / GATEWAY ● - Used to set the Network address. PORT NO ● - Used to set the port number. The default value is 10262. SETTING APPLY ●...
  • Page 22 5. Menu Operations [4] GPI UMD DISPLAY ● - Used to set the Input signal ID mode. - Available modes are OFF, UMD, ANC, D-UMD (S-8C), D-UMD(S-16C) and D-UMD(D-8C). - When the UMD menu is set, a black bar is created at the bottom of the monitor, text or tally data is displayed in it, and the image is displayed on the screen by adjusting the...
  • Page 23 5. Menu Operations [4] GPI UMD CHARACTER ● - Used to customize the characters for Under Monitor Display. - Available characters are Alphabets, numbers and special symbols. UMD CHARACTER COLOR ● - Used to set the character color of UMD. D-UMD TALLY TYPE ●...

  • Page 24: Marker

    5. Menu Operations [5] MARKER FIT MARKER ● MARKER LVM-171S - Used to activate or inactivate the Fit Marker function. MARKER - When the Marker type is selected in the Marker menu, a border line of the Safety CENTER MARKER Area will be SAFETY AREA EBU GRAPHIC 14:9...

  • Page 25: Function Key

    5. Menu Operations [6] FUNCTION KEY [7] WAVEFORM & FOCUS Waveform & Focus LVM-171S Function Key LVM-171S WAVE FORM DISPLAY KEY LED WAVE FORM INTENSITY F1 KEY MAPPING SCAN WAVE FORM TRANS. BLEND F2 KEY MAPPING ASPECT WAVE FORM COLOR WHITE F3 KEY MAPPING MARKER...
  • Page 26 5. Menu Operations [7] WAVEFORM & FOCUS SELECT LINE POSITION ● Waveform & Focus LVM-171S - Used to select specific Vertical Line for Waveform/Vectorscope. WAVE FORM DISPLAY - It is available when LINE WAVEFORM is WAVE FORM INTENSITY activated. WAVE FORM TRANS. - Use the Knob to select a desired vertical line.
  • Page 27 5. Menu Operations [7] WAVEFORM & FOCUS FOCUS ASSIST ● Waveform & Focus LVM-171S - Focus Assist helps the shooters to easily find out the exact area in the picture that WAVE FORM DISPLAY is in focus, simply by adding colors on the WAVE FORM INTENSITY boundaries of the subject in the picture.
  • Page 28 5. Menu Operations [7] WAVEFORM & FOCUS Y MAX ● Waveform & Focus LVM-171S - Used to set the maximum luma(Y’) level from 0 to 255. WAVE FORM DISPLAY - Pixels with values exceeding the max Y’ level WAVE FORM INTENSITY will blink in the screen, and display in red on WAVE FORM TRANS.

  • Page 29: Audio

    5. Menu Operations [8] AUDIO LEVEL METER SIZE ● AUDIO LVM-171S - Used to control the size of the Audio Level Meters. LEVEL METER SELECT - Available modes are SMALL, SMALL TRANS, NORMAL, NORMAL TRANS, LARGE and LEVEL METER DISPLAY UD MODE(SDI-4CH) LARGE TRANS.

  • Page 30: System

    5. Menu Operations [9] SYSTEM SW UPGRADE ● - Used to upgrade the firmware using the USB(Thumb drive). VERSION ● - Displays Mainboard, FPGA, GPU and App version. KEY LOCK NUMBER ● - Used to set a password for the monitor lock function.

  • Page 31: Button Functions

    6. Button Function [1] PBP(Picture-by-Picture) / PIP(Picture-in-Picture) PBP(PIP) Mode Select ● - Use the PBP button to change into PBP Screen. Available modes are as shown below. • In order to avoid confusion of terms, the PIP mode on the screen is collectively referred to as PBP. <PBP 1:1> <PBP LEFT RIGHT> <PIP> <PBP TOP BOTTOM> Screen Select ● - In PBP mode, use the [F1] button to select the desired display then control the desired function.
  • Page 32 6. Button Function [2] User Aspect Used to adjust the Width /Height display ● ratio. 1. Press the [SCAN] button on the front of the monitor to acticate the [USER ASPECT] mode. 2. Select the Picture-User Aspect menu to adjust the width and height size - Adjust the ratio using the Knob.
  • Page 33 6. Button Function [3] Waveform / Vector Scope Waveform Y Vector Scope ● ● - Displays the Luma(Y’) component of the - Displays the color components ‘B-Y’ and input signal into waveform. ‘R-Y’of the input signals onto the X-Y axis. - Two different types of Vetor Scopes are disp layed according to SD or HD input signals.
  • Page 34 6. Button Function [4] Line Select (Waveform / Vector Scope) Used to select specific Vertical Line for Waveform / Vector. ● - It is available when the Line Waveform is activated. - To activate this feature, go to [Waveform]- [Waveform/Vector]-[Line Waveform]-[Select Line Position] and use the Knob to select a vertical line.
  • Page 35 6. Button Function [5] Luma(Y’) Zone Check Color Pattern Type. Zebra Pattern Type. ● ● - Displays the Luma(Y’) level of the input - Displays the pixels with designated Luma(Y’) image in colors. levels with zebra pattern. - Y’ ≥ 100% : Pixels with higher Y’ level than - Y’...
  • Page 36 6. Button Function [6] Focus Assist [7] Range Error Focus Assist function assigns a color to the Pixels with Y’ or C’ levels exceeding the ● ● pixels on the boundaries of the image to designated levels of Y MAX, Y MIN, C MAX inform the user to achieve the best focus.

  • Page 37: Video Support Resolution

    7. Video Support Resolution [1] SDI MODE Input Signal Signal Foramt (SD SDI) Interfaces 720x487 SD SDI (59.94i) YCbCr 4:2:2 10bit single link 720x576 (50i) Input Signal Signal Format (3G SDI) Interfaces 1920x1080 (60p/59.94p/50p) YCbCr 4:2:2 10bit 3G-SDI (A/B) single link 1920x1080 (30/29.97/25/24/23.98/ RGB 4:4:4 10bit / 12bit 30sF/29.97sF/25sF/24sF/23.98sF)
  • Page 38 7. Video Support Resolution [3] DVI-ANALOG MODE Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz [4] DVI-DGITAL GRAPHIC MODE Resolution Frequency 640 X 480...

  • Page 39: Product Specifications

    8. Product Specifications LVM-171S Size 16.5” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.1905(H) X 0.1905(V) mm Color Depth 1.07B Viewing Angle H: 178 degrees / V: 178 degrees Luminance of white 450 cd/ m (Center) Contrast Ratio 1500 : 1 Display Area 365.8(H) X 205.7(V) mm 1 X DVI-I...
  • Page 40 8. Product Specifications LVM-241S Size 24” Resolution 1920 x 1200 (16:10) Pixel Pitch 0.270(H) x 0.270(W) mm Color Depth 1.07B Viewing Angle H: 178 degrees / V: 178 degrees 400 cd/m 2 (Center) Luminance of white Contrast Ratio 1,500 : 1 Display Area 518.4(H) x 324.0(V) mm...

  • Page 41: Optional Accessories

    9. Optional Accessories Gold-Mount RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch Multi Format LCD Monitor 41...
  • Page 42 MEMO 42 Multi Format LCD Monitor...
  • Page 44 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan digital 1-ro, Geumcheon-gu, Seoul, 08590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층 Mobile.
