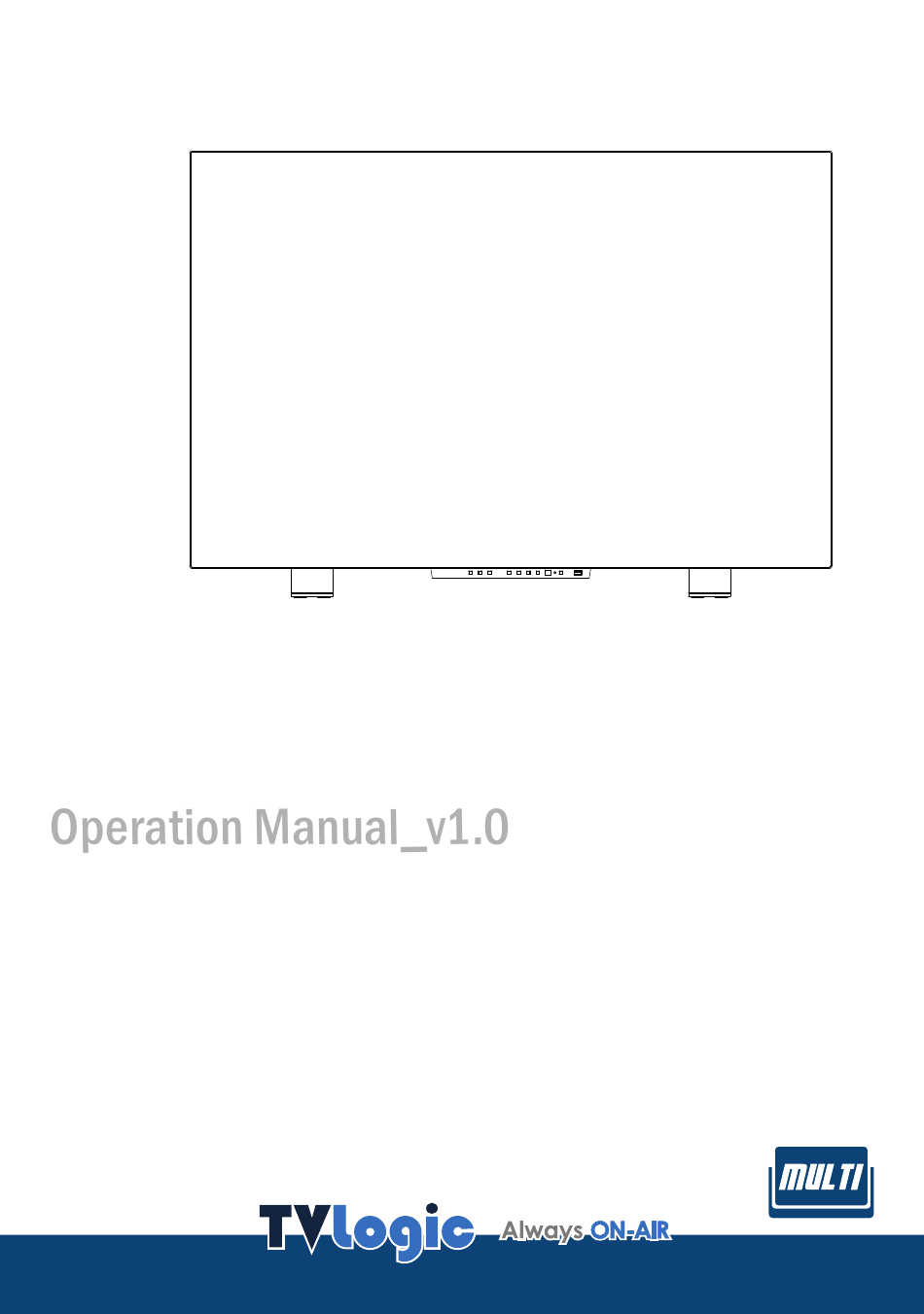

TV Logic LEM-550R Operation Manual

Multi format uhd/4k oled monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Multi Format
UHD/4K OLED Monitor
SDI
MODE
HDMI
MENU
DOWN
UP
ENTER
POWER
USB
LEM-550R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEM-550R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV Logic LEM-550R

Summary of Contents for TV Logic LEM-550R

  • Page 1 Multi Format UHD/4K OLED Monitor MODE HDMI MENU DOWN ENTER POWER LEM-550R...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] MARKER [5 ]GPI [6] WAVEFORM [7] NETWORK [8] AUDIO [9] SYSTEM 6. Firmware Upgrade 7. Video Support Resolution 8.

  • Page 4: Caution

    1. Caution Always use set voltage. • If any of the following conditions occurs, unplug ● AC 100 ~ 240V the power cord from the DC outlet, and request ● a qualified service person to perform repairs. • All operating instructions must be read and understood before the product is operated.
  • Page 5 1. Caution • When mounting the product be sure to • Sudden stops, excessive force and uneven install the product according to the floor surface can cause the product to fall from method recommended by the cart. the manufacturer. • The vents and other openings in the cabinet are designed for ventilation.

  • Page 6: Main Features

    2. Main Features LEM-550R Monitor contains the following features : Compatible with various SDI signal Additional features ● ● formats - Wide Viewing Angle, OSD user interface. - This product is compatible with various SDI signals - 480i, 576i, 1080i, 1080p, 1080psf.

  • Page 7: Controls & Functions

    3. Controls & Functions LEM-550R : FRONT MODE HDMI MENU DOWN ENTER POWER LEM-550R : REAR MODE HDMI MENU DOWN ENTER POWER AUDIO OUT RS-422 OUT SDI IN SDI IN SDI IN SDI IN 12G-SDI OUT HDMI IN RS-232 RS-422 IN...
  • Page 8 3. Controls & Functions FRONT [SDI] Button/Lamp [MENU] Button ● ● - Used to select SDI A/B input signal. - Used to activate the OSD menu. [MODE] Button/Lamp [UP] Button ● ● - Used to select the UD MODE. - Used to move up through the menus - Press the button to move through the during the OSD menu activation.
  • Page 9 3. Controls & Functions REAR [SDI INPUT x 4] (BNC) ~ AC IN ● ● - Signal input terminal for HD/SD SDI signal. - 100 ~ 240V AC 50/60Hz - The first and second SDI INPUT terminal supports up to 12G input. <Warning!!>...

  • Page 10: Menu Tree & Adjustment

    4. Menu Tree & Adjustment [1] Menu Organization [3] Menu Control Sequence The product may be controlled and set Menu Control sequence follows the order ● system-wise through OSD displayed on below: the screen. - Below is the layout of the product’s menu. 1.
  • Page 11 4. Menu Tree & Adjustment [4] MENU TREE BRIGHT GPI 1 ~ GPI 8 CONTRAST GROUP ID BACK LIGHT MONITOR ID PICTURE TIMECODE RS-422 BAUD FORCE PSF ENABLE 4K MODE TYPE WAVEFORM TEMP INTENSITY GAIN R LINE WAVEFORM GAIN G LINE SEL POS GAIN B DHCP...

  • Page 12: Menu Operations

    5. Menu Operations [1] PICTURE BRIGHT CONTRAST BACK LIGHT TIMECODE FORCE PSF AUTO 4K MODE 2 SAMPLE BRIGHT ● - Used to set the brightness(=offset) level from -100 to 100. CONTRAST ● - Used to set the contrast(gain) level from -100 to 100.

  • Page 13: Video

    5. Menu Operations [2] VIDEO EETF ● CAMLUT - Used to activate the EETF. Available HDR ENABLE modes are OFF and ON. HDR SELECT GAMUT BLACK LEVEL 0.000 ● - Used to select the type of GAMUT. PEAK LUM Available options are BT.709, EETF DCI-P3, BT.2020 and NATIVE.

  • Page 14: Color

    5. Menu Operations [3] COLOR BIAS R ● TEMP 6500K - Used to set Red Bias(or Offset, mainly GAIN R affects on Black level) from -128 to 127. GAIN G - Adjusts the red color of dark section. GAIN B - Only available in CUSTOM 1/2/3 mode.

  • Page 15: Marker

    5. Menu Operations [4] MARKER MARKER CENTER MARKER SAFETY AREA FIT MARKER MARKER MAT MARKER : 4:3 MARKER : 4:3 ● ● MARKER COLOR WHITE SAFETY AREA : 90% SAFETY AREA : 90% ● ● THICKNESS FIT MARKER : OFF FIT MARKER : ON ●...

  • Page 16: [5 ]Gpi

    5. Menu Operations [5] GPI The selectable functions for PIN 1~ PIN 6 PIN 1 NONE ● are as follows: PIN 2 SDI A PIN 3 SDI B Menu PIN 4 16:9 MAR Classifi- Settable Values PIN 5 15:9 MAR cation PIN 6 14:9 MAR...

  • Page 17: Waveform

    5. Menu Operations [6] WAVEFORM ENABLE TYPE INTENSITY LINE WAVEFORM LINE SEL POS ENABLE ● - Used to enable the WAVEFORM function. Available modes are OFF and ON. TYPE ● - Used to select the WAVEFORM type. - Available modes are OFF, WAVEFORM, VECTORSCOPE and WAVE_VECTOR.

  • Page 18: Network

    5. Menu Operations [7] NETWORK [8] AUDIO DHCP DHCP VOLUME IP (D) 192.168.101.156 AUD CH GR1 CH1+CH2 SUBNET 255.255.255.000 LVM TYPE GATEWAY 192.168.101.001 LVM SIZE PORT 10262 IP APPLY MAC ADDR XX:XX:XX DHCP VOLUME ● ● - Used to activate/deactivate the DHCP - Used to control the audio volume.

  • Page 19: System

    5. Menu Operations [9] SYSTEM DEFAULT SW UPGRADE ● USER CONFIG USER 1 - Used to upgrade the firmware using the USB (Thumb drive). KEY LED - Available options are CPU, FPGA. SDI OUT BY PASS When CPU or FPGA is selected, only each OSD DISPLAY CONTINUE program can be upgraded at a time.

  • Page 20: Firmware Upgrade

    6. Firmware Upgrade [1] FIRMWARE UPGRADE The USB(Thumb drive) which contains the ● F/W file is needed for Firmware Upgrade. Select the SW UPGRADE in the SYSTEM ● menu. 1. Connect the USB to the USB Slot on the front of the monitor. 2.

  • Page 21: Video Support Resolution

    7. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (12G SDI) 12G-SDI single link(4k) 3840x2160 (50/59.94/60p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (6G SDI) 6G-SDI single link(4k) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (3G_A SDI) 3G-SDI single link 1920x1080 (50/59.94/60p)
  • Page 22 7. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD SDI) 1920x1080 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit (50/59.94/60I) YCbCr 4:2:2 10bit HD SDI single link (25/29.97/30psf) YCbCr 4:2:2 10bit 1280x720 YCbCr 4:2:2 10bit (50/59.94/60P) Input Signal Interfaces Signal Format (HD-SDI) HD-SDI Quad link(4k) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit...

  • Page 23: Product Specifications

    8. Product Specifications LEM-550R Size 55” Resolution 3840 hor. by 2160 ver. Pixels, RWBG stripe arrangement Pixel Pitch 0.315 mm x 0.315 mm Color Depth 1.07 Billon colors Viewing Angle R/L 120 (min.), U/D 120 (min.) Luminance of white 750(HDR)/470(Peak)/140(Normal) cd/㎡ (Typ)
  • Page 24 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan-digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
